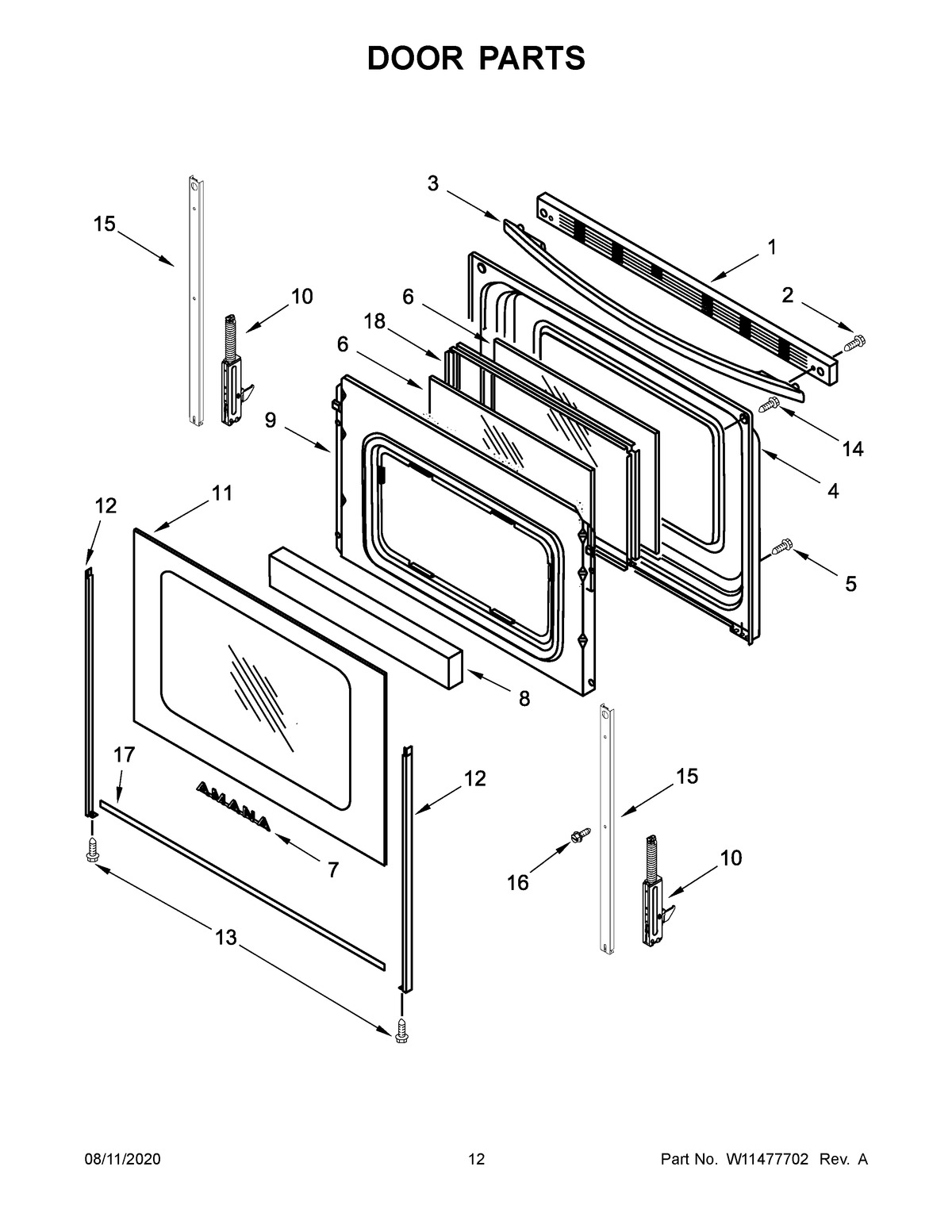

AGR6603SFB3 07 – DOOR PARTSadmin2025-04-26T12:27:32+00:00AGR6603SFB3 07 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | TRIM, TOP (BLACK) |
| 1A | TRIM, TOP (WHITE) |
| 2 | SCREW |
| 3A | HANDLE, DOOR (WHITE) |
| 3 | HANDLE, DOOR (BLACK) |
| 4 | LINER, DOOR |
| 5 | SCREW |
| 6 | GLASS, INNER |
| 7A | BADGE (WHITE) |
| 7 | BADGE (BLACK) |
| 8 | INSULATION, DOOR STRIP |
| 9 | RETAINER, INSULATION |
| 10A | HINGE, ACTIVE |
| 10 | HINGE, DOOR (PASSIVE) |
| 11A | GLASS, OUTER (WHITE) |
| 11 | GLASS, OUTER (BLACK) |
| 12B | TRIM, SIDE (WHITE (LEFT)) |
| 12C | TRIM, SIDE (WHITE (RIGHT)) |
| 12A | TRIM, SIDE (BLACK (RIGHT)) |
| 12 | TRIM, SIDE (BLACK (LEFT)) |
| 13 | SCREW |
| 14 | SCREW |
| 15 | DOOR STRAP |
| 16 | MAY W10031780 |
| 17A | TRIM, LOWER (WHITE) |
| 17 | TRIM, LOWER (BLACK) |
| 18 | FRAME, GLASS |
