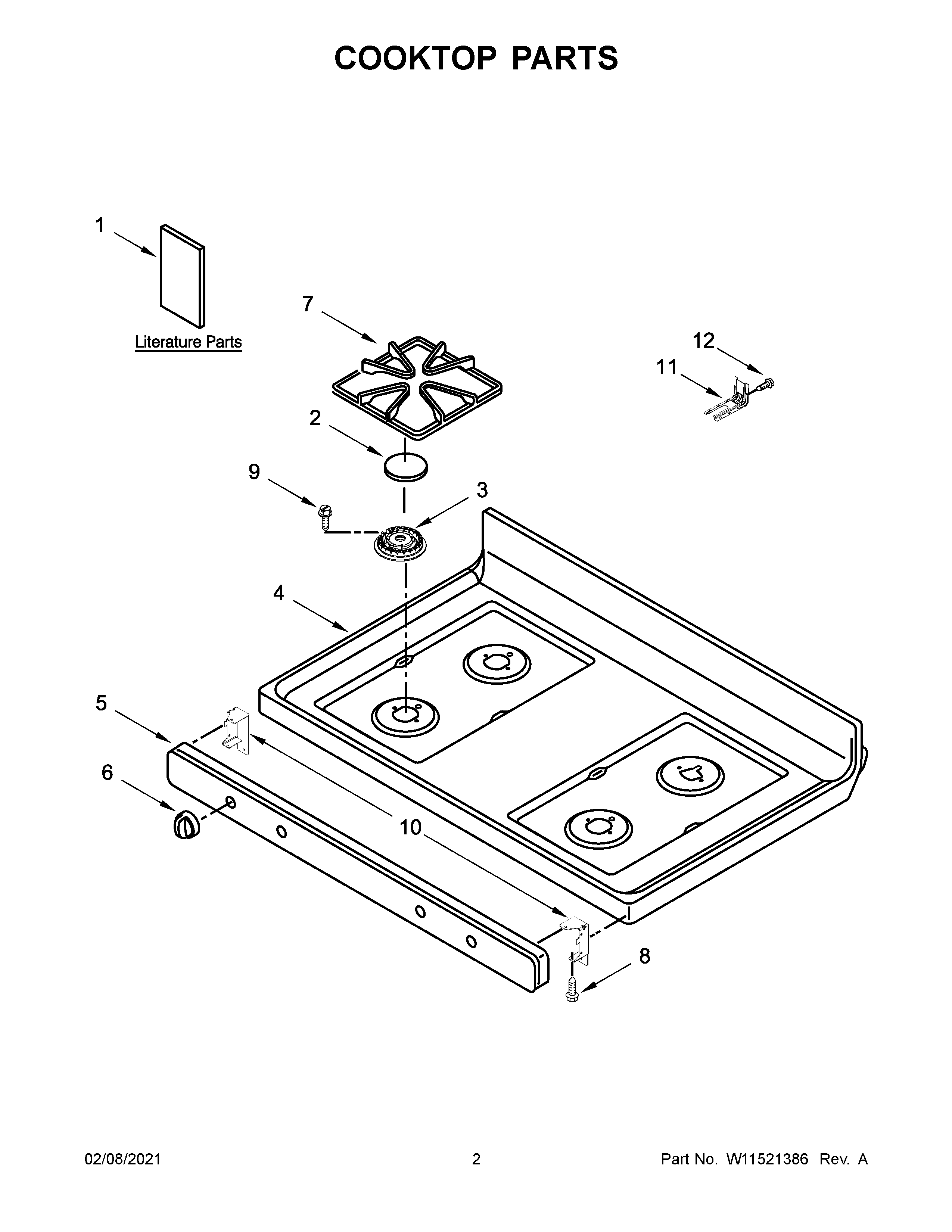

AGR6603SFB4 02 – COOKTOP PARTS
Written by
in
AGR6603SFB4 02 – COOKTOP PARTS
Products
Position
Product
NI
CABINET (NOT A SERVICEABLE PART)
NI
W10334923 Whirlpool Clip
NI
3196896 Whirlpool Clip
NI
CLAMP, WIRE
NI
W11453753 Whirlpool Wire Harness
NI
W11645866 Whirlpool Wire Harness
NI
3400964 Whirlpool Oven Clip
NI
16515 Whirlpool Clip
1
INSTALLATION INSTRUCTIONS
1A
USE & CARE GUIDE
1B
SHEET, TECH
1C
DIAGRAM, WIRING
2
W11455147 Whirlpool Surface Burner Cap
3A
W11435659 Whirlpool Burner Head
3
W11435630 Whirlpool Oven Burner Head
3B
W11435657 Whirlpool Burner Head
4
W11475519 Whirlpool Cooktop
5
8523855 Whirlpool Oven Manifold Panel
6
W11117407 Whirlpool Knob
7
W10915784 Whirlpool Grate Kit
8
WP3196557 Whirlpool Screw
9
W11241230 Whirlpool Screw
10
8523249 Whirlpool Oven Support Bracket
11
W11447673 Whirlpool Range Tip Anchor
12
SCREW, ANTI-TIP KIT
←
