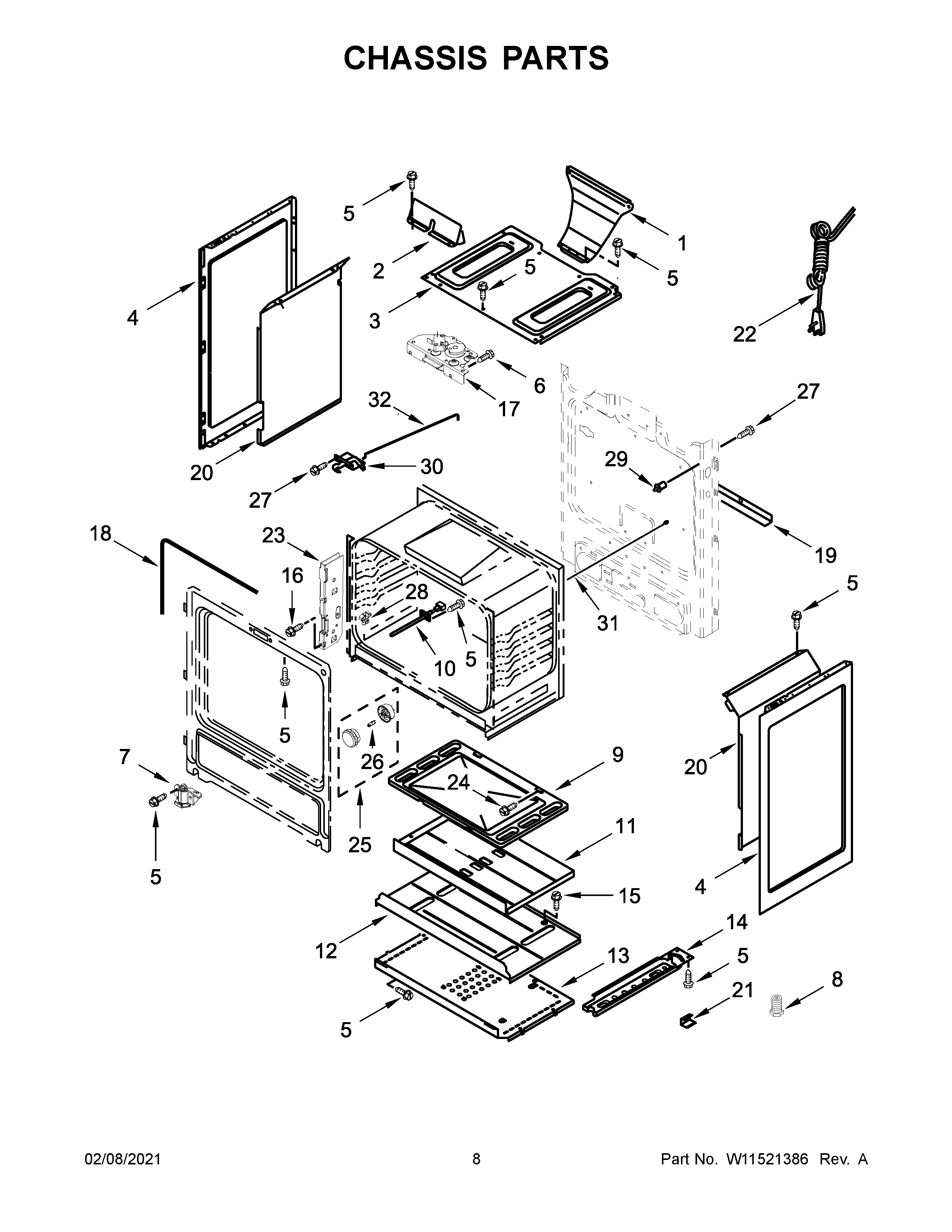

AGR6603SFB4 05 – CHASSIS PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11684915 Whirlpool Insulation
NI	W11688737 Whirlpool Insulation
1	W11457094 Whirlpool Oven Flue
2	WP8272747 Whirlpool Heat Shield
3	W11379351 Whirlpool Burner Box
4	W11730303 Whirlpool Side Panel
5	SCREW
6	WP3196557 Whirlpool Screw
7	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
8	WPW10058460 Whirlpool Appliance Levelling Leg
9	WP3195097 Whirlpool Oven Bottom
10	SENSOR-RANGE
11	8053967 Whirlpool Oven Heat Baffle
12	8053969 Whirlpool Heat Shield
13	8053968 Whirlpool Oven Heat Shield
14A	WPW10306546 Whirlpool Base Rail
16	W10777162 Whirlpool Screw
17	WPW10107820 Whirlpool Door Latch
18	W11542153 Whirlpool Door Gasket
19	W10435470 Whirlpool Brace
20A	W11379943 Whirlpool Retainer
20	W11379353 Whirlpool Retainer
21	W10137382 Whirlpool Clip
22	W11582239 Whirlpool Range Power Cord
23	W10647259 Whirlpool Hinge Receiver
24	W10379120 Whirlpool Screw
25	W11594170 Whirlpool Light Socket
26	BULB-LIGHT
27	W11169708 Whirlpool Screw
28	W10807823 Whirlpool Drawer Glide
29	WP9757262 Whirlpool Light Switch
30	WP9761013 Whirlpool Door Latch
31	W11370462 Whirlpool Door Rod
32	W10078370 Whirlpool Latch Rod
