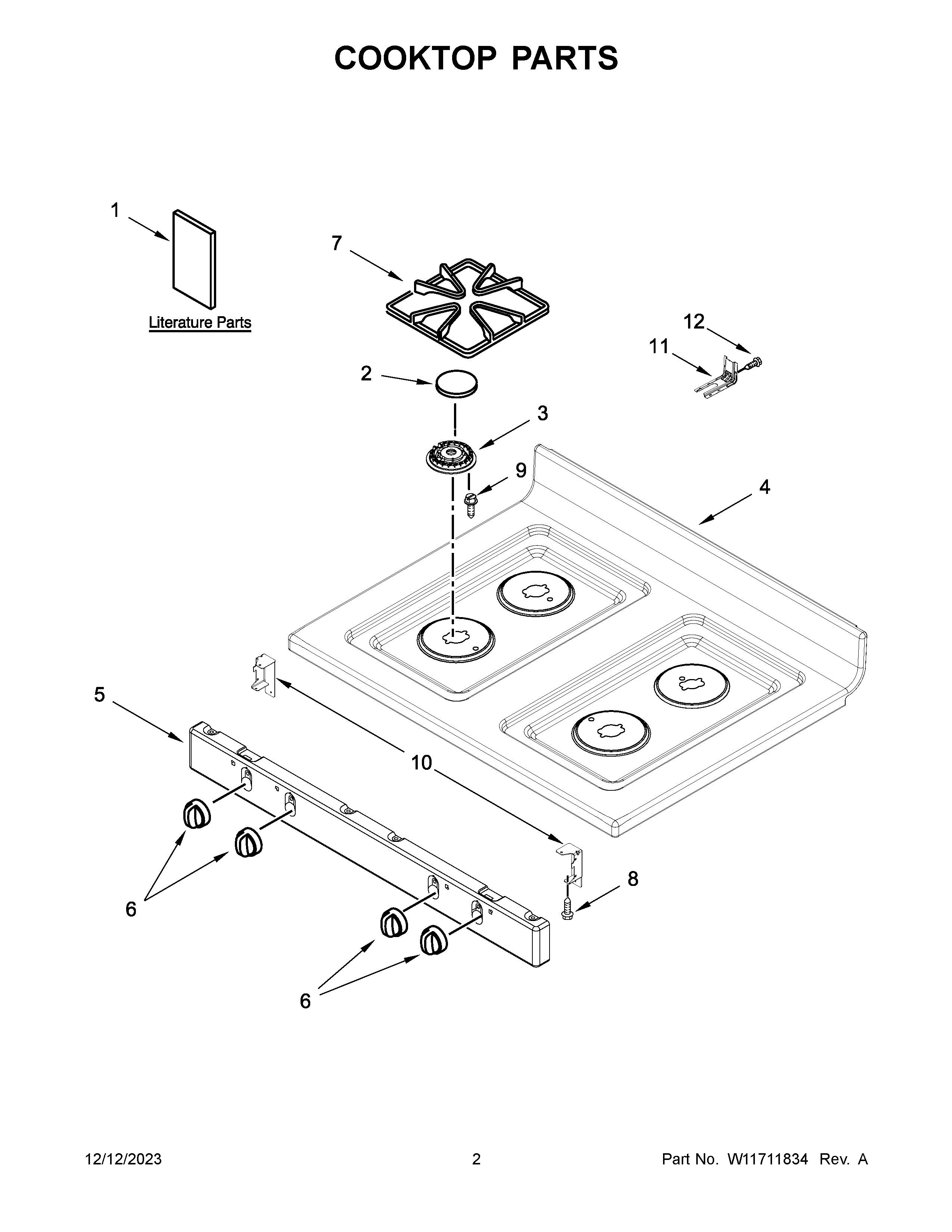

AGR6603SFB8 02 – COOKTOP PARTS

Products

Position	Product
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	CLAMP, WIRE
NI	3400964 Whirlpool Oven Clip
NI	16515 Whirlpool Clip
NI	W11645866 Whirlpool Wire Harness
NI	W11457167 Whirlpool Wire Harness
NI	W10334923 Whirlpool Clip
NI	3196896 Whirlpool Clip
1A	WIRING DIAGRAM
1B	QUICK START GUIDE
1	OWNERS MANUAL
2	W11455147 Whirlpool Surface Burner Cap
3	W11435630 Whirlpool Oven Burner Head
3A	W11435659 Whirlpool Burner Head
3B	W11435657 Whirlpool Burner Head
4	W11475519 Whirlpool Cooktop
4A	W11480487 Whirlpool Cooktop
5A	WP8523854 Whirlpool Manifold Panel
5	8523855 Whirlpool Oven Manifold Panel
6	KNOB, CONTROL (BLACK)
6A	W11620728 Whirlpool Knob
7	W10915784 Whirlpool Grate Kit
8	WP3196557 Whirlpool Screw
9	W11241230 Whirlpool Screw
10	8523249 Whirlpool Oven Support Bracket
11	W11447673 Whirlpool Range Tip Anchor
12	SCREW, ANTI-TIP KIT
