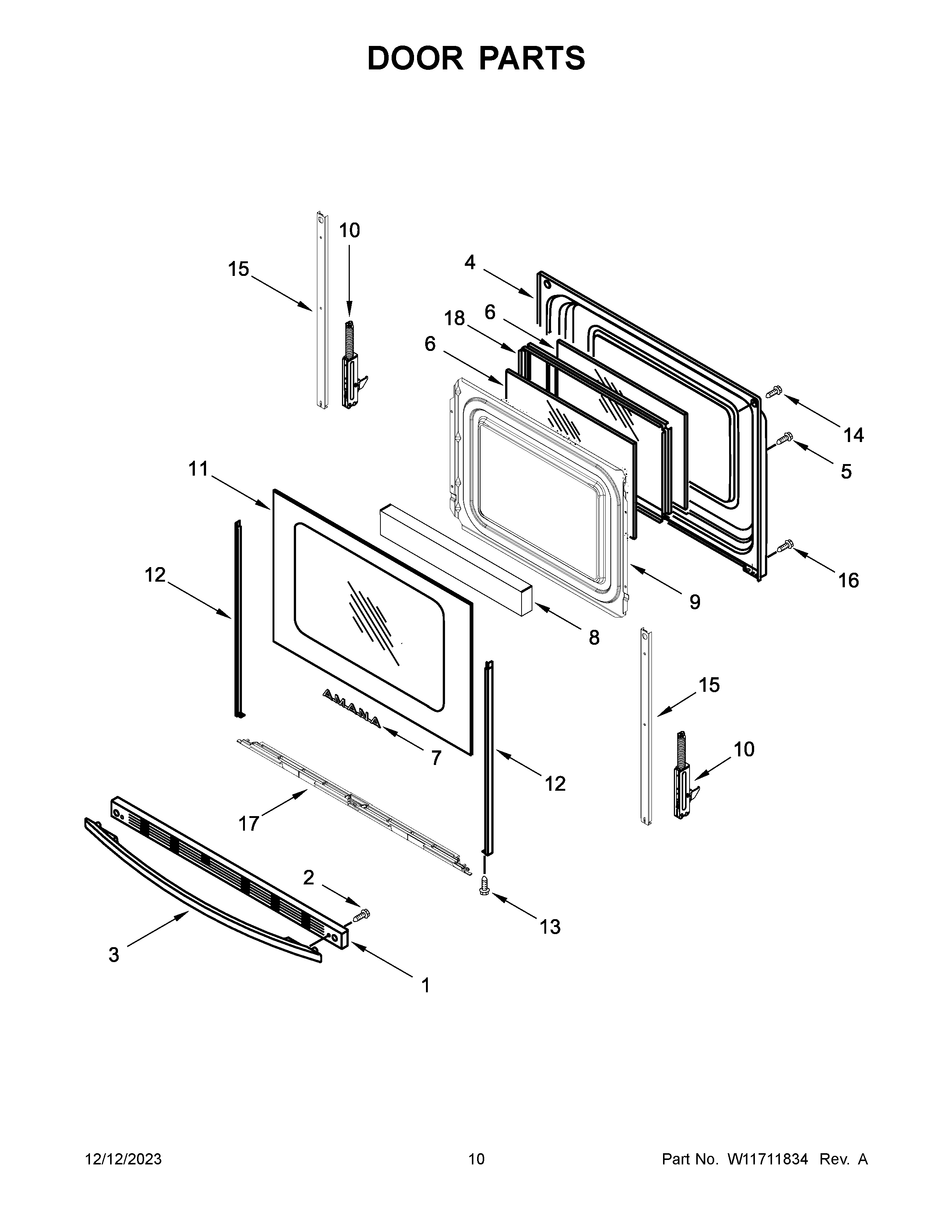

AGR6603SFB8 06 – DOOR PARTS

Products

Position	Product
1A	W10817433 Whirlpool Vent Trim
1	TRIM-VENT
2	W10817436 Whirlpool Screw
3	WPW10323589 Whirlpool Door Handle
3A	W10817434 Whirlpool Door Handle
4	WP9761344 Whirlpool Door Liner
5	WPW10031790 Whirlpool Screw
6	WP8053948 Whirlpool Door Glass
7	W10846751 Whirlpool Nameplate
7A	W10849465 Whirlpool Nameplate
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10A	WPW10299226 Whirlpool Door Hinge
10	WPW10299227 Whirlpool Range Door Hinge
11A	W10904906 Whirlpool Door Glass
11	W11098210 Whirlpool Glass Door
12C	WP8523166 Whirlpool Door Trim
12	W10761018 Whirlpool Dishwasher Left Door Trim
12A	WP8523172 Whirlpool Left Door Trim
12B	W10761014 Whirlpool Right Door Trim
13	WP355214 Whirlpool Screw
14	WPW10200660 Whirlpool Range Oven Door Handle Screw
15	W11502236 Whirlpool Door Trim
16	W10777162 Whirlpool Screw
17	W11569689 Whirlpool Door Trim
17A	W11594186 Whirlpool Door Trim
18	WPW10316950 Whirlpool Window Frame
