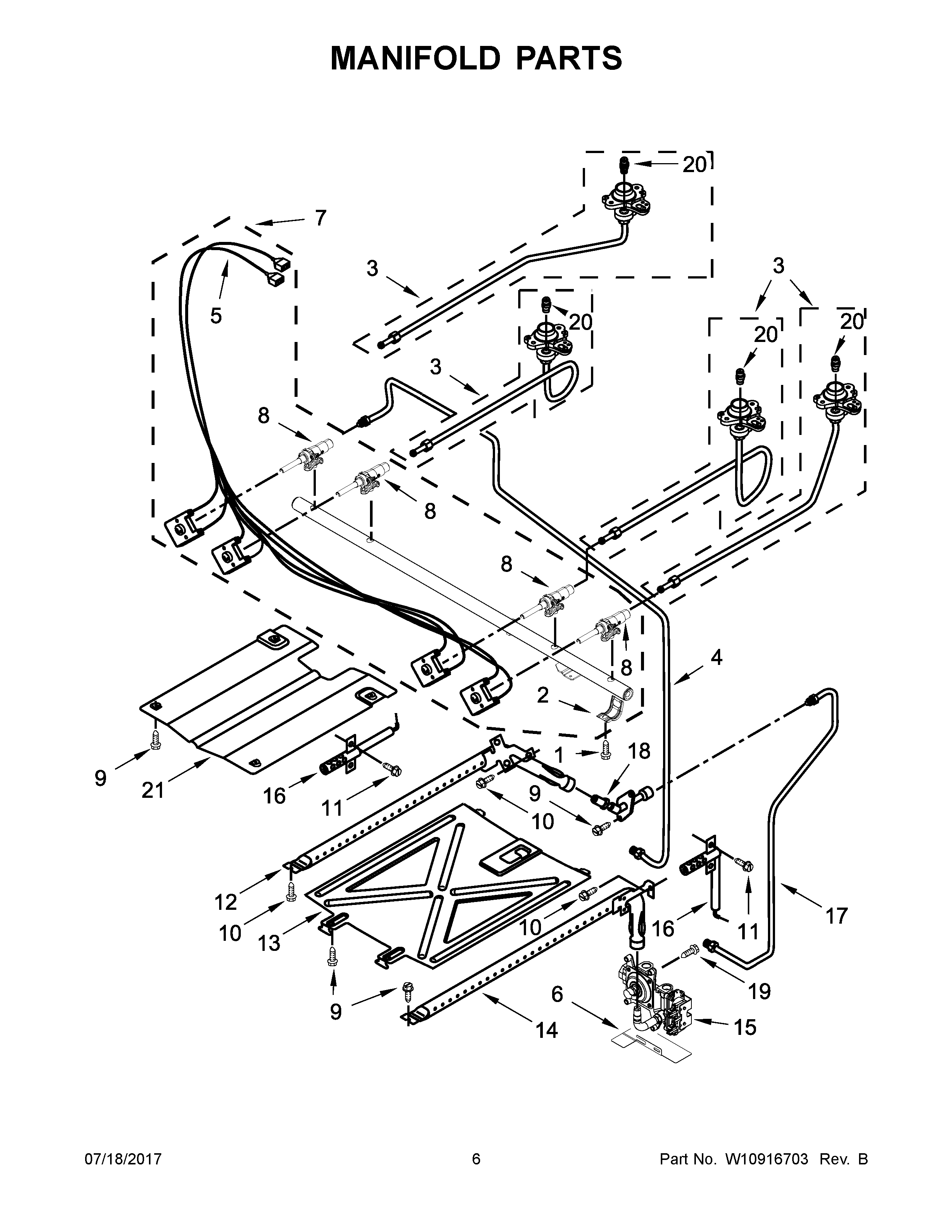

AGR6603SFS0 04 – MANIFOLD PARTS

Products

Position	Product
NI	SPUDS, LP GAS (KIT OF 4)
NI	KIT, LP BAKE AND BROIL
NI	LINER (NOT A SERVICEABLE PART)
1	SCREW, VALVE
2	BRACKET, SADDLE VALVE
3C	MAY W10474163
3B	MAY W10474169
3A	MAY W10473929
3	MAY W10474154
4	TUBING (MANIFOLD TO REGULATOR)
5	MAY W10812380
6	BRACKET, AEGIS
7	MAY W10812381
8A	VALVE, GAS (RIGHT REAR)
8	VALVE, GAS (LEFT REAR)
9	Screw
10	SCREW
11	SCREW
12	BURNER, BROILER
13	SPREADER, FLAME (OVEN)
14	BURNER, BAKE
15	REGULATOR
16	ELECTRODE, BROIL
16A	ELECTRODE, BAKE
17	TUBE, BROILER SUPPLY
18	FITTING, BROILER
19	SCREW
20A	ORIFICE, BURNER (12K) (RIGHT FRONT)
20B	ORIFICE, NATURAL (5K) (RIGHT REAR)
20	ORIFICE, NATURAL (9.5K) (LEFT REAR)
21	SPREADER, FLAME (BROILER)
