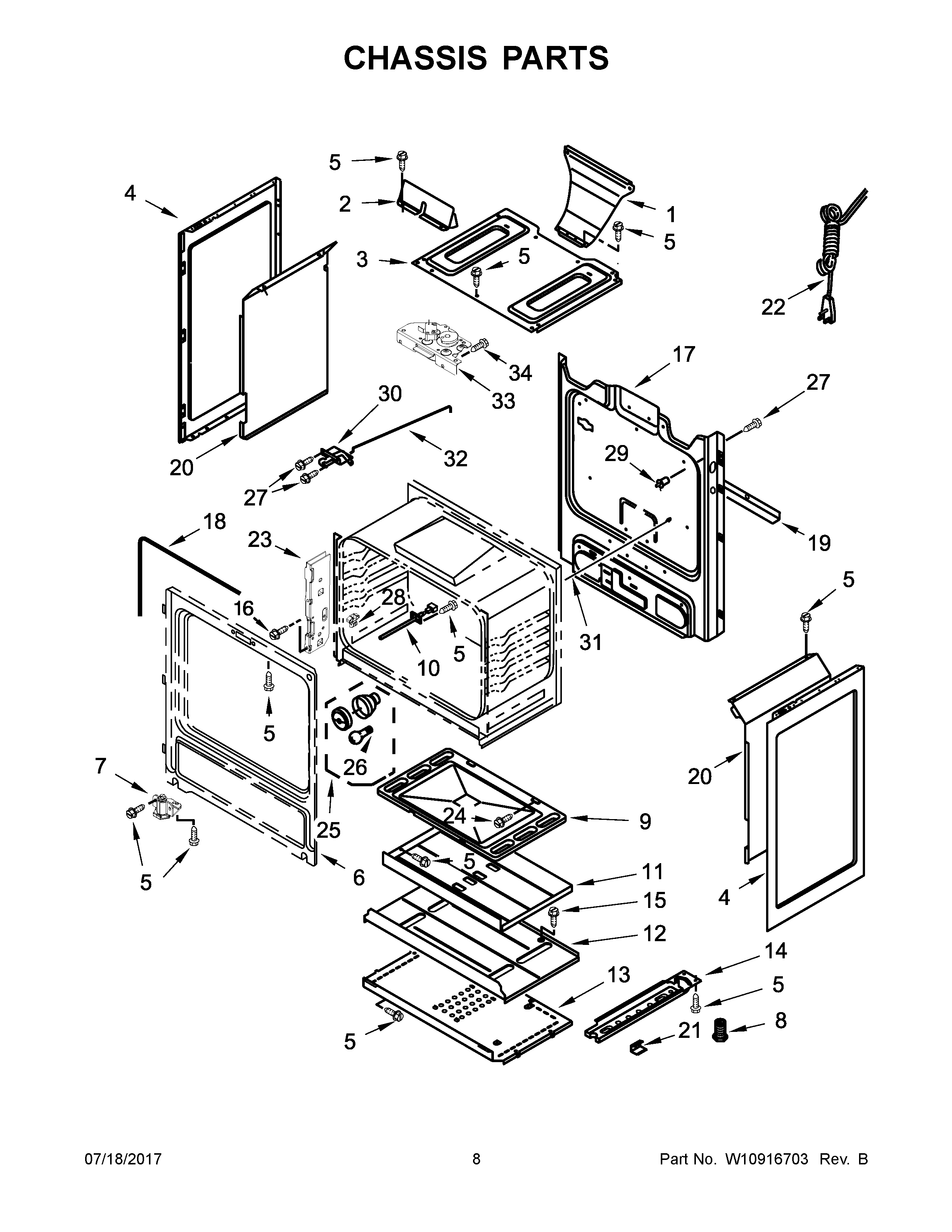

AGR6603SFS0 05 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, BACK
NI	LINER (NOT A SERVICEABLE PART)
NI	INSULATION, WRAP
1	BOX, FLUE
2	SHIELD, FLUE
3	BOX-BURNER, GAS SEALED
4A	PANEL, SIDE (WHITE)
4	PANEL, SIDE (BLACK)
5	SCREW
7	ASSEMBLY, FRONT FOOT
8	FOOT, LEVELING
9	BOTTOM, OVEN
10	MAY W10586204
11	BAFFLE, BURNER OVEN
12	SHIELD, HEAT
13	SHIELD, LOWER
14A	ASSEMBLY, BASE RAIL (RIGHT)
14	ASSEMBLY, BASE RAIL (LEFT)
15	MAY W10362924
16	MAY W10031780
17	BACK, MAIN
18	SEAL, DOOR
19	BRACE, MAIN BACK
20A	MAY 9761448
20	MAY 9761449
21	CLIP, PANEL
22	CORD, POWER
23	RECEIVER, HINGE
24	SCREW
25	ASSEMBLY, LIGHT
26	BULB, OVEN LIGHT
27	SCREW
28	GLIDE, DRAWER FRONT
29	SWITCH, DOOR
30	ASSEMBLY, DOOR LATCH (FRONT)
31	ROD, DOOR SWITCH
32	ROD, PUSH LATCH
33	ASSEMBLY, DOOR LATCH (REAR)
34	SCREW
