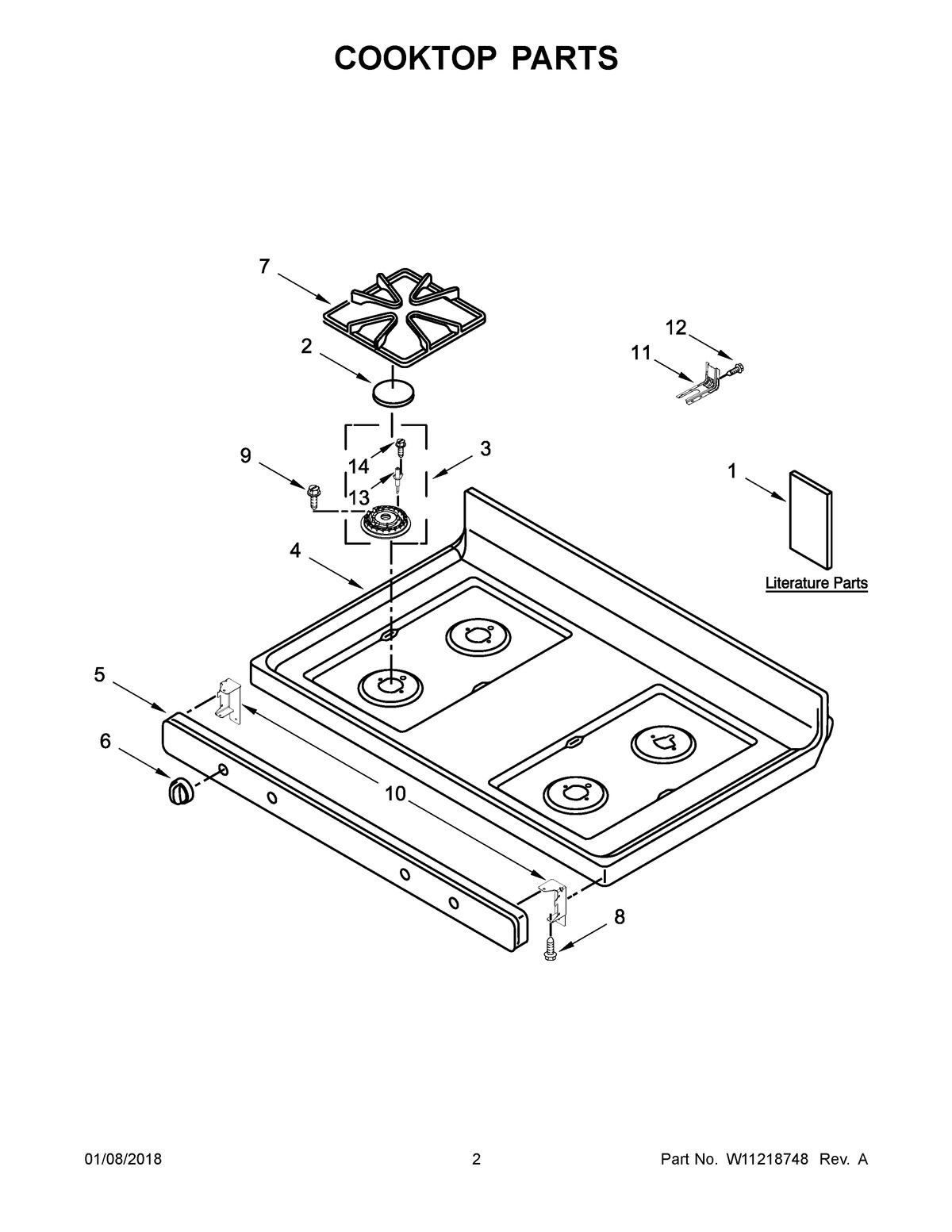

AGR6603SFS1 02 – COOKTOP PARTS

Products

Position	Product
NI	CLIP, GAS WIRING
NI	HARNESS, COOKTOP
NI	HARNESS, BAKE/BROIL
NI	HARNESS, MAIN
NI	LINER (NOT A SERVICEABLE PART)
NI	CLIP, WIRE
NI	CLIP, HARNESS
NI	CLIP, WIRE
NI	MAY 7111P017-60
1C	WIRING DIAGRAM
1	INSTRUCTIONS, INSTALLATION
1A	GUIDE, USE & CARE
1B	TECH SHEET
2	CAP, BURNER LEFT FRONT (BLACK)
3B	ASSEMBLY, BURNER (6K) (RIGHT REAR)
3A	ASSEMBLY, BURNER (9.5K) (LEFT REAR & CENTER)
3	ASSEMBLY, BURNER (17.5K) (LEFT FRONT & RIGHT FRONT)
4	COOKTOP (BLACK)
5	MAY 8523855
6	MAY W10844796
7	GRATE KIT (BLACK)
8	SCREW
9	MAY 3196557
10	BRACKET, MANIFOLD
11	BRACKET, ANTI-TIP
12	SCREW, ANTI-TIP KIT
13	ELECTRODE (RIGHT REAR)
14	MAY 8273062
