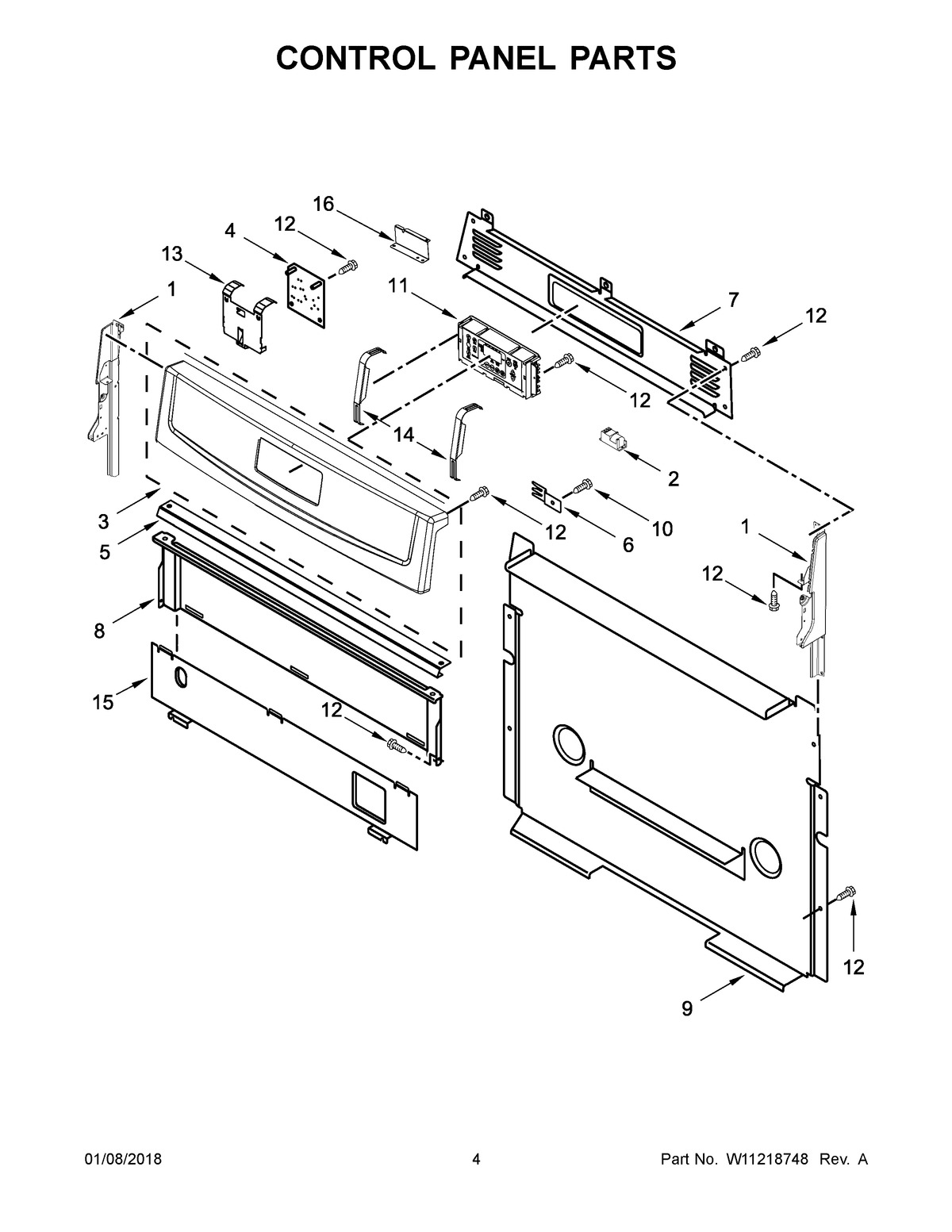

AGR6603SFS1 03 – CONTROL PANEL PARTSadmin2025-04-26T12:27:40+00:00AGR6603SFS1 03 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | ENDCAP (BLACK (LEFT)) |
| 1A | ENDCAP (BLACK (RIGHT)) |
| 2 | MODULE, SPARK |
| 3 | MAY W11157105 |
| 4 | MODULE, SPARK DSI |
| 5 | BRACKET, CONSOLE MOUNTING |
| 6 | BRACKET, REAR COOKTOP |
| 7 | COVER, UPPER |
| 8 | SHIELD, HEAT |
| 9 | COVER, BACK |
| 10 | SCREW |
| 11 | CONTROL, RANGE (BLACK) |
| 12 | SCREW |
| 13 | MAY W10516463 |
| 14 | BRACKET, CONTROL |
| 15 | SHIELD, HEAT |
| 16 | BRACKET, IGNITOR |
