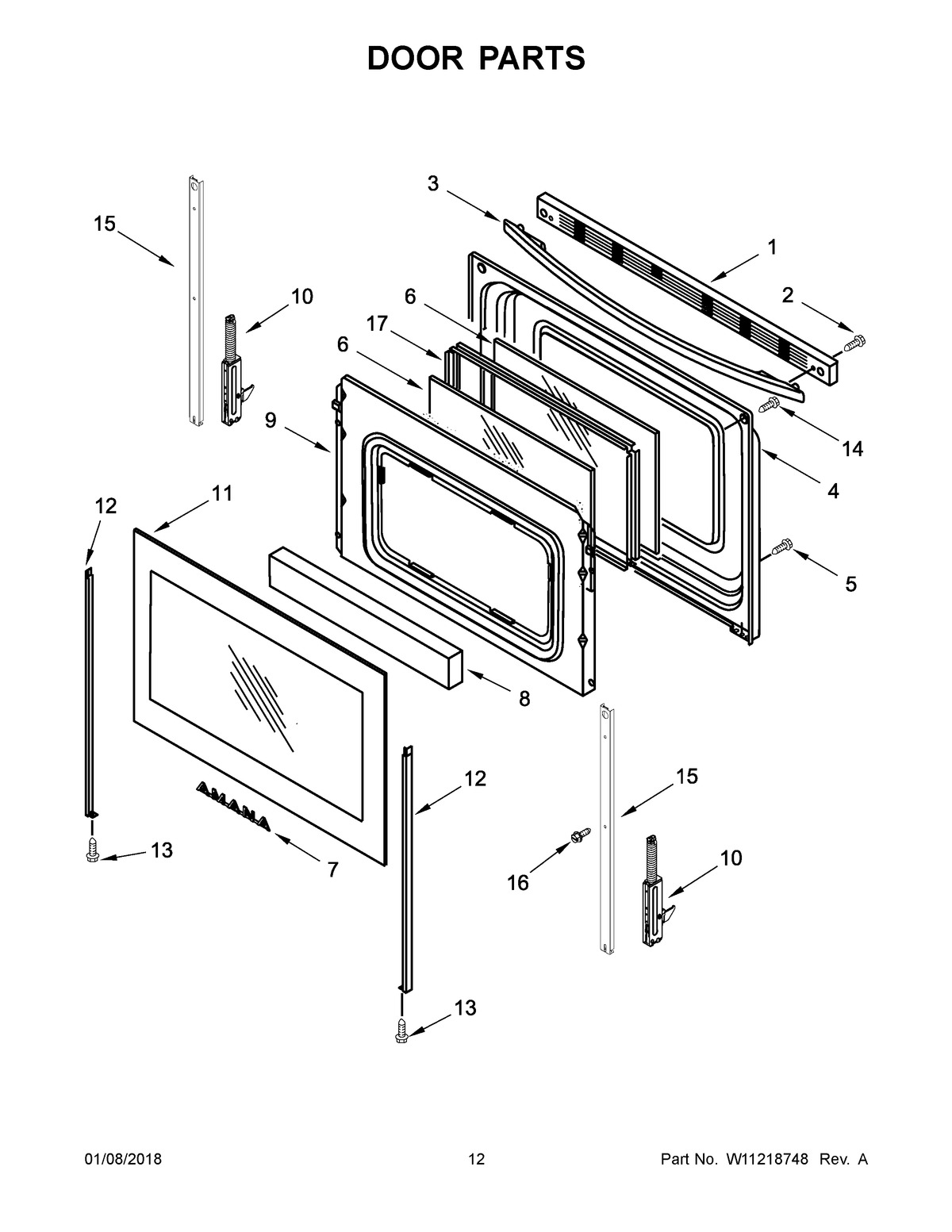

AGR6603SFS1 07 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP (BLACK)
2	SCREW
3	HANDLE, DOOR (STAINLESS)
4	LINER, DOOR
5	SCREW
6	GLASS, INNER
7	BADGE (STAINLESS)
8	INSULATION, DOOR STRIP
9	RETAINER, INSULATION
10	HINGE, DOOR (PASSIVE)
10A	HINGE, ACTIVE (WITH SPRING)
11	GLASS ASSEMBLY, OUTER DOOR (STAINLESS)
12A	TRIM, SIDE (BLACK (RIGHT))
12	TRIM, SIDE (BLACK (LEFT))
13	SCREW
14	SCREW
15	STRAP, DOOR
16	MAY W10031780
17	FRAME, GLASS
