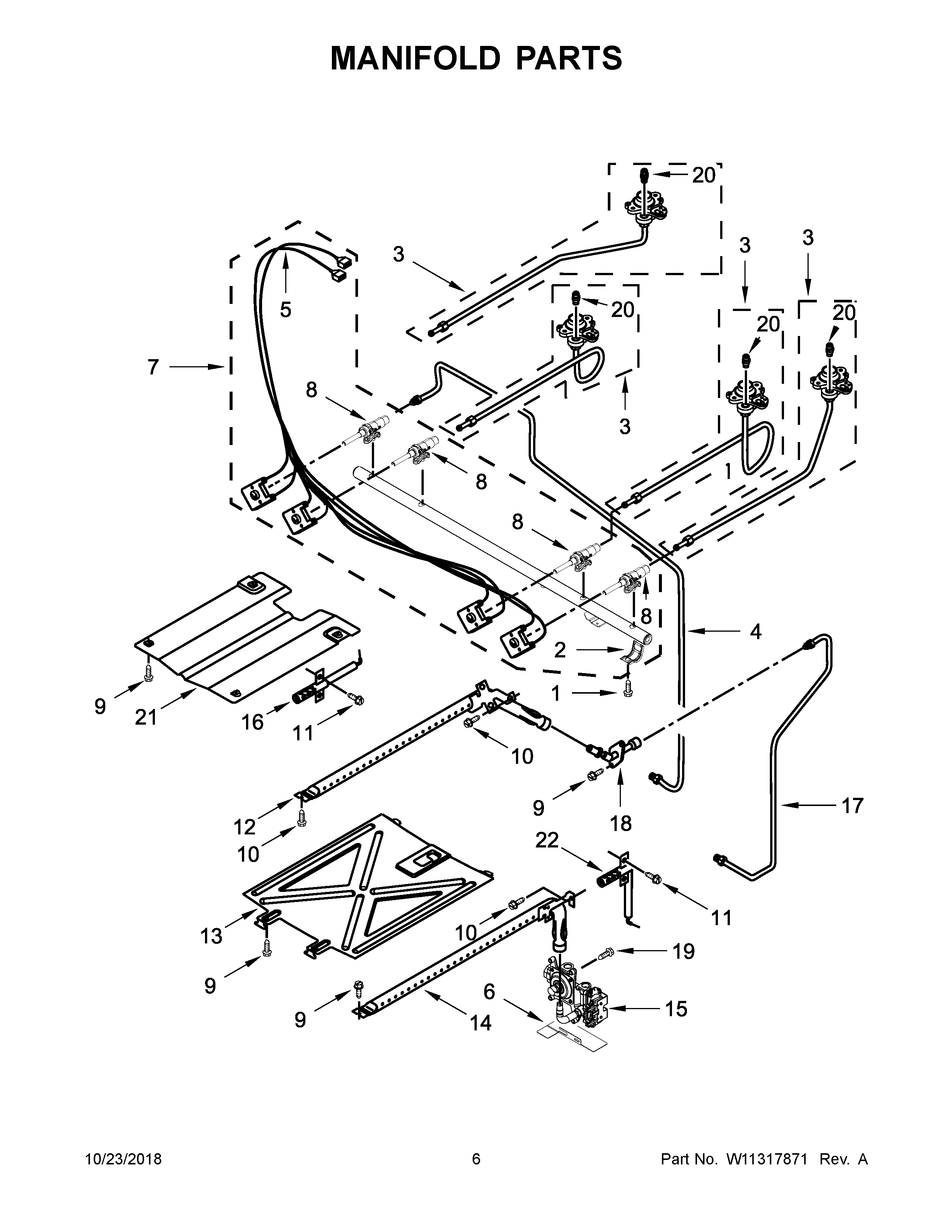

AGR6603SFS2 04 – MANIFOLD PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	KIT, LP BAKE AND BROIL
NI	SPUDS, LP GAS (KIT OF 4)
1	SCREW, VALVE
2	BRACKET, SADDLE VALVE
3C	MAY W10474163
3A	MAY W10473929
3	ASSEMBLY, ORIFICE HOLDER (LEFT FRONT)
3B	ASSEMBLY, ORIFICE HOLDER (RIGHT FRONT)
4	TUBING (MANIFOLD TO REGULATOR)
5	MAY W10812380
6	BRACKET, AEGIS
7	MAY W10812382
8	VALVE, GAS (LEFT FRONT & RIGHT FRONT)
8B	VALVE, GAS (RIGHT REAR)
8A	VALVE, GAS (LEFT REAR)
9	Screw
10	SCREW
11	SCREW
12	BURNER, BROILER
13	SPREADER, FLAME (OVEN)
14	BURNER, BAKE
15	REGULATOR
16	ELECTRODE, BROIL
17	TUBE, BROILER SUPPLY
18	FITTING, BROILER
19	SCREW
20	ORIFICE, BURNER (LEFT FRONT)
20B	ORIFICE, NATURAL (5K) (RIGHT REAR)
20A	ORIFICE, NATURAL (9.5K) (LEFT REAR)
21	SPREADER, FLAME (BROILER)
22	ELECTRODE, BAKE
