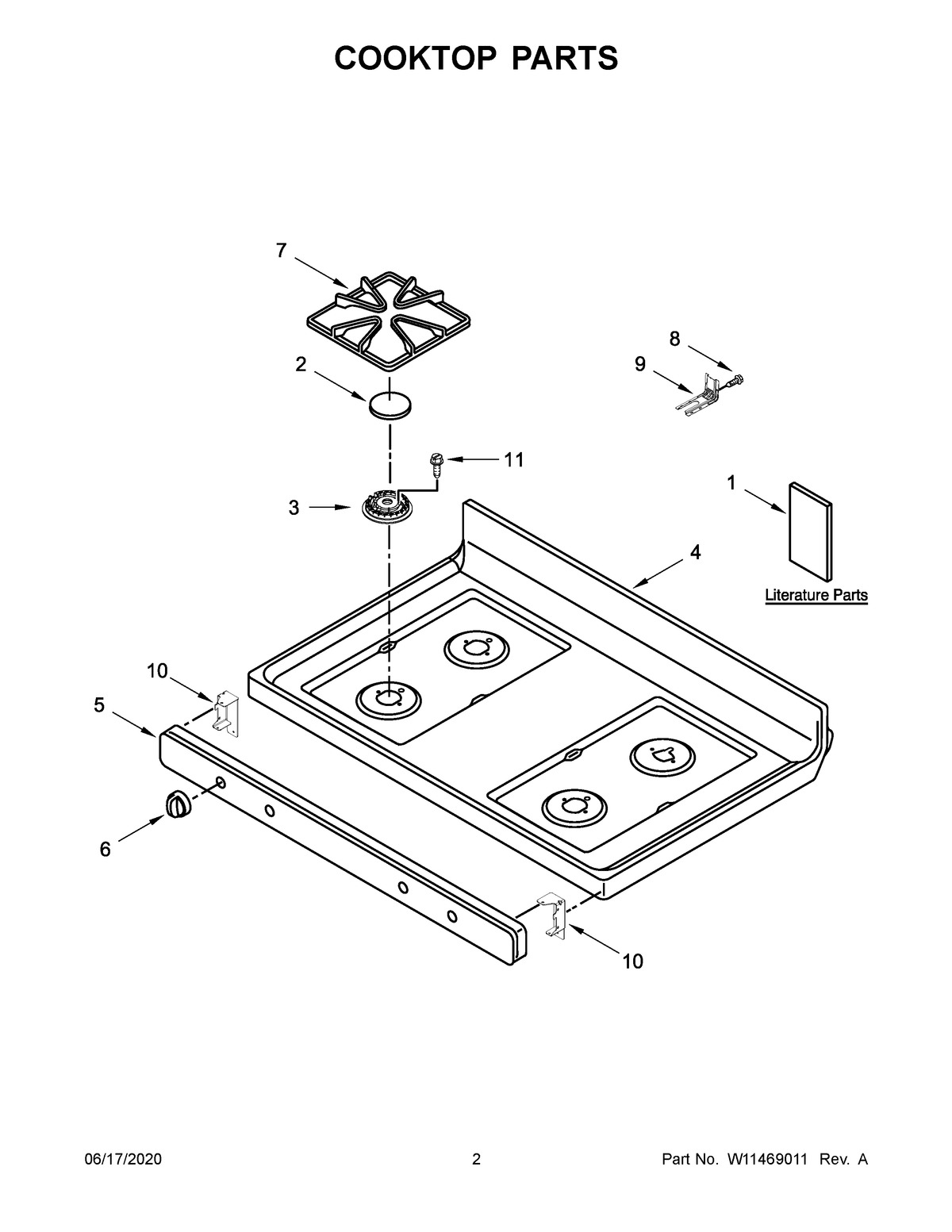

AGR6603SFS3 02 – COOKTOP PARTS

AGR6603SFS3 02 – COOKTOP PARTS

Written by

in

AGR6603SFS3 02 – COOKTOP PARTS

Products

PositionProduct
NICLIP, GAS WIRING
NIHARNESS, MAIN
NILINER (NOT A SERVICEABLE PART)
NICLIP, WIRE
NICLIP, HARNESS
NICLIP, WIRE
NIMAY 7111P017-60
NISCREW
NIHARNESS, BAKE/BROIL
1CWIRING DIAGRAM
1AUSE & CARE GUIDE
1INSTALLATION INSTRUCTIONS
1BTECH SHEET
2SET, BURNER CAP (BLACK (SET OF 4))
3SPREADER, FLAME (LEFT FRONT & RIGHT FRONT)
3ASPREADER, FLAME (LEFT REAR)
3BSPREADER, FLAME (RIGHT REAR)
4COOKTOP (BLACK)
5MAY 8523855
6MAY W10844796
7GRATE KIT (BLACK)
8SCREW, ANTI-TIP KIT
9ANTI-TIP BRACKET
10BRACKET, MANIFOLD
11SCREW
