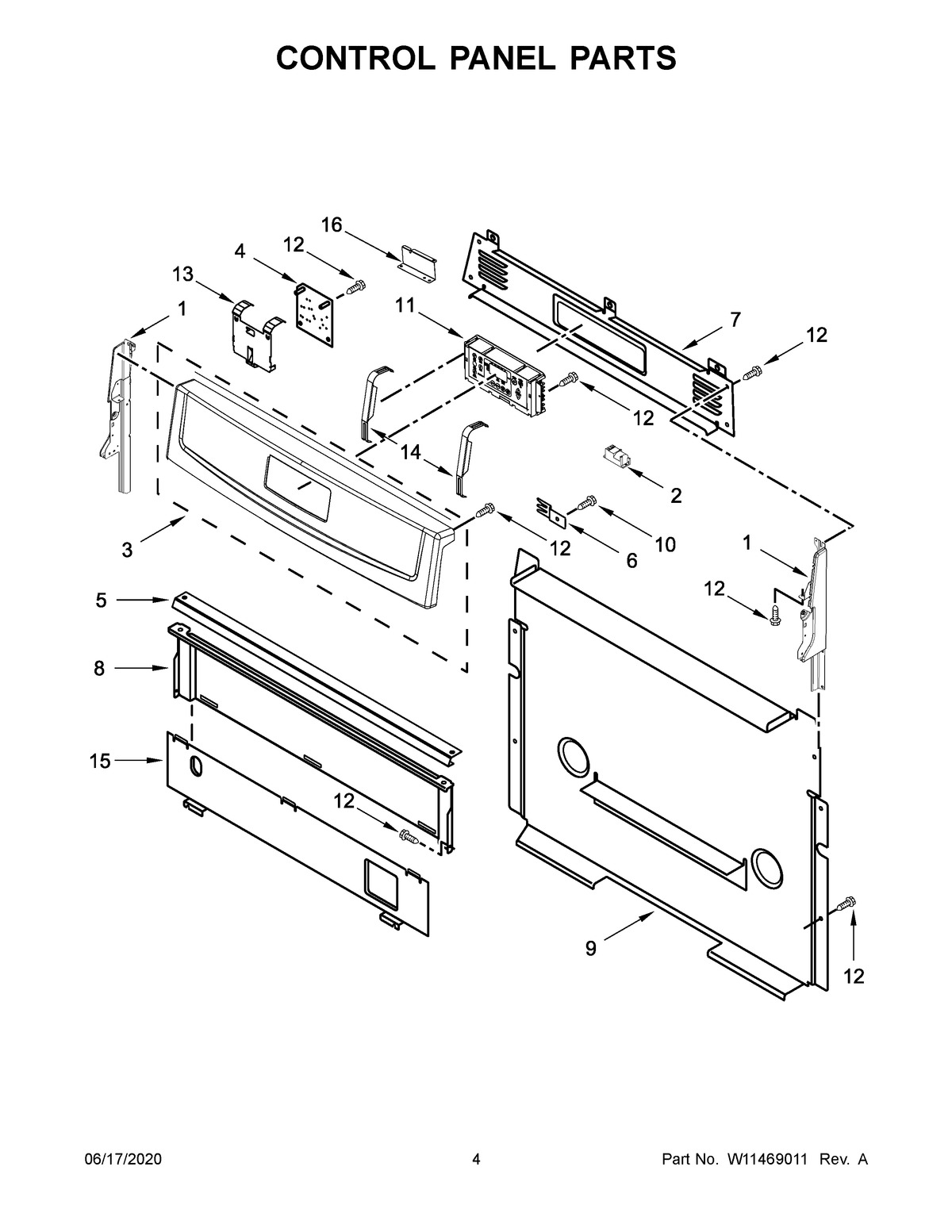

AGR6603SFS3 03 – CONTROL PANEL PARTS

AGR6603SFS3 03 – CONTROL PANEL PARTS

Written by

in

AGR6603SFS3 03 – CONTROL PANEL PARTS

Products

Position	Product
1	ENDCAP (BLACK (LEFT))
1A	ENDCAP (BLACK (RIGHT))
2	MODULE, SPARK
3	MAY W11157105
4	MODULE, SPARK DSI
5	BRACKET, CONSOLE MOUNTING
6	BRACKET, REAR COOKTOP
7	COVER, UPPER
8	SHIELD, HEAT
9	COVER, BACK
10	SCREW
11	CONTROL, RANGE (BLACK)
12	SCREW
13	MAY W10516463
14	BRACKET, CONTROL
15	SHIELD, HEAT
16	BRACKET, IGNITOR
