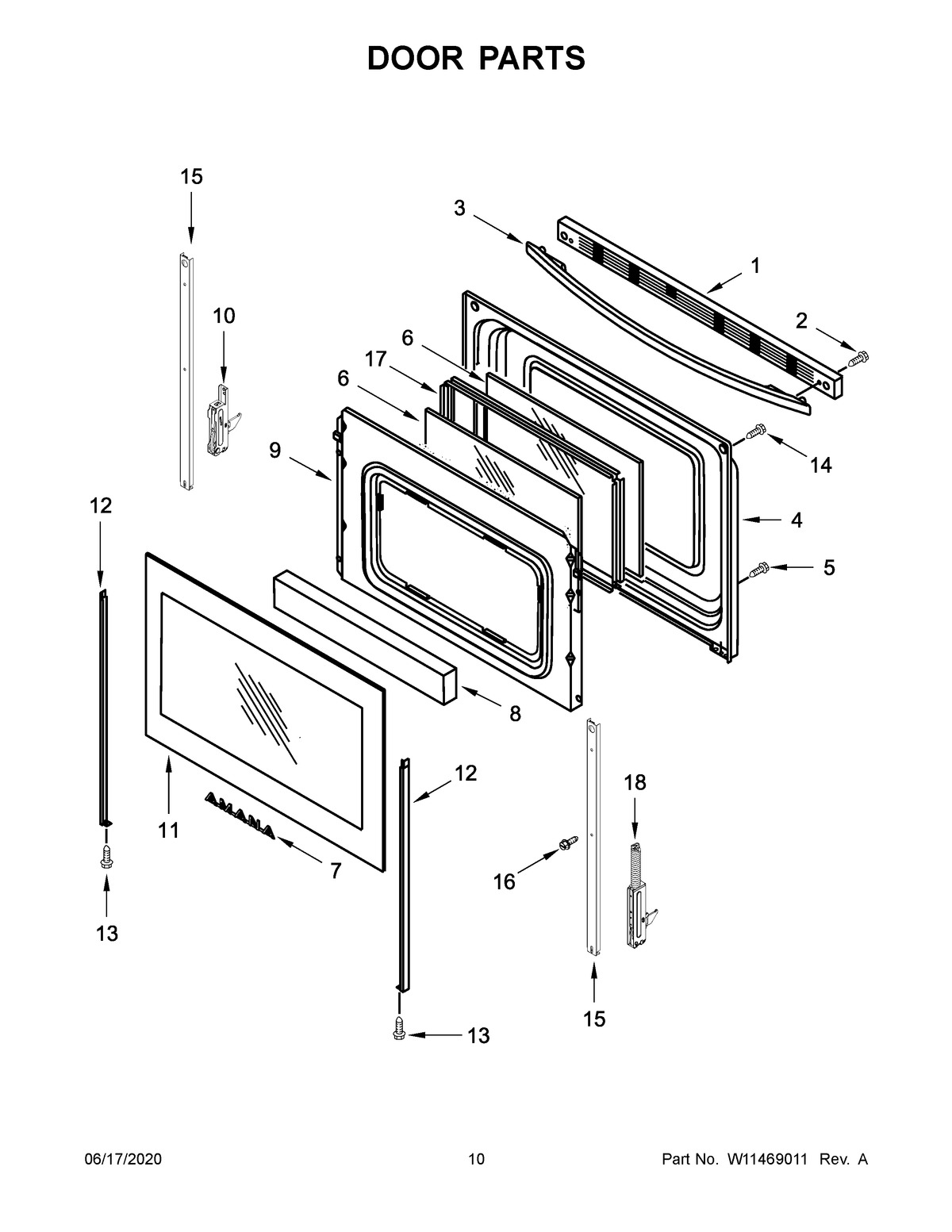

AGR6603SFS3 06 – DOOR PARTS

AGR6603SFS3 06 – DOOR PARTS

Written by

in

AGR6603SFS3 06 – DOOR PARTS

Products

PositionProduct
1TRIM, TOP (BLACK)
2SCREW
3HANDLE, DOOR (STAINLESS)
4LINER, DOOR
5SCREW
6GLASS, INNER
7BADGE (STAINLESS)
8INSULATION, DOOR STRIP
9RETAINER, INSULATION
10HINGE, DOOR (PASSIVE)
11GLASS ASSEMBLY, OUTER DOOR (STAINLESS)
12TRIM, SIDE (BLACK (LEFT))
12ATRIM, SIDE (BLACK (RIGHT))
13SCREW
14SCREW
15DOOR STRAP
16MAY W10031780
17FRAME, GLASS
18HINGE, ACTIVE (WITH SPRING)
