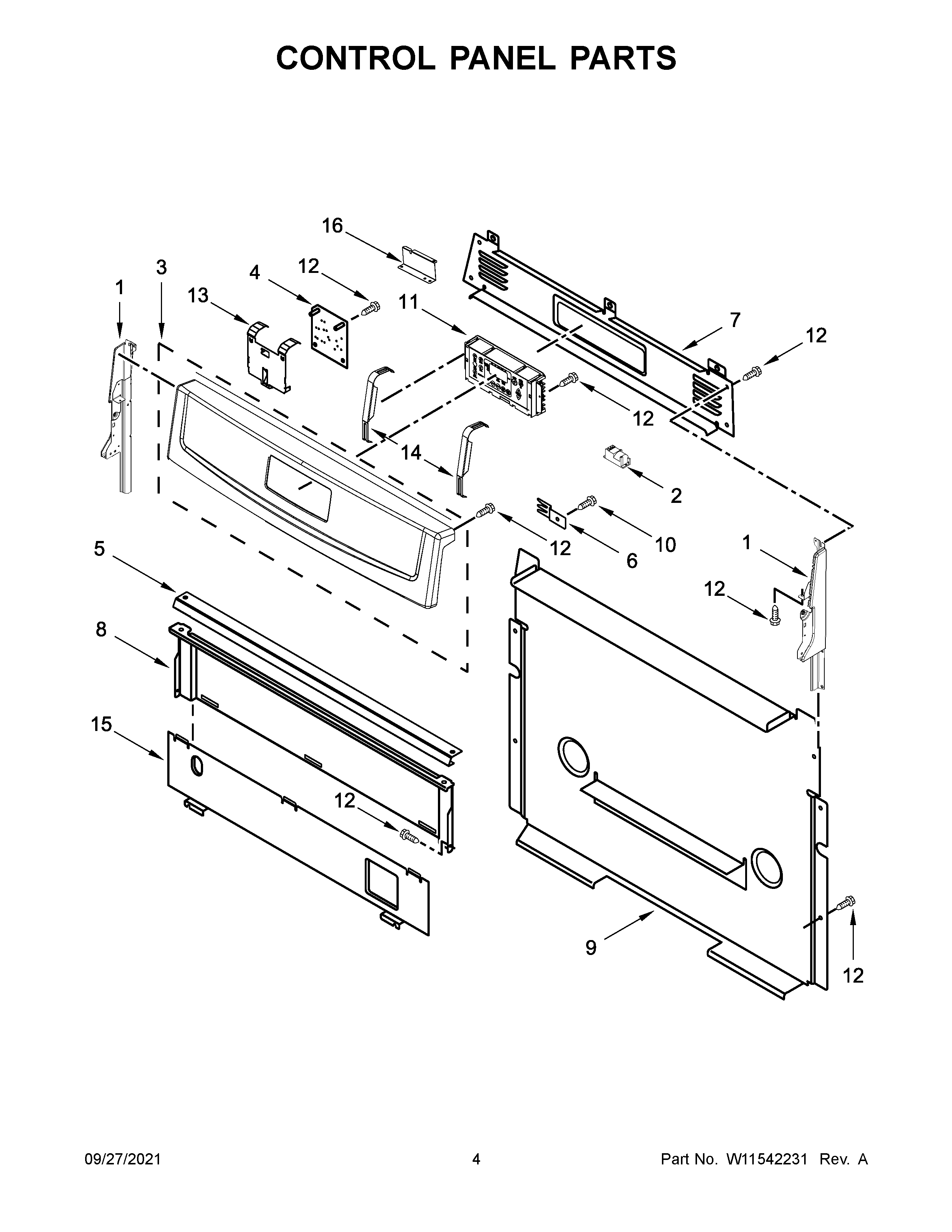

AGR6603SFS4 03 – CONTROL PANEL PARTS

Products

Position	Product
1A	W11219665 Whirlpool Panel Endcap
1	W11219664 Whirlpool Endcap Panel
2	WPW10110491 Whirlpool Spark Module
3	W11219672 Whirlpool Control Panel
4	W11162730 Whirlpool Spark Module
5	W10516123 Whirlpool Mounting Bracket
6	8523412 Whirlpool Mounting Bracket
7	W10198745 Whirlpool Rear Cover
8	W10192841 Whirlpool Heat Shield
9	COVER, BACK
10	WP3196557 Whirlpool Screw
11	W10918555 Whirlpool Electronic Control Board
12	SCREW
13	W10516463 Whirlpool Mounting Bracket
14	W11230932 Whirlpool Bracket Mounting
15	8053505 Whirlpool Oven Shield
16	W10901176 Whirlpool Bracket Assembly
