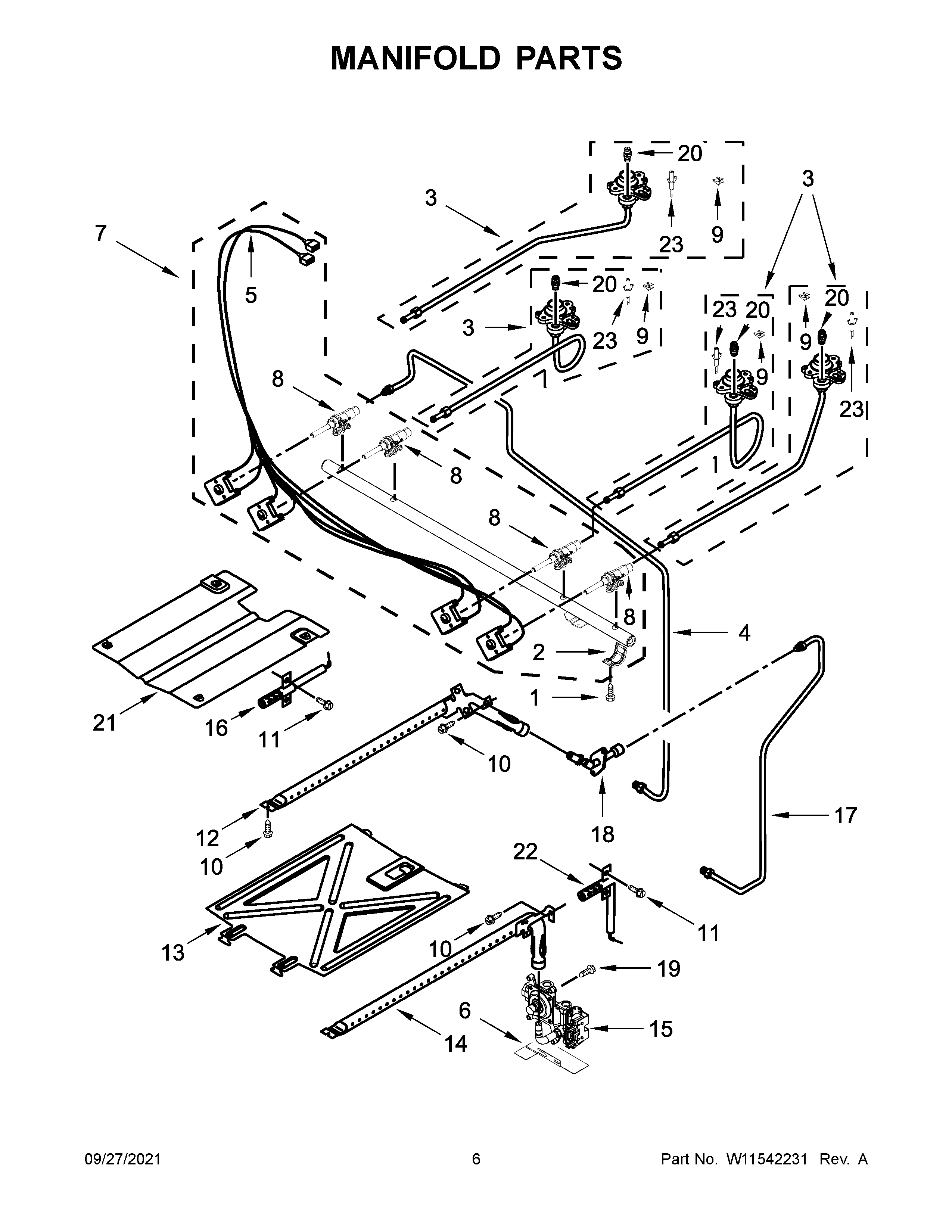

AGR6603SFS4 04 – MANIFOLD PARTS

Products

Position	Product
NI	W10758273 Whirlpool Orifice
NI	CABINET (NOT A SERVICEABLE PART)
NI	WPW10400495 Whirlpool Orifice Assembly
NI	WPW10182767 Whirlpool Wire Tie
NI	W11569688 Whirlpool Orifice
NI	W11126051 Whirlpool Conversion Kit
1	W10295997 Whirlpool Screw
2	W10949105 Whirlpool Mounting Bracket
3B	W11459255 Whirlpool Orifice Holder
3A	ORIFICE HOLDER ASSEMBLY (LEFT REAR)
3	W11459253 Whirlpool Orifice Holder
3C	W11459256 Whirlpool Dishwasher Orifice Holder
4	W11680399 Whirlpool Gas Tubing
5	W11256561 Whirlpool Wire Harness
6	W10224921 Whirlpool Bracket Mounting
7	W11347743 Whirlpool Manifold
8	W11628784 Whirlpool Burner Valve
8A	W11699929 Whirlpool Burner Valve
8B	W11352015 Whirlpool Range Burner Valve
9	W11684564 Whirlpool Clip Assembly
10	3196265 Whirlpool Oven Screw
11	W11684507 Whirlpool Screw
12	WP8054078 Whirlpool Broiler Burner
13	WPW10184491 Whirlpool Burner Baffle
14	WP9758078 Whirlpool Oven Burner
15	W11449506 Whirlpool Gas Valve
16	WPW10333842 Whirlpool Oven Igniter
17	W10420040 Whirlpool Gas Tubing
18	W11435700 Whirlpool Fitting Component
19	WP3400016 Whirlpool Screw Assembly
20	W11700316 Whirlpool Orifice
20A	W11485873 Whirlpool Orifice
20B	W11712434 Whirlpool Orifice
21	W10137062 Whirlpool Burner Baffle
22	W11524031 Whirlpool Oven Igniter
23A	W11453920 Whirlpool Surface Igniter
23	W11453940 Whirlpool Surface Igniter
