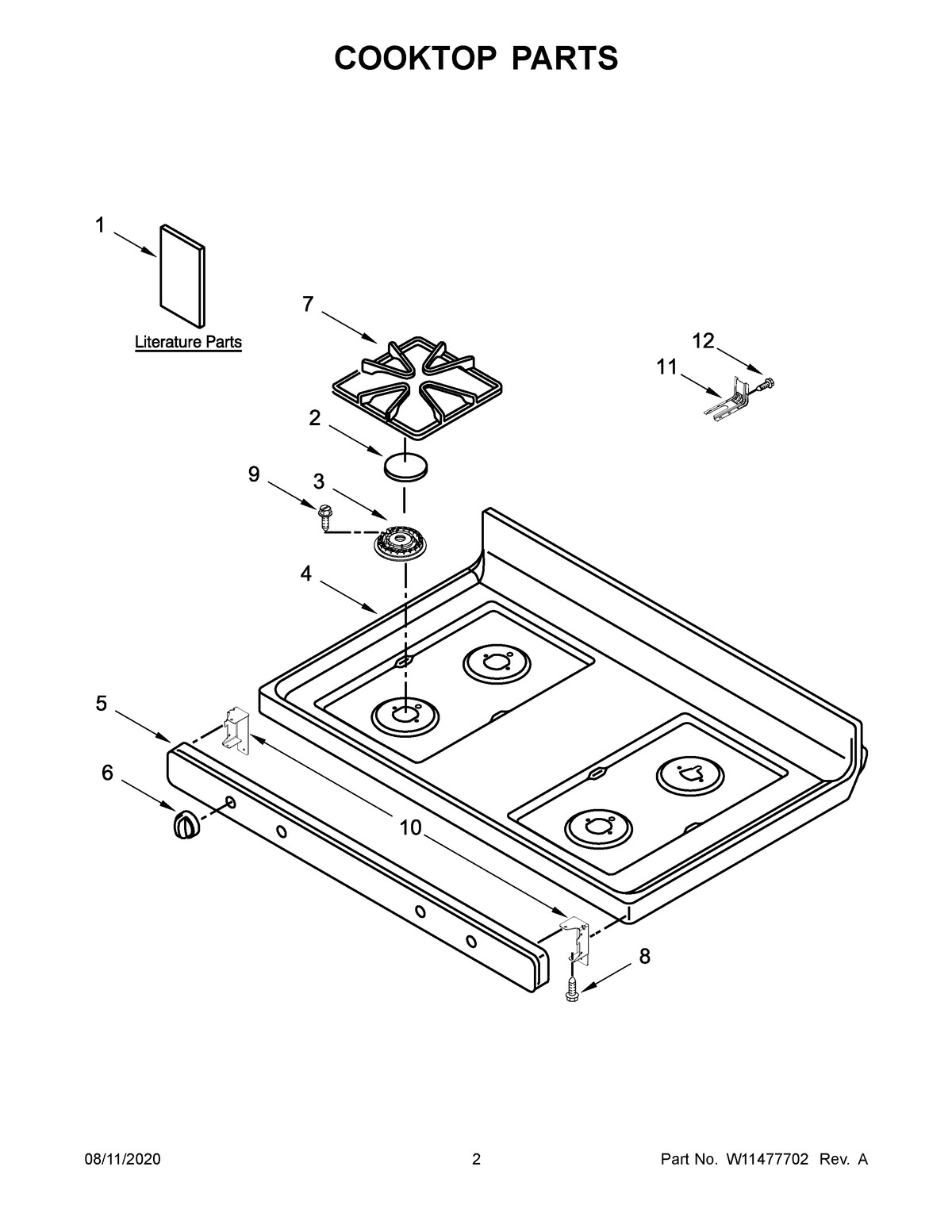

AGR6603SFW3 02 – COOKTOP PARTS

AGR6603SFW3 02 – COOKTOP PARTS

Written by

in

AGR6603SFW3 02 – COOKTOP PARTS

Products

PositionProduct
NICLIP, GAS WIRING
NIHARNESS, MAIN
NIHARNESS, BAKE/BROIL
NILINER (NOT A SERVICEABLE PART)
NICLIP, WIRE
NICLIP, HARNESS
NIMAY 7111P017-60
NICLIP, WIRE
1AUSE & CARE GUIDE
1INSTALLATION INSTRUCTIONS
1CWIRING DIAGRAM
1BTECH SHEET
2SET, BURNER CAP (BLACK (SET OF 4))
3SPREADER, FLAME (LEFT FRONT & RIGHT FRONT)
3BSPREADER, FLAME (RIGHT REAR)
3ASPREADER, FLAME (LEFT REAR)
4COOKTOP (BLACK)
4AMAY W11418037
5MAY 8523855
5AMAY 8523854
6KNOB, CONTROL (BLACK)
6AKNOB, CONTROL (WHITE)
7GRATE KIT (BLACK)
8SCREW
9SCREW
10BRACKET, MANIFOLD
11ANTI-TIP BRACKET
12SCREW, ANTI-TIP KIT
