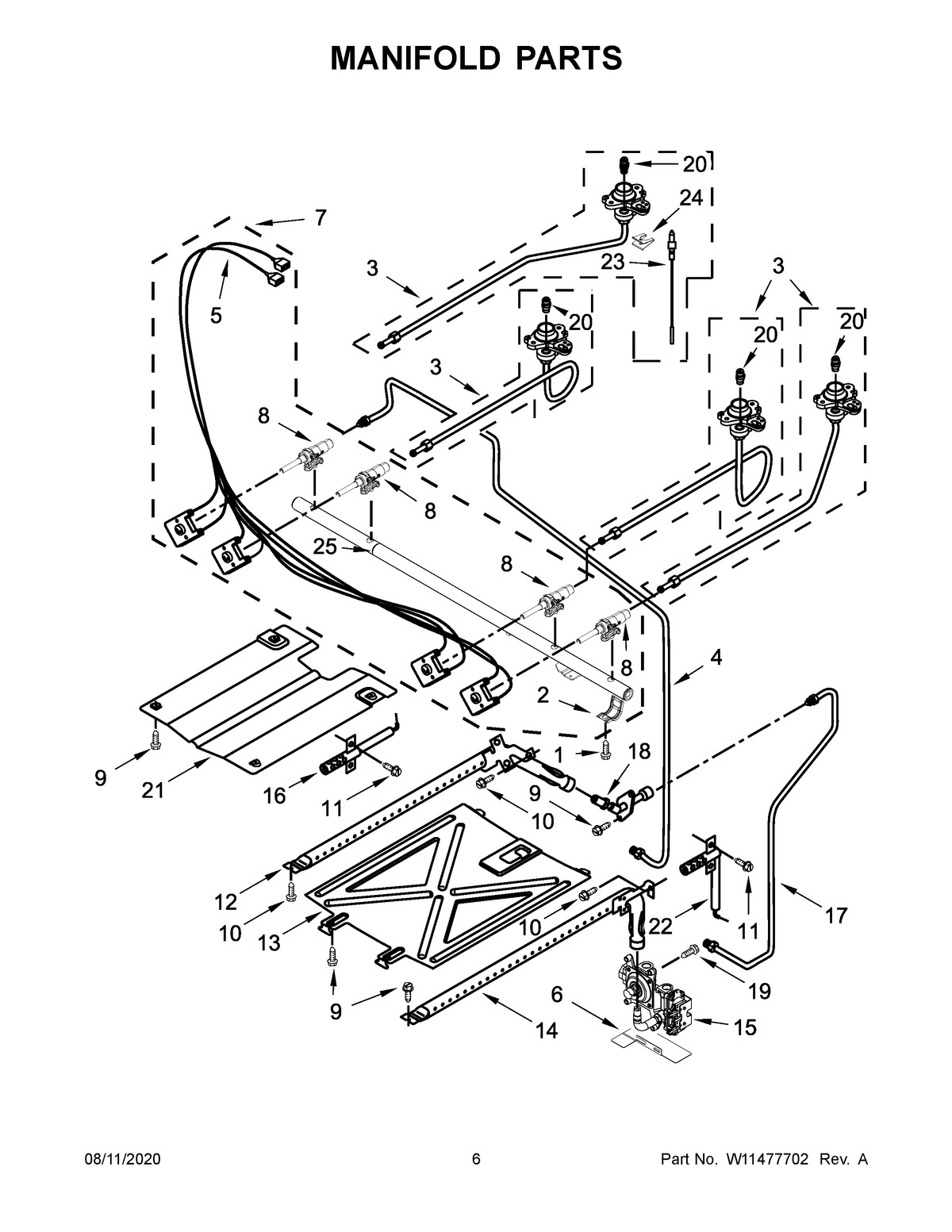

AGR6603SFW3 04 – MANIFOLD PARTS

Products

PositionProduct
NILP CONVERSION KIT
NIKIT, LP BAKE AND BROIL
NILINER (NOT A SERVICEABLE PART)
1SCREW, VALVE
2BRACKET, SADDLE VALVE
3AORIFICE HOLDER ASSEMBLY (LEFT REAR)
3ORIFICE HOLDER ASSEMBLY (LEFT FRONT)
3BORIFICE HOLDER ASSEMBL (RIGHT FRONT)
3CORIFICE HOLDER ASSEMBLY (RIGHT REAR)
4TUBING (MANIFOLD TO REGULATOR)
5MAY W10812380
6BRACKET, AEGIS
7MANIFOLD ASSEMBLY
8BVALVE, GAS (RIGHT REAR)
8AVALVE, GAS (LEFT REAR, CENTER)
8VALVE, GAS (LEFT FRONT & RIGHT FRONT)
9MAY W10362924
10SCREW
11SCREW
12BURNER, BROILER
13SPREADER, FLAME (OVEN)
14BURNER, BAKE
15REGULATOR
16ELECTRODE, BROIL
17TUBE, BROILER SUPPLY
18FITTING, BROILER
19SCREW
20AORIFICE (10K) (LEFT REAR)
20BORIFICE (LEFT REAR)
20ORIFICE (15K) (LEFT FRONT & RIGHT FRONT)
21SPREADER, FLAME (BROILER)
22ELECTRODE, BAKE
23AELECTRODE (RIGHT FRONT, RIGHT REAR, CENTER)
23ELECTRODE (LEFT FRONT, LEFT REAR)
24SPRING, ELECTRODE
25TIE, MANIFOLD WIRE
