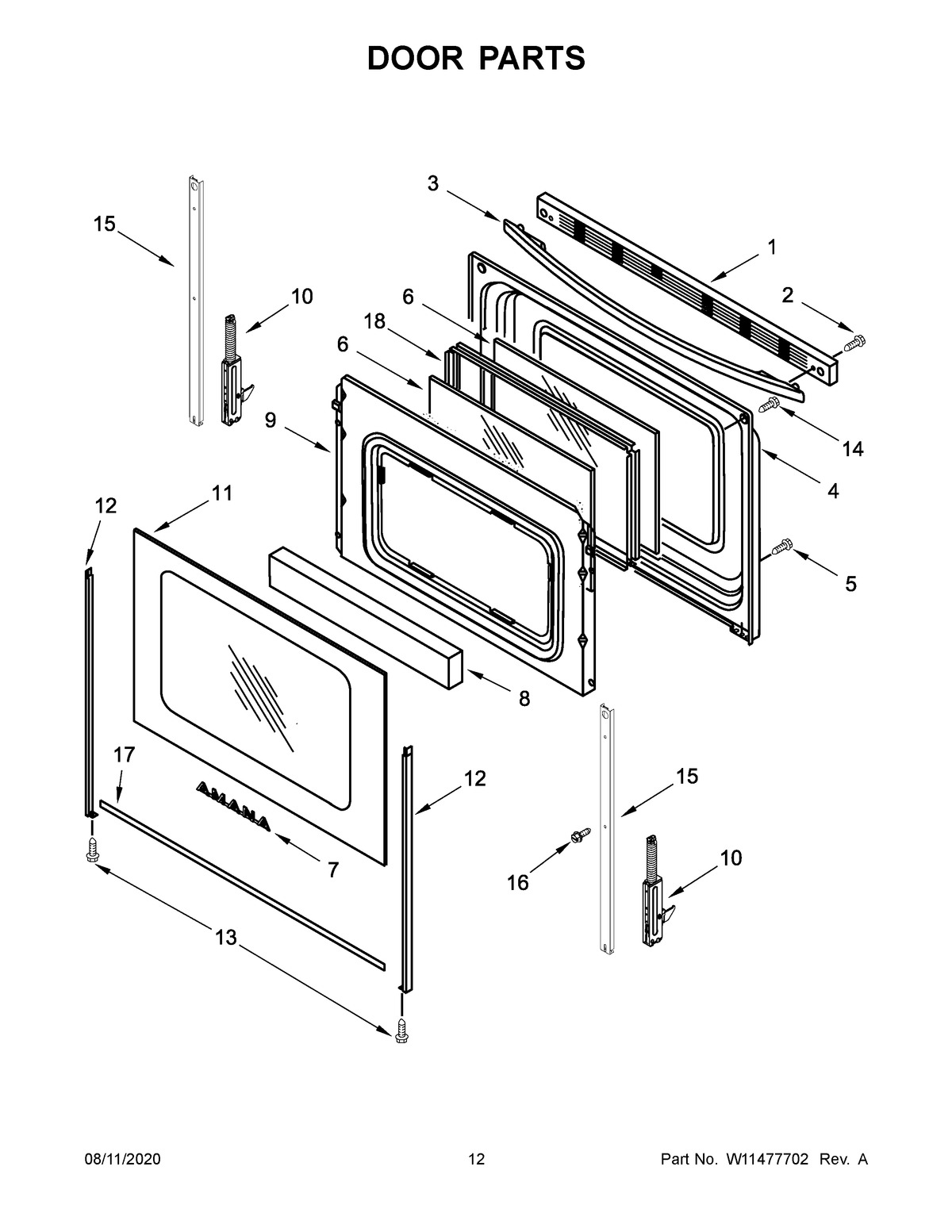

AGR6603SFW3 07 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP (BLACK)
1A	TRIM, TOP (WHITE)
2	SCREW
3A	HANDLE, DOOR (WHITE)
3	HANDLE, DOOR (BLACK)
4	LINER, DOOR
5	SCREW
6	GLASS, INNER
7A	BADGE (WHITE)
7	BADGE (BLACK)
8	INSULATION, DOOR STRIP
9	RETAINER, INSULATION
10A	HINGE, ACTIVE
10	HINGE, DOOR (PASSIVE)
11A	GLASS, OUTER (WHITE)
11	GLASS, OUTER (BLACK)
12B	TRIM, SIDE (WHITE (LEFT))
12C	TRIM, SIDE (WHITE (RIGHT))
12A	TRIM, SIDE (BLACK (RIGHT))
12	TRIM, SIDE (BLACK (LEFT))
13	SCREW
14	SCREW
15	DOOR STRAP
16	MAY W10031780
17A	TRIM, LOWER (WHITE)
17	TRIM, LOWER (BLACK)
18	FRAME, GLASS
