AGR6603SFW4 03 – CONTROL PANEL PARTS
Written by
in

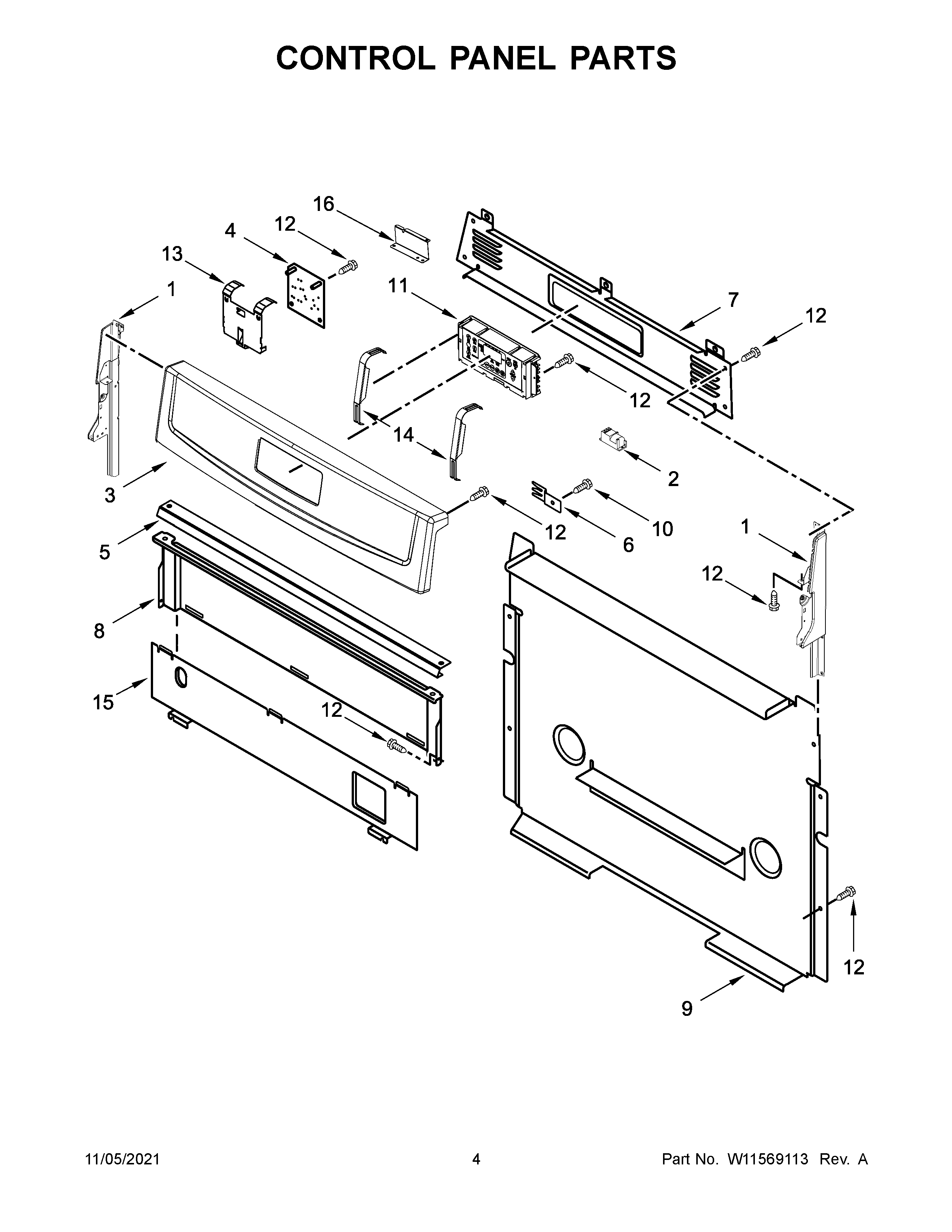

AGR6603SFW4 03 – CONTROL PANEL PARTS
Products
Position
Product
1
W11219365 Whirlpool Panel Endcap
1A
W11219370 Whirlpool Endcap Panel
2
WPW10110491 Whirlpool Spark Module
3
PANEL, CONSOLE (WHITE)
4
W11162730 Whirlpool Spark Module
5
W10516123 Whirlpool Mounting Bracket
6
8523412 Whirlpool Mounting Bracket
7
W10198745 Whirlpool Rear Cover
8
W10192841 Whirlpool Heat Shield
9
COVER, BACK
10
WP3196557 Whirlpool Screw
11
W10919203-includeCORE Whirlpool W10919203 Refrigerator Electronic Control Board
12
SCREW
13
W10516463 Whirlpool Mounting Bracket
14
W11230932 Whirlpool Bracket Mounting
15
8053505 Whirlpool Oven Shield
16
W10901176 Whirlpool Bracket Assembly
←
