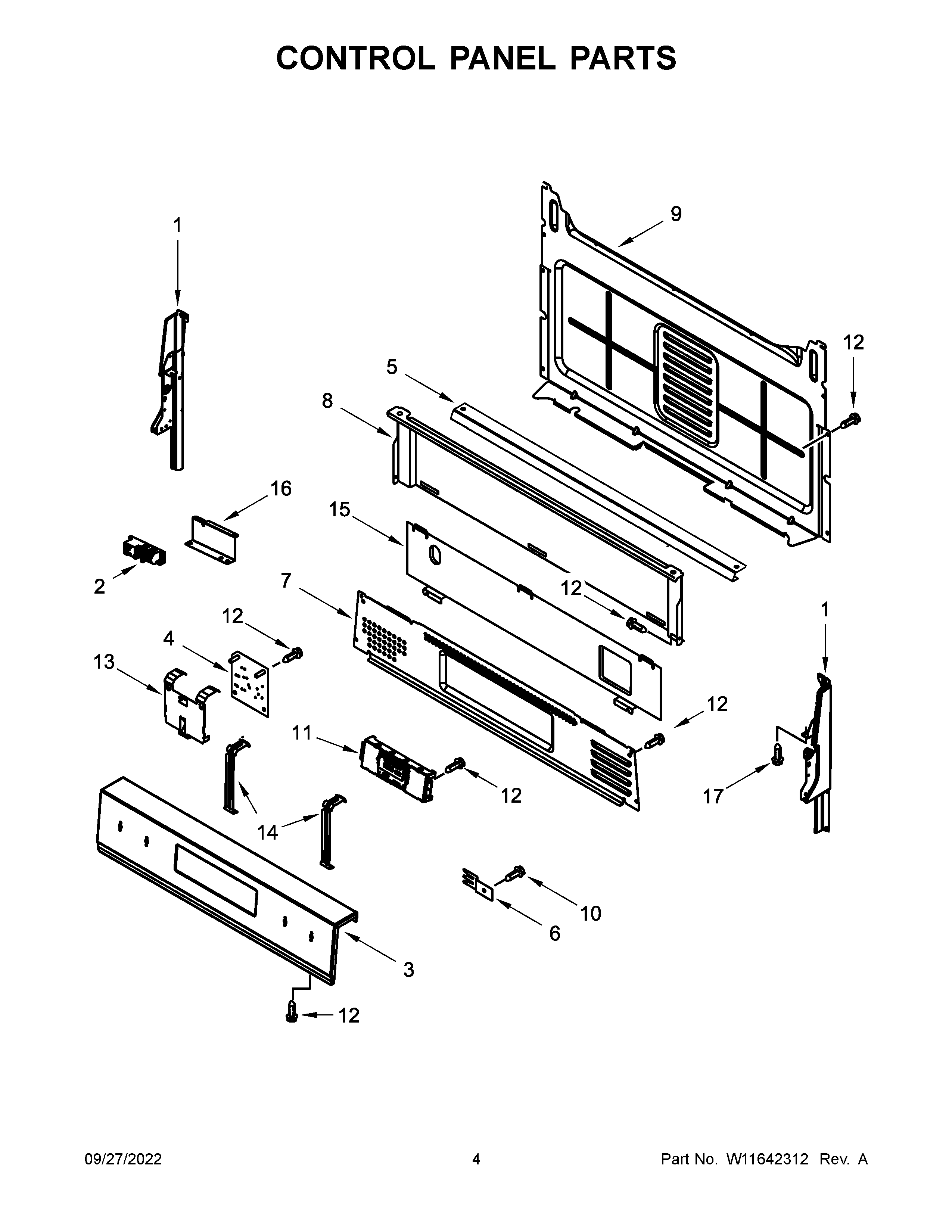

AGR6603SFW7 03 – CONTROL PANEL PARTS

Products

Position	Product
1A	W11219365 Whirlpool Panel Endcap
1C	W11219370 Whirlpool Endcap Panel
1	W11219664 Whirlpool Endcap Panel
1B	W11219665 Whirlpool Panel Endcap
2	WPW10110491 Whirlpool Spark Module
3A	PANEL, CONSOLE (WHITE)
3	W11231173 Whirlpool Control Panel
4	W11162730 Whirlpool Spark Module
5	W10516123 Whirlpool Mounting Bracket
6	8523412 Whirlpool Mounting Bracket
7	W10198745 Whirlpool Rear Cover
8	W10192841 Whirlpool Heat Shield
9	COVER, BACK
10	WP3196557 Whirlpool Screw
11	W11620563 Whirlpool Electronic Control Board + Core
11A	W11620729-includeCORE Whirlpool W11620729 Refrigerator Electronic Control Board + Core
12	SCREW
13	W10516463 Whirlpool Mounting Bracket
14	W11230932 Whirlpool Bracket Mounting
15	8053505 Whirlpool Oven Shield
16	W10901176 Whirlpool Bracket Assembly
17	WP3196175 Whirlpool Screw
