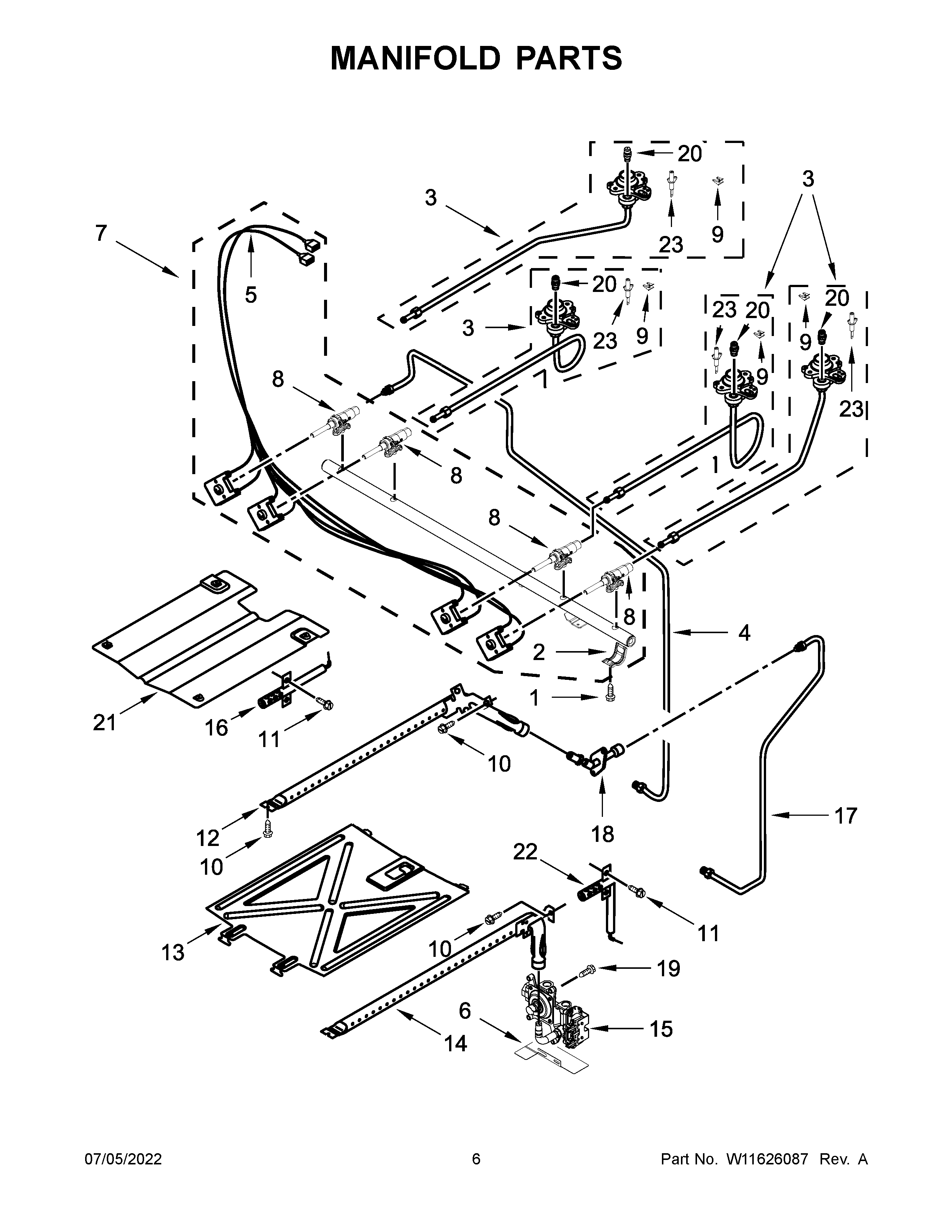

AGR6603SMS0 04 – MANIFOLD PARTS

Products

Position	Product
NI	WPW10400495 Whirlpool Orifice Assembly
NI	W11126051 Whirlpool Conversion Kit
NI	W11569688 Whirlpool Orifice
NI	W10758273 Whirlpool Orifice
NI	CABINET (NOT A SERVICEABLE PART)
NI	WPW10182767 Whirlpool Wire Tie
1	SCREW, VALVE
2	W10949105 Whirlpool Mounting Bracket
3	W11459253 Whirlpool Orifice Holder
3A	ORIFICE HOLDER ASSEMBLY (LEFT REAR)
3B	W11459255 Whirlpool Orifice Holder
3C	W11459256 Whirlpool Dishwasher Orifice Holder
4	W11680399 Whirlpool Gas Tubing
5	W11701337 Whirlpool Wire Harness
6	W10224921 Whirlpool Bracket Mounting
7	MANIFOLD ASSEMBLY
8	VALVE-BRNR
8A	W11509686 Whirlpool Burner Valve
8B	W11509687 Whirlpool Burner Valve
9	W11684564 Whirlpool Clip Assembly
10	3196265 Whirlpool Oven Screw
11	W11684507 Whirlpool Screw
12	WP8054078 Whirlpool Broiler Burner
13	WPW10184491 Whirlpool Burner Baffle
14	WP9758078 Whirlpool Oven Burner
15	W11449506 Whirlpool Gas Valve
16	WPW10333842 Whirlpool Oven Igniter
17	W10420040 Whirlpool Gas Tubing
18	W11435700 Whirlpool Fitting Component
19	WP3400016 Whirlpool Screw Assembly
20A	W11485873 Whirlpool Orifice
20B	W11712434 Whirlpool Orifice
20	W11700316 Whirlpool Orifice
21	W10137062 Whirlpool Burner Baffle
22	W11524031 Whirlpool Oven Igniter
23	W11453940 Whirlpool Surface Igniter
23A	W11453920 Whirlpool Surface Igniter
