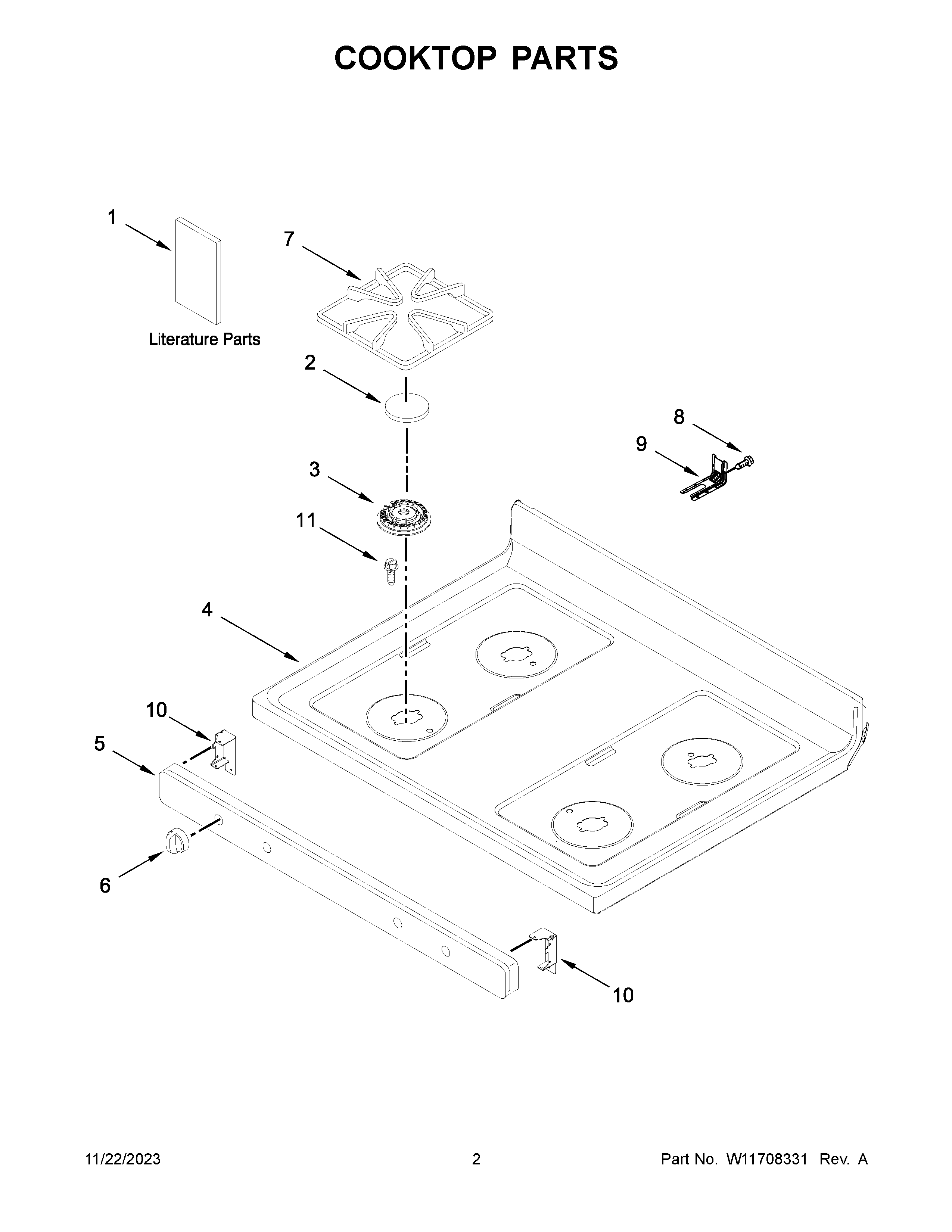

AGR6603SMS1 02 – COOKTOP PARTS

Products

Position	Product
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	W11645866 Whirlpool Wire Harness
NI	W11457167 Whirlpool Wire Harness
NI	W10334923 Whirlpool Clip
NI	3196896 Whirlpool Clip
NI	CLAMP, WIRE
NI	3400964 Whirlpool Oven Clip
NI	16515 Whirlpool Clip
NI	W11244557 Whirlpool Screw
1	OWNERS MANUAL
1A	QUICK START GUIDE
2	W11455147 Whirlpool Surface Burner Cap
3B	W11435657 Whirlpool Burner Head
3	W11435630 Whirlpool Oven Burner Head
3A	W11435659 Whirlpool Burner Head
4	W11475519 Whirlpool Cooktop
5	8523855 Whirlpool Oven Manifold Panel
6	KNOB, CONTROL (BLACK)
7	W10915784 Whirlpool Grate Kit
8	SCREW, ANTI-TIP KIT
9	W11447673 Whirlpool Range Tip Anchor
10	8523249 Whirlpool Oven Support Bracket
11	W11241230 Whirlpool Screw
