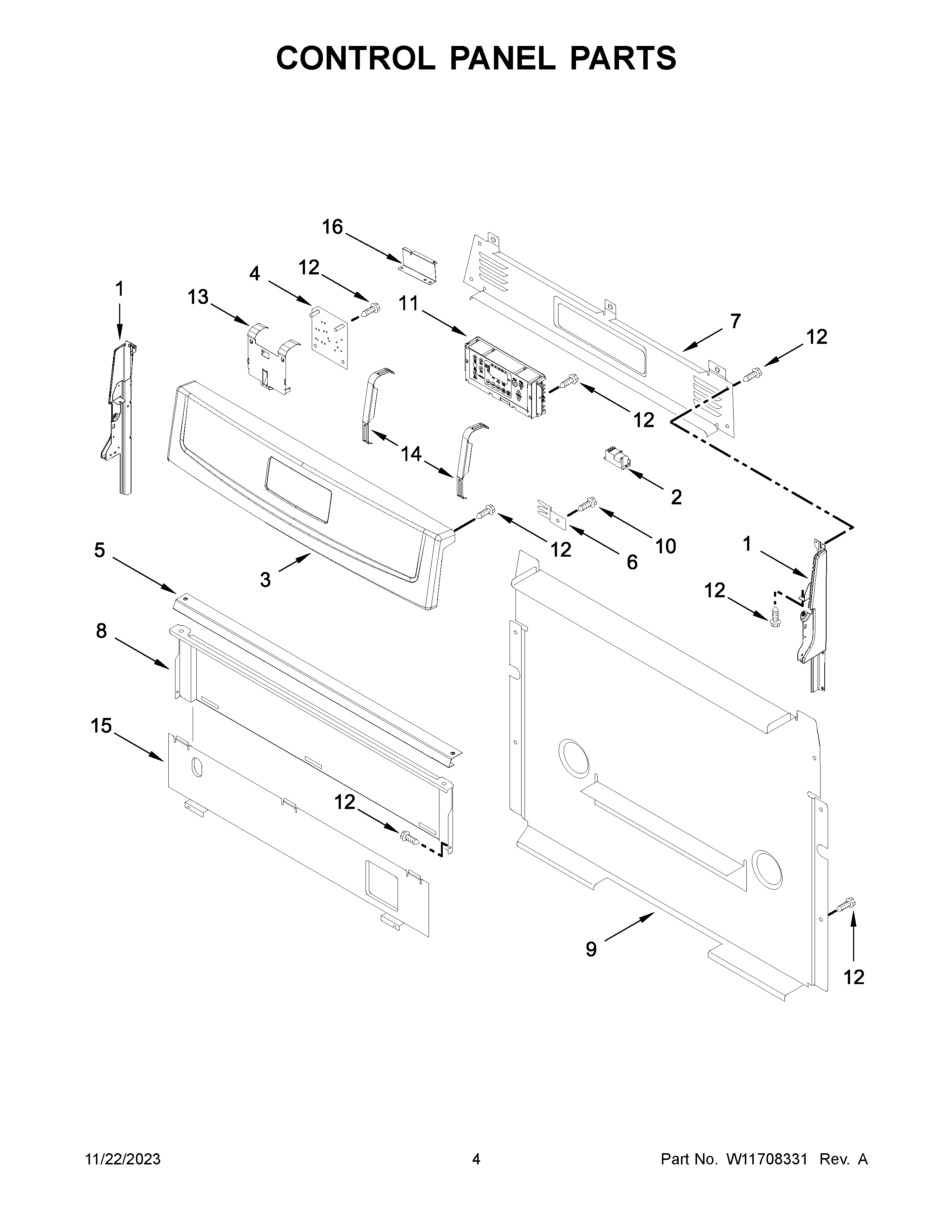

AGR6603SMS1 03 – CONTROL PANEL PARTS

AGR6603SMS1 03 – CONTROL PANEL PARTS

Written by

in

AGR6603SMS1 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219664 Whirlpool Endcap Panel
1AW11219665 Whirlpool Panel Endcap
2WPW10110491 Whirlpool Spark Module
3W11219672 Whirlpool Control Panel
4W11162730 Whirlpool Spark Module
5W10516123 Whirlpool Mounting Bracket
68523412 Whirlpool Mounting Bracket
7W10198745 Whirlpool Rear Cover
8W10192841 Whirlpool Heat Shield
9COVER, BACK
10WP3196557 Whirlpool Screw
11W11620563 Whirlpool Electronic Control Board + Core
12SCREW
13W10516463 Whirlpool Mounting Bracket
14W11230932 Whirlpool Bracket Mounting
158053505 Whirlpool Oven Shield
16W10901176 Whirlpool Bracket Assembly
