AGS1740BDQ 01 – BODY

AGS1740BDQ 01 – BODY

Written by

in

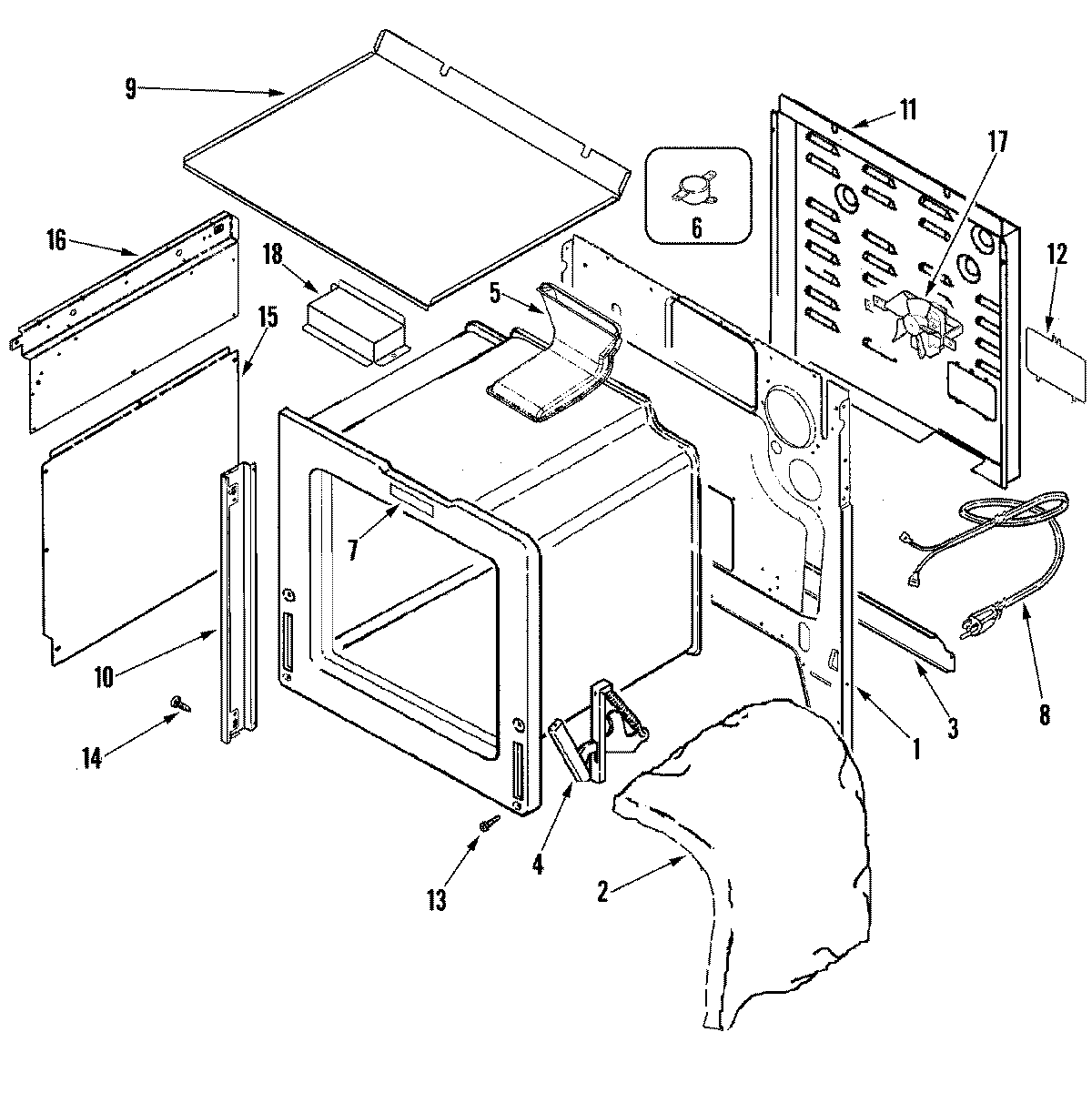

AGS1740BDQ 01 – BODY

Products

PositionProduct
1MAY 74010949
2MAY 74010887
3EXTENSION, MAIN BACK
4WP74011140 Whirlpool Oven Hinge
5MAY 74010959
6MAY 74010904
7PLUG, LOCK SLOT
8MAY 74004295
9MAY 74010906
10TRIM, SIDE (BSQ)
114005F810-51 Whirlpool Access Cover
12COVER, TERMINAL BLOCK
13WP4159193 Whirlpool Screw
14WP74003976 Whirlpool Screw
15SHEILD, LOWER SIDE
162618F206-51 Whirlpool Panel
16PANEL, SHIELD (LT)
17WPW10586440 Whirlpool Blower Fan
18COVER, DOOR LATCH
