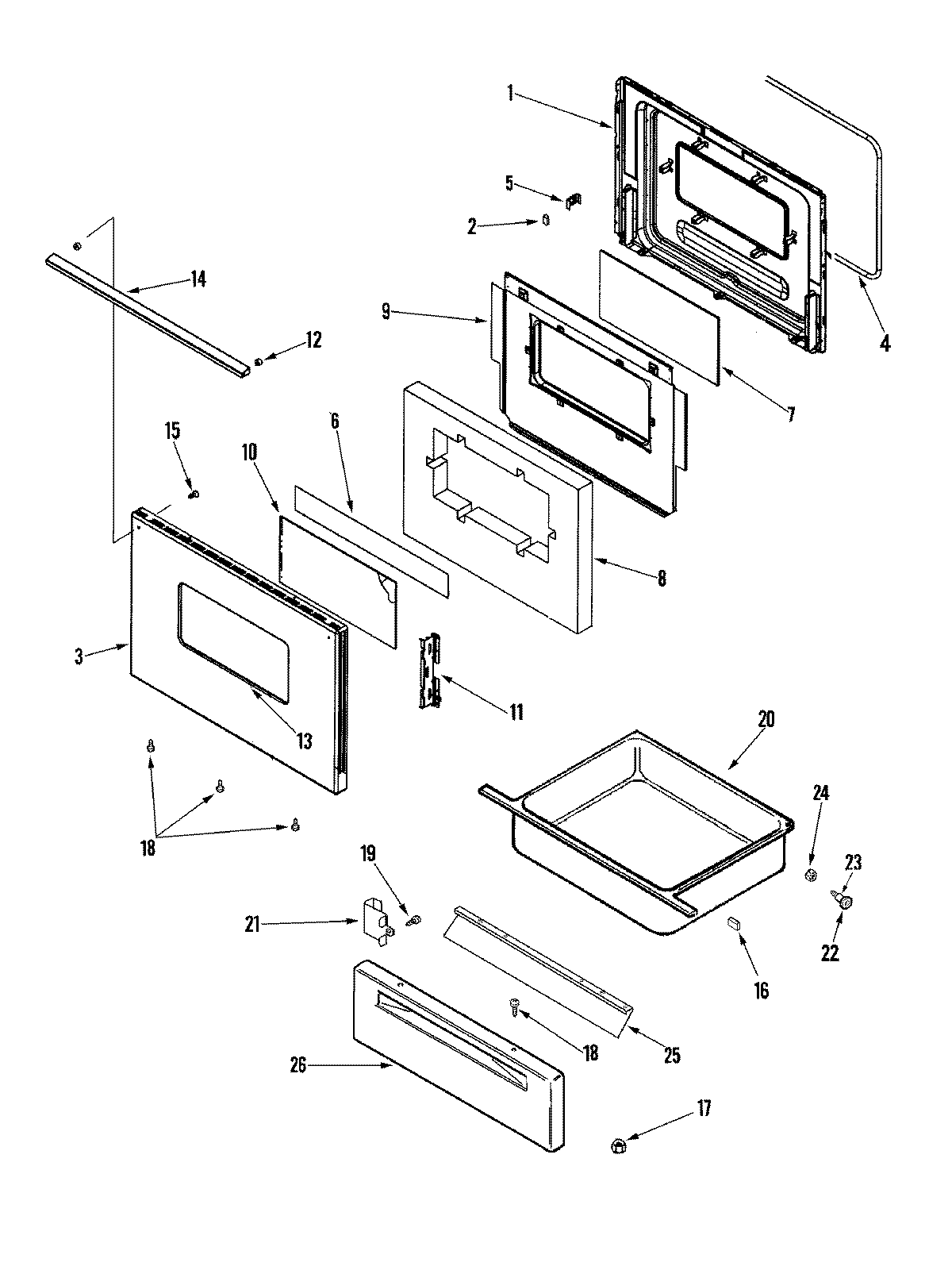

AGS1740BDQ 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 74009280
2	WP74004224 Whirlpool Tape
3	MAY 74011026
4	WP7212P043-60 Whirlpool Oven Door Seal Gasket
5	CLIP, DOOR
6	TAPE, FOIL (3“ WIDE)
7	MAY 74009281
8	MAY 74001842
9	BAFFLE, OVEN DOOR
10	MAY 74001072
11	MAY 74003048
12	WP74005058 Whirlpool Spacer Assembly
13	MAY 7201P017-60
14	MAY 74007089
15	WP3387230 Whirlpool Screw
16	WP74005546 Whirlpool RU Spacer
17	74005230 Whirlpool Oven Lock Nut (8-32)
18	WP74009541 Whirlpool Screw Assembly
19	SCREW
20	DRAWER, STORAGE
21	MAY 74010896
22	WP74004078 Whirlpool Door Roller
23	SHAFT, STORAGE DRAWER ROLLER
24	WP488130 Whirlpool Air Conditioner Nut
25	LINING, DRAWER PANEL
26	PANEL, DRAWER (BSQ)
