AGS3760BDB 01 – BODY

AGS3760BDB 01 – BODY

Written by

in

AGS3760BDB 01 – BODY

Products

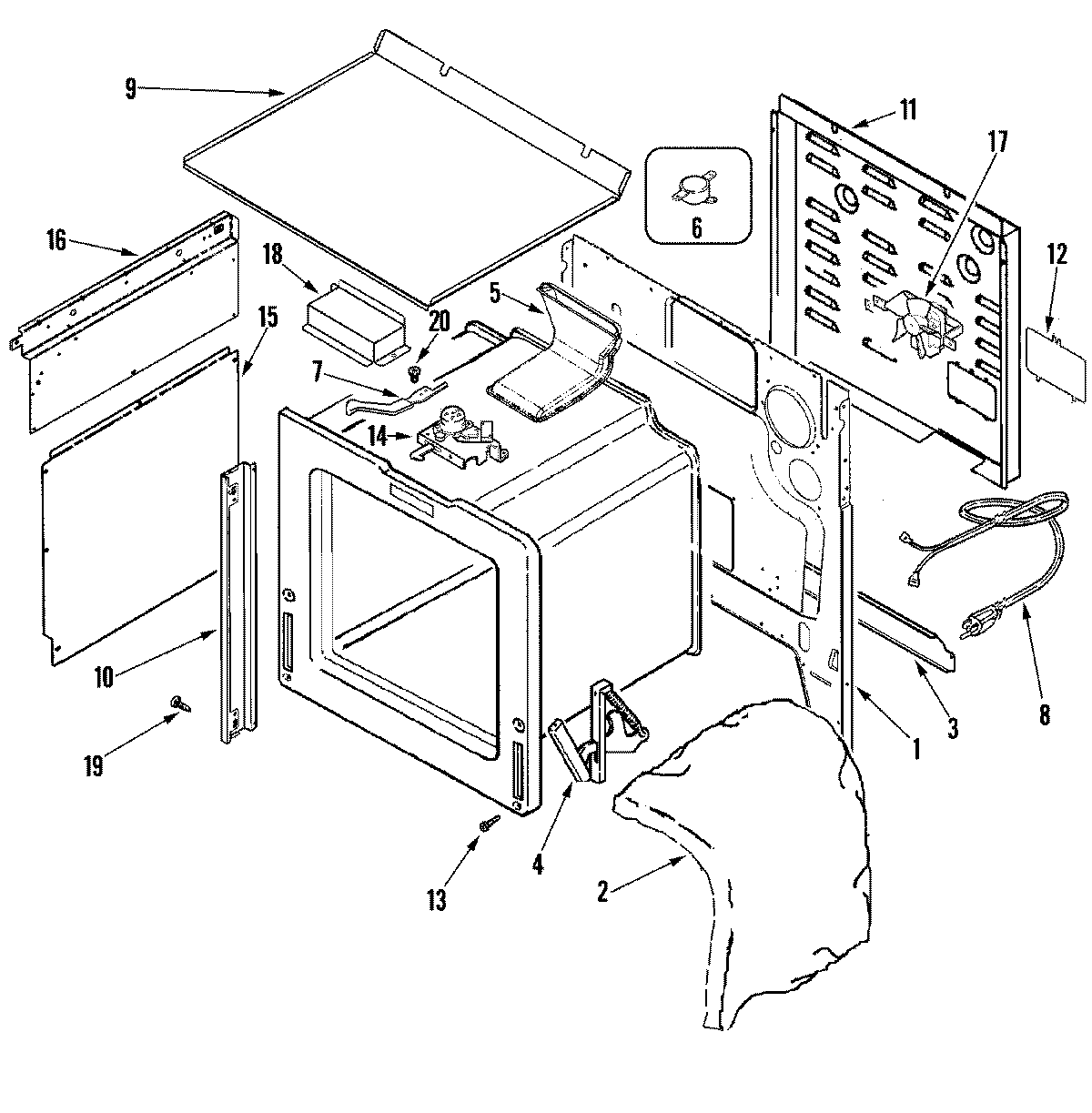

PositionProduct
1MAY 74010949
2INSULATION, WRAPPER
3EXTENSION, MAIN BACK
474011142 Whirlpool Stove Range Oven Door Hinge and Spring
5MAY 74010959
6MAY 74010904
7LEVER, LATCH (BLK)
8MAY 74004295
9MAY 74010906
10WP3608F138-70 Whirlpool Side Trim
114005F810-51 Whirlpool Access Cover
12COVER, TERMINAL BLOCK
13WP4159193 Whirlpool Screw
14MAY 74009600
15SHEILD, LOWER SIDE
16PANEL, SHIELD (LT)
162618F206-51 Whirlpool Panel
17WPW10586440 Whirlpool Blower Fan
18COVER, DOOR LATCH
19WP74003976 Whirlpool Screw
2074003975 Whirlpool Screw P1 (8ABX3/8-BLK)
