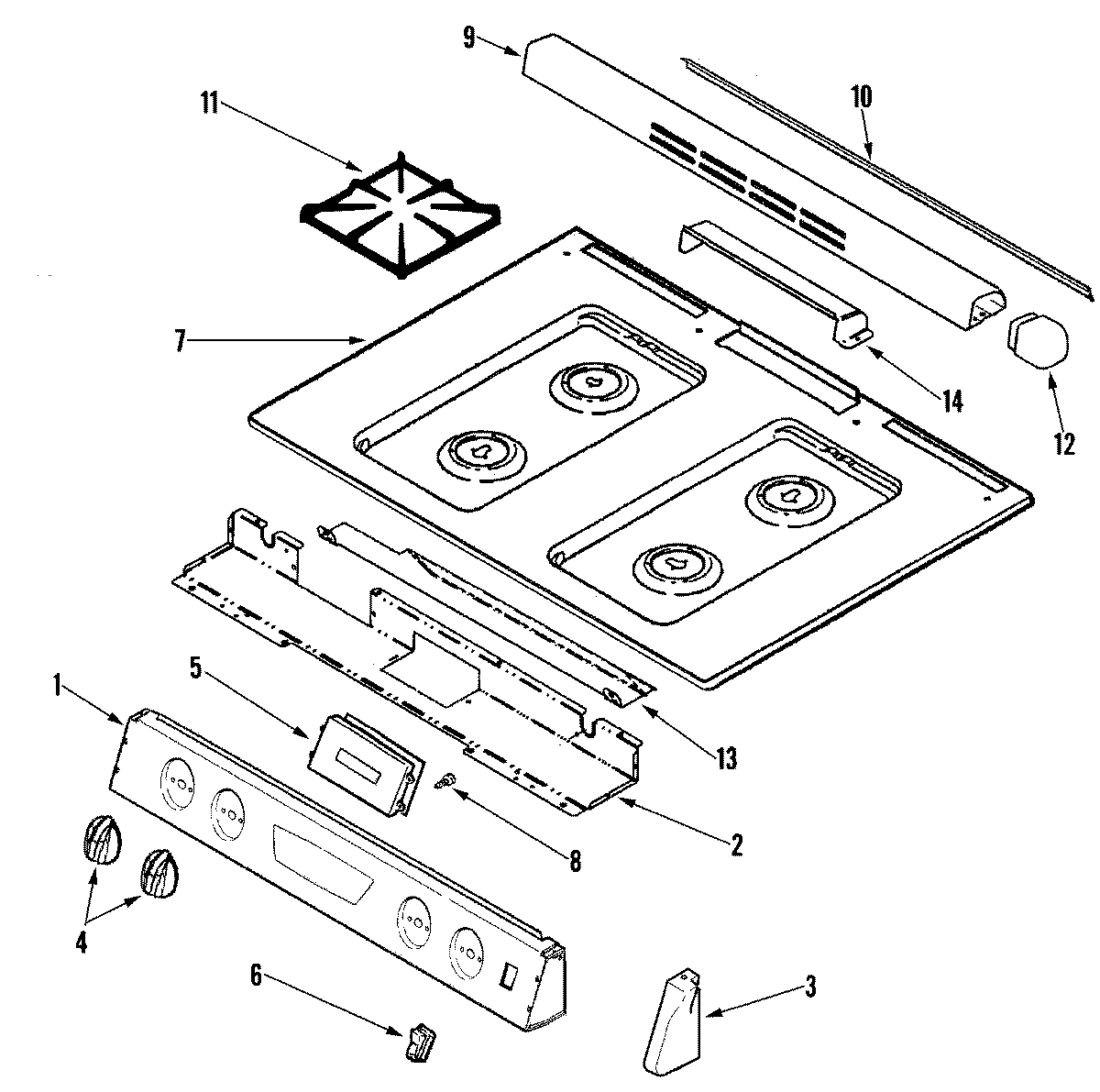

AGS3760BDQ 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

Products

Position	Product
1	MAY 74011247
3	CAP, END (BSQ-RT)
3	CAP, END (BSQ-LT)
4	MAY 74010928
5	MAY 74010701
5	MAY 74010979
6	74008765 Whirlpool Range Oven Rocker Switch Bisque
7	MAY 74011256
8	WP74004005 Whirlpool Screw
9	MAY 74010947
10	MAY 7201P061-60
11	Grate, Burner (4) (Taupe)
12	MAY 74004422
12	MAY 74004423
13	SHIELD, CONTROL
14	BAFFLE,VENT COVER
