AGS3760BDQ 04 – GAS CONTROLS

AGS3760BDQ 04 – GAS CONTROLS

Written by

in

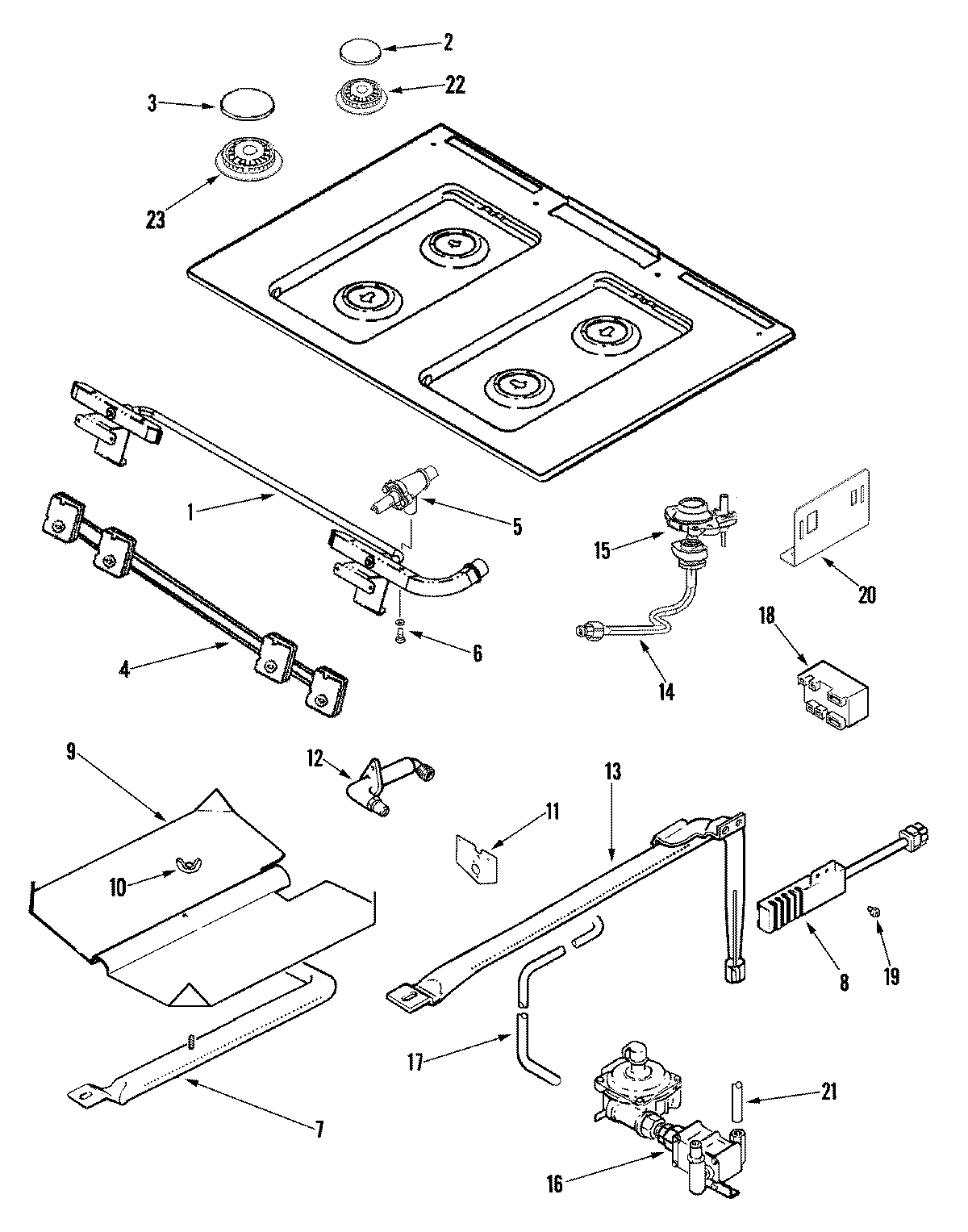

AGS3760BDQ 04 – GAS CONTROLS

Products

PositionProduct
1MAY 74010965
2WP74007419 Whirlpool Burner Cap
3WP74007751 Whirlpool Burner Cap
4MAY 74010915
5MAY 74009451
5MAY 74009452
6MAY 74009416
7MAY 74004076
874007498 Whirlpool Range Flat Igniter
9MAY 3601F217-47
10NUT, WING
11MAY 74004307
12MAY 74010901
13MAY 74003960
13MAY 3807F446-45
14MAY 74010913
14MAY 74010912
14MAY 74010911
14MAY 74010910
15HOLDER, ORIFICE (9.2K)
15WPW10110378 Whirlpool Surface Igniter
15WPW10407680 Whirlpool Orifice Holder
15HOLDER, ORIFICE (12K)
16MAY W10130932
17MAY 74004408
188215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module
19SCREW (10-24X5/16-NI)
20SUPPORT, SPARK MODULE
21MAY 74010944
22WPW10406243 Whirlpool Burner Head Auxiliary 6K
23WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
