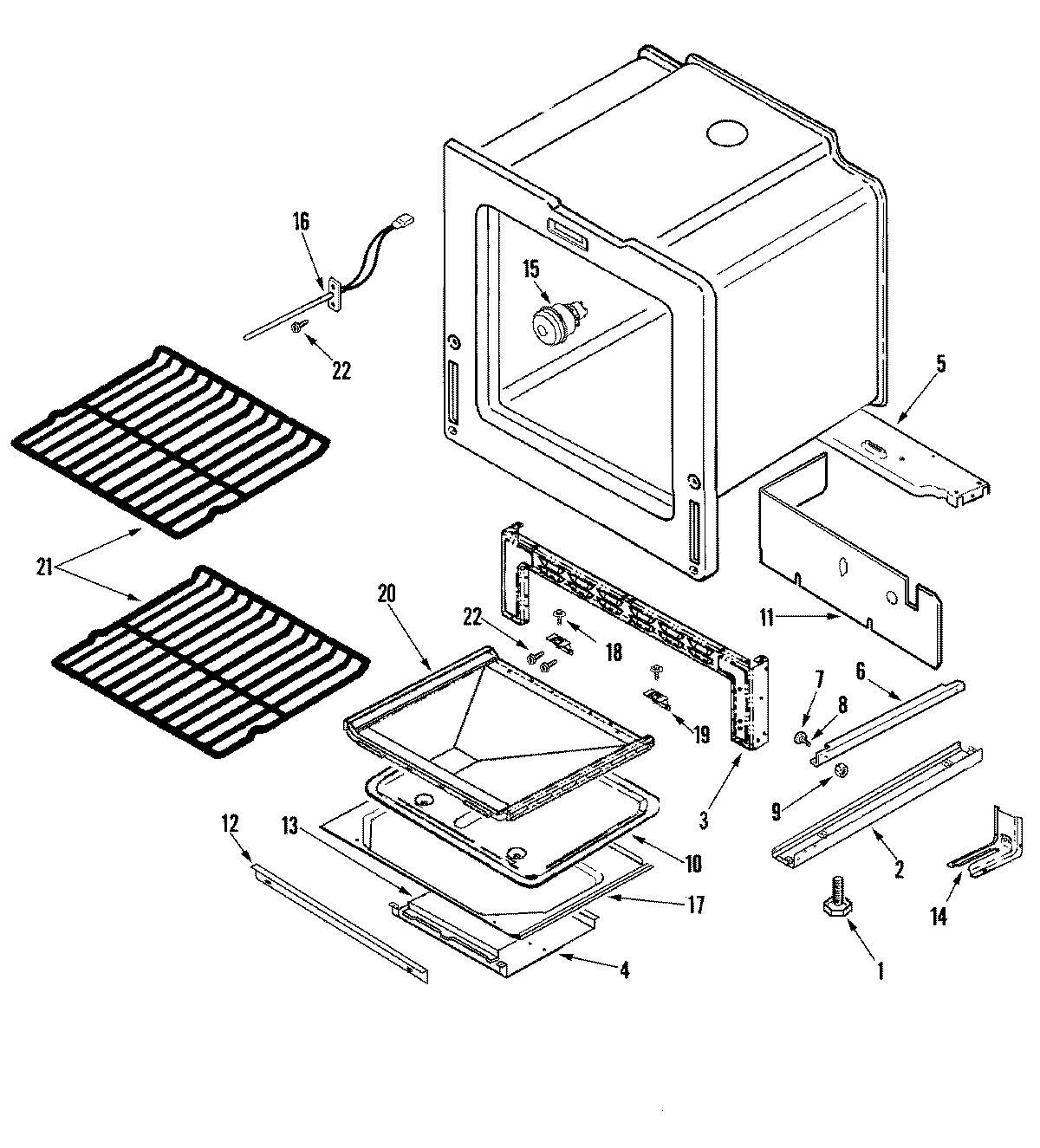

AGS3760BDQ 05 – OVEN/BASE

Products

Position	Product
1	WP74010805 Whirlpool Screw
2	4020W035-80 Whirlpool Bottom PE
3	PEDESTAL, FRONT
4	MAY 74006591
5	SUPPORT, VALVE REGULATOR
6	RUNNER, DRAWER
7	WP74004078 Whirlpool Door Roller
8	SHAFT, STORAGE DRAWER ROLLER
9	74005230 Whirlpool Oven Lock Nut (8-32)
10	PAN, BAKE BURNER
11	COVER, VALVE/REGULATOR
12	BAFFLE, OVEN FRONT
13	MAY 74006574
14	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
15	RANGE ONLY 40W 120V APPL BULB
15	LAMP ASSEMBLY
16	12001655 Whirlpool Oven Sensor
17	RETAINER, BOTTOM INSULATION
17	INSULATION, OVEN BOTTOM
19	MAY 74010812
20	WP2205F054-19 Whirlpool Oven Bottom
21	WPW10282492 Whirlpool Oven Rack
22	WP74003976 Whirlpool Screw
