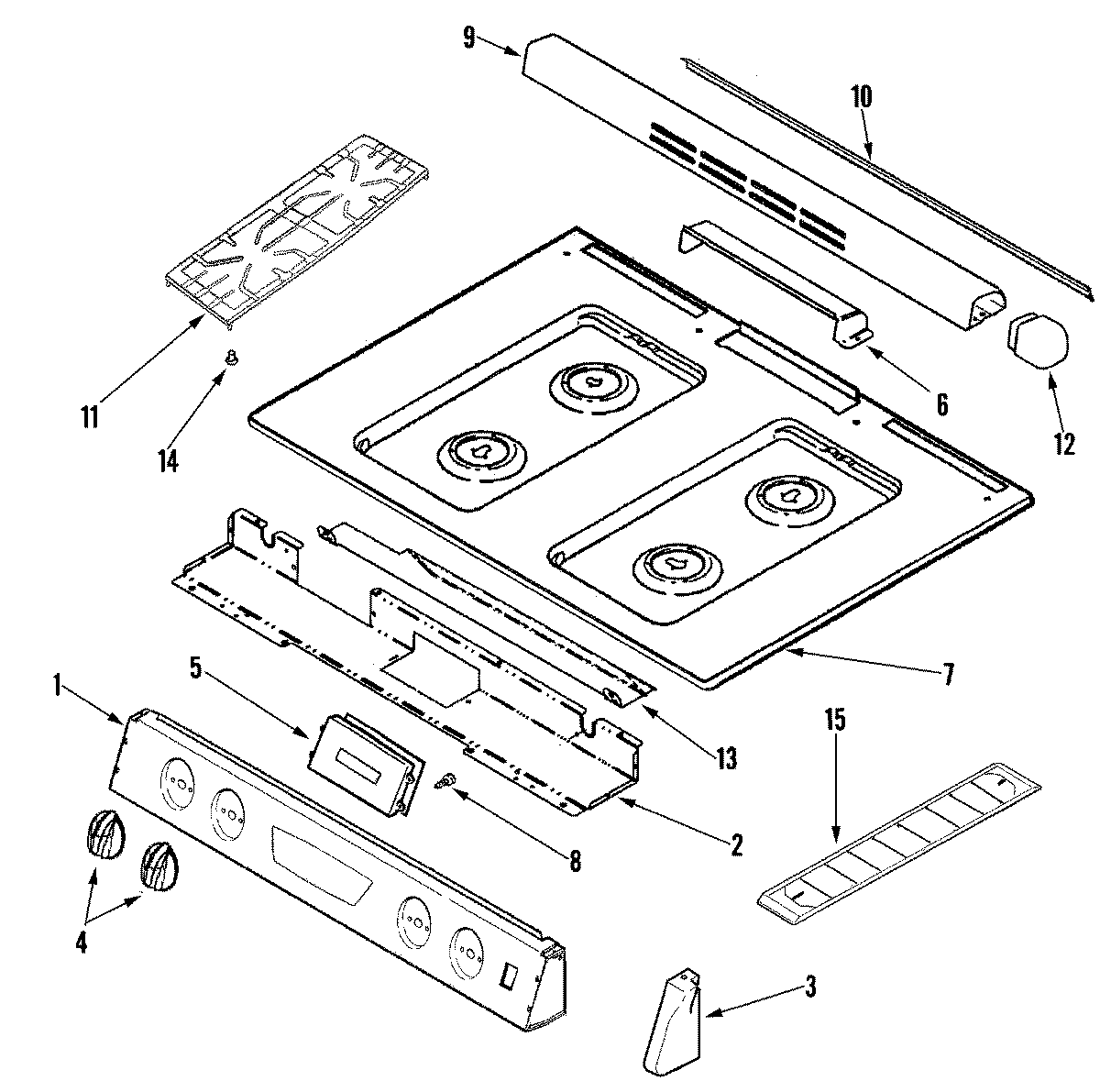

AGS5730BDB 02 – CONTROL PANEL/TOP ASSEMBLY

AGS5730BDB 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

AGS5730BDB 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74010920
2MAY 74010826
3CAP, END (BLK-LT)
3CAP, END (BLK-RT)
4MAY 74010926
5MAY 74010956
5MAY 74010979
6BAFFLE,VENT COVER
7MAY 74010916
8WP74004005 Whirlpool Screw
9MAY 74010946
10MAY 7201P061-60
11MAY 74009044
12MAY 74004365
12MAY 74010925
13SHIELD, CONTROL
14MAY M0275597
14W10919249 Whirlpool Burner Grate Foot
15MAY 74009037
