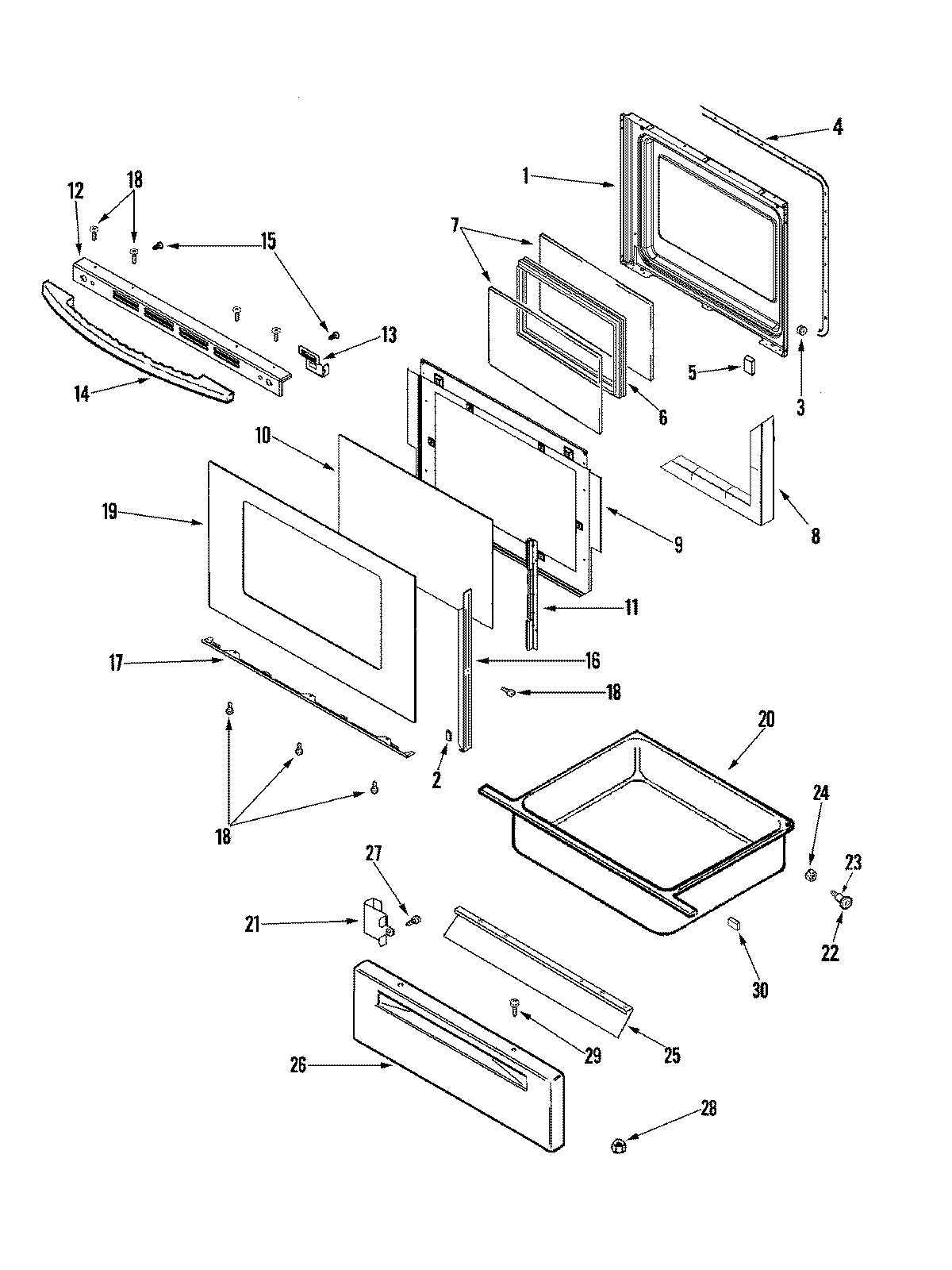

AGS5730BDB 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 74003642
2	WP74004224 Whirlpool Tape
3	NUT, SNAP (ROUND-BLK)
4	GASKT-DOOR OVEN
6	FRAME, GLASS
7	74003645 Whirlpool Range Oven Door Inner Glass
8	INSULATION, OVEN DOOR
9	MAY 74009502
10	MAY 74004857
11	MAY 74003650
11	3801F886-51 Whirlpool Mounting Bracket
12	MAY 74009689
13	3801F831-45 Whirlpool Bracket Assembly
13	3801F832-45 Whirlpool Bracket
14	HANDLE, DOOR (BLK)
15	WP74006515 Whirlpool Washer Screw
16	MAY 12002359
17	SUPPORT, GLASS (BLK)
19	MAY 12002395
20	DRAWER, STORAGE
21	MAY 74010896
22	WP74004078 Whirlpool Door Roller
23	SHAFT, STORAGE DRAWER ROLLER
24	WP488130 Whirlpool Air Conditioner Nut
25	LINING, DRAWER PANEL
26	PANEL, DRAWER (BLK)
27	SCREW
28	74005230 Whirlpool Oven Lock Nut (8-32)
29	WP98008545 Whirlpool Screw
30	WP74005546 Whirlpool RU Spacer
