AGS5730BDB 04 – GAS CONTROLS

AGS5730BDB 04 – GAS CONTROLS

Written by

in

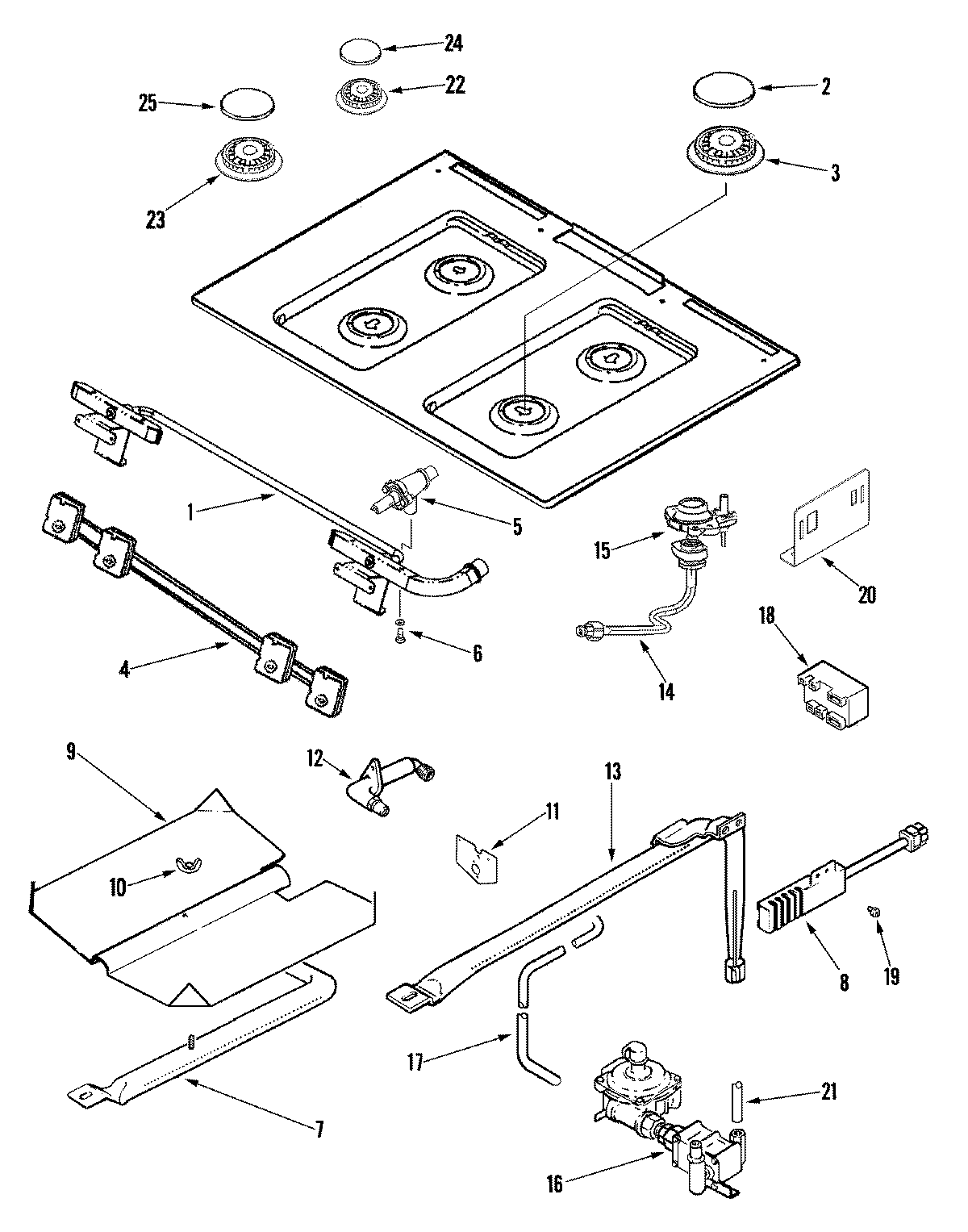

AGS5730BDB 04 – GAS CONTROLS

Products

PositionProduct
1MAY 74010965
2WPW10154101 Whirlpool Burner Cap
3WPW10406878 Whirlpool Burner Base (16K)
4MAY 74010915
5MAY 74009451
5MAY 74009452
512002270 Whirlpool Valve Kit and Screw 16K
6MAY 74009416
7MAY 74004076
874007498 Whirlpool Range Flat Igniter
9MAY 3601F217-47
10NUT, WING
11MAY 74004307
12MAY 74010901
13MAY 74003960
13MAY 3807F446-45
14MAY 74011131
14MAY 74011133
14MAY 74011132
14MAY 74011134
15HOLDER, ORIFICE (9.2K)
15WPW10110378 Whirlpool Surface Igniter
15WPW10407678 Whirlpool Orifice Holder
15WPW10407680 Whirlpool Orifice Holder
16MAY W10130932
17MAY 74004408
188215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module
19SCREW (10-24X5/16-NI)
20SUPPORT, SPARK MODULE
21MAY 74010944
22WPW10406243 Whirlpool Burner Head Auxiliary 6K
23WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
24WP3191898 Whirlpool Surface Burner Cap Black
25WP74007925 Whirlpool Burner Cap
