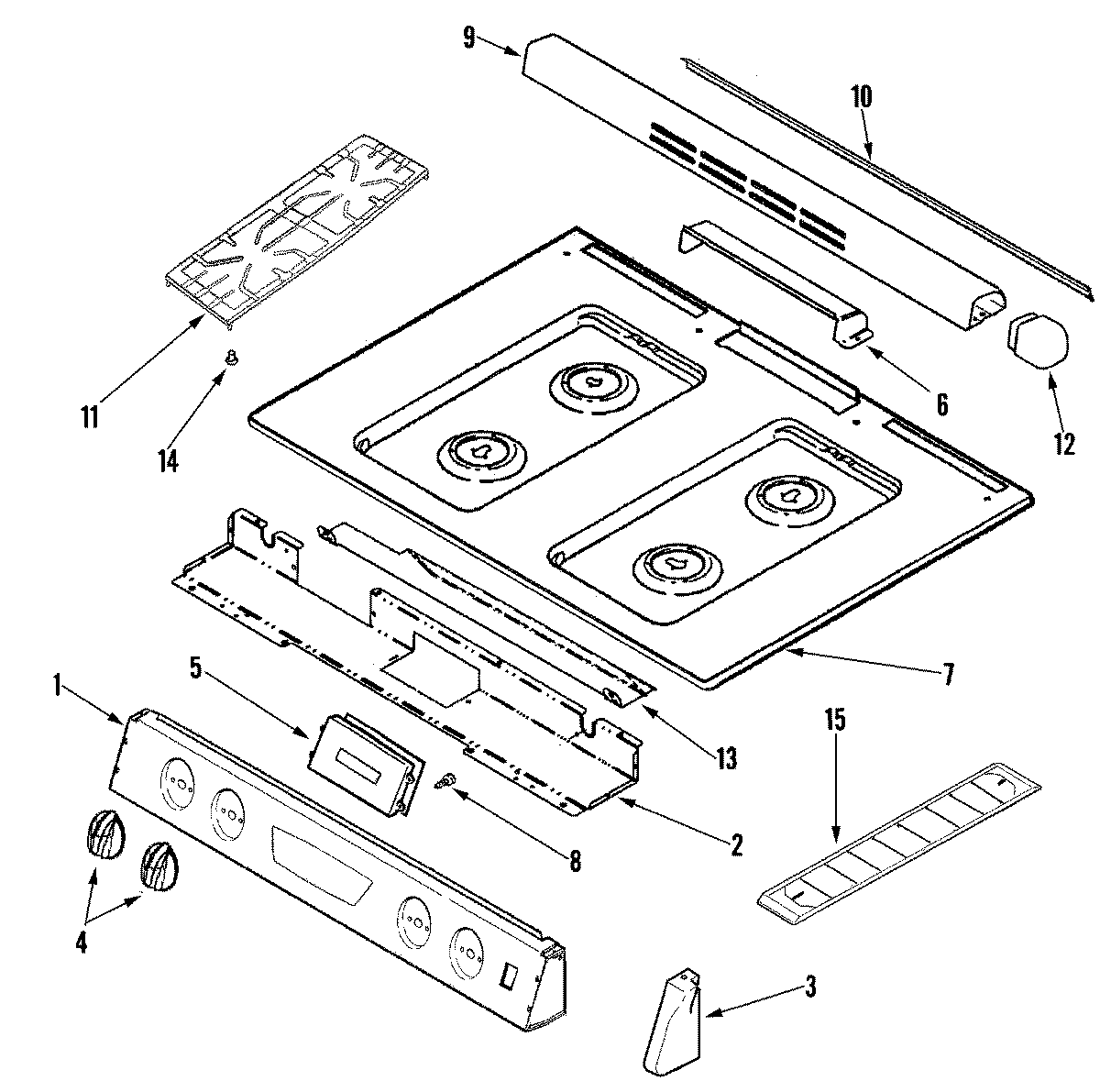

AGS5730BDQ 02 – CONTROL PANEL/TOP ASSEMBLY

AGS5730BDQ 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

AGS5730BDQ 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74010922
2MAY 74010826
3CAP, END (BSQ-RT)
3CAP, END (BSQ-LT)
4MAY 74010928
5MAY 74010979
5MAY 74010958
6BAFFLE,VENT COVER
7MAY 74010918
8WP74004005 Whirlpool Screw
9MAY 74010947
10MAY 7201P061-60
11MAY 74007864
12MAY 74004423
12MAY 74004422
13SHIELD, CONTROL
14MAY M0275597
14W10919249 Whirlpool Burner Grate Foot
15MAY 74009038
