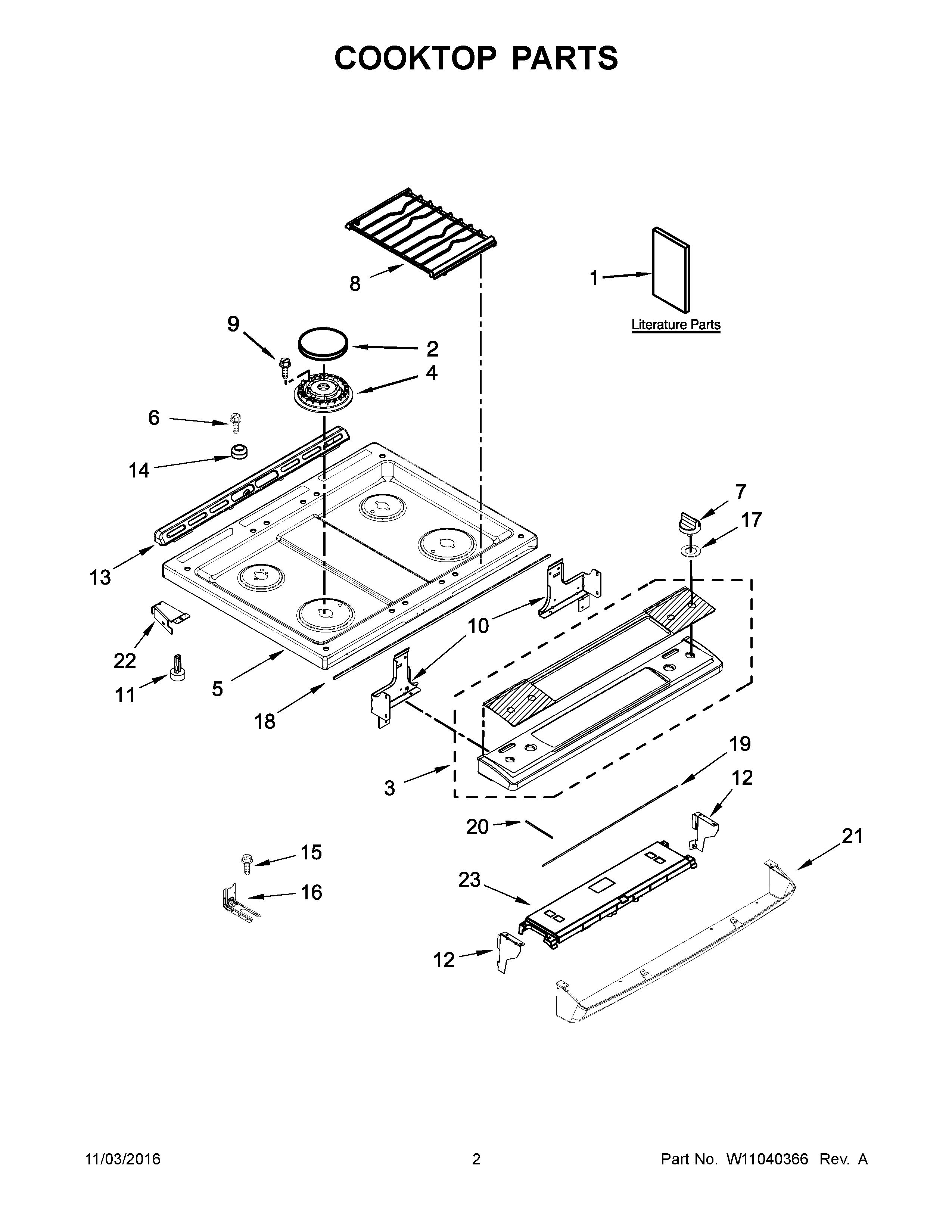

AGS6603SFS0 02 – COOKTOP PARTS

AGS6603SFS0 02 – COOKTOP PARTS

Written by

in

AGS6603SFS0 02 – COOKTOP PARTS

Products

PositionProduct
NITIE, MANIFOLD WIRE
NICLIP, HARNESS
NICLIP, WIRE
NIWIRE, GROUND
NIHARNESS, MAIN
NIHARNESS, BAKE/BROIL
NIHARNESS, CONSOLE
NILINER (NOT A SERVICEABLE PART)
NIMAY 7111P017-60
1CDIAGRAM, WIRING
1BSHEET, TECH
1ETIPS, SAFE COOKING (FRENCH)
1MAY W10842011
1AMAY W10887093
1DTIPS, SAFE COOKING (ENGLISH)
2MAY W10825881
3MAY W10825495
4BSPREADER, FLAME (RIGHT REAR)
4ASPREADER, FLAME (LEFT REAR)
4SPREADER, FLAME (LEFT FRONT & RIGHT FRONT)
5MAY W10797933
6SCREW
7MAY W10844793
8MAY W10823485
9SCREW
10MAY W10814303
10AMAY W10814304
10BMAY W10814305
11GLIDE, MAIN TOP
12ABRACKET, CONSOLE (RIGHT)
12BRACKET, CONSOLE (LEFT)
13TRIM, VENT (BLACK)
14MAY W10854253
15SCREW, ANTI-TIP KIT
16BRACKET, ANTI-TIP
17BUSHING (BLACK)
18GASKET, CONSOLE/COOKTOP
19GASKET, CONSOLE
20GASKET, CONSOLE SHORT
21MAY W10816943
22ABRACE, CORNER (RIGHT)
22BRACE, CORNER (LEFT)
23MAY W10806871
