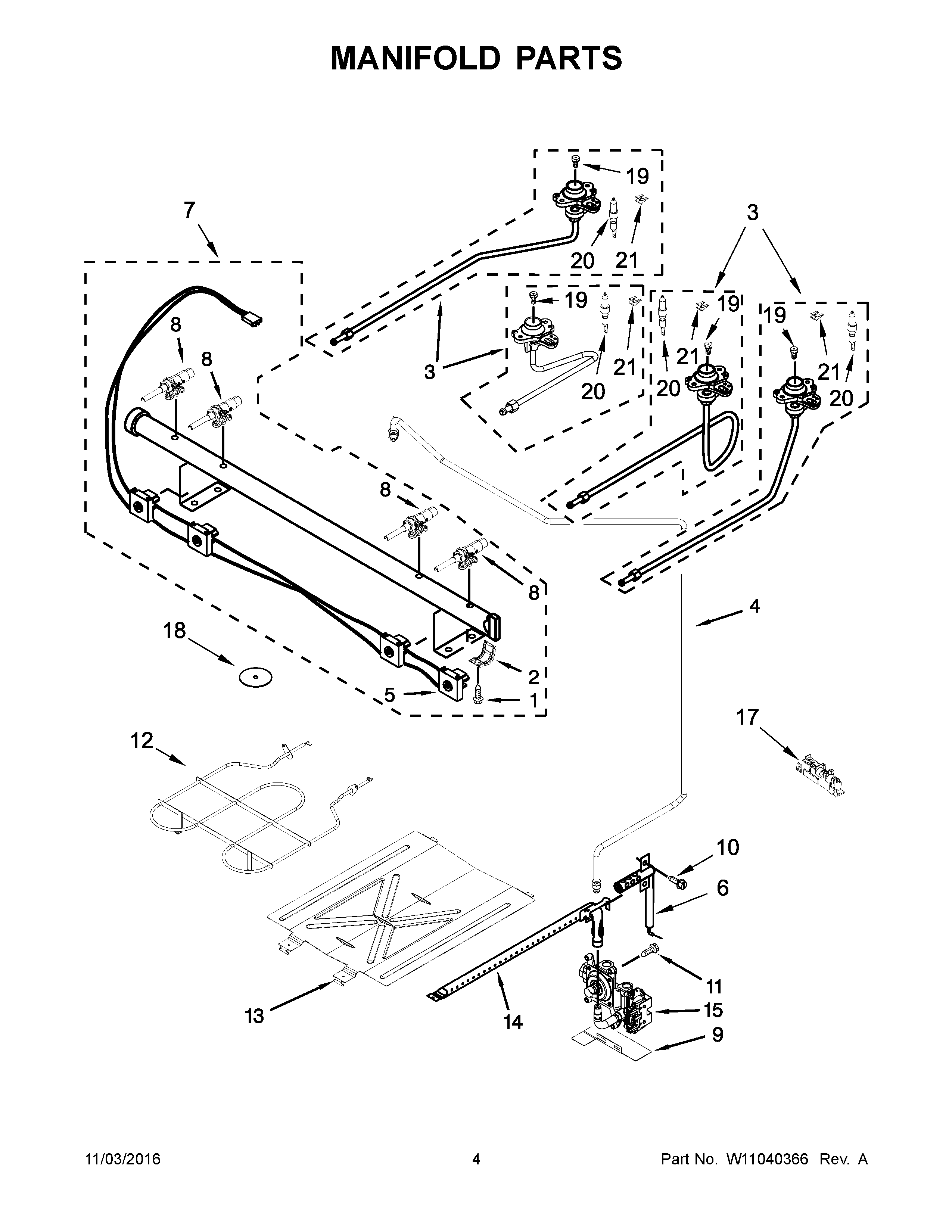

AGS6603SFS0 03 – MANIFOLD PARTS

Products

Position	Product
NI	MAY W10838119
NI	ORIFICE, LP BAKE
NI	LINER (NOT A SERVICEABLE PART)
1	SCREW
2	BRACKET, SADDLE VALVE
3A	ASSEMBLY, ORIFICE HOLDER (9.5K) (LEFT REAR)
3B	MAY W10827778
3C	ASSEMBLY, ORIFICE HOLDER (5K) (RIGHT REAR)
3	ASSEMBLY, ORIFICE HOLDER (15K) (LEFT FRONT)
4	TUBING (MANIFOLD TO REGULATOR)
5	HARNESS, SWITCH
6	ELECTRODE, BAKE
7	MAY W10902172
8A	VALVE, GAS (LEFT REAR)
8	VALVE, GAS (LEFT FRONT & RIGHT FRONT)
8B	VALVE, GAS (RIGHT REAR)
9	BRACKET, AEGIS
10	SCREW
11	MAY 3400080
12	ELEMENT, BROILER
13	SPREADER, FLAME (OVEN)
14	BURNER, BAKE
15	REGULATOR
16	SCREW
17	MODULE, SPARK
18	SEAL, SWITCH SHAFT
19	ORIFICE (LEFT FRONT, RIGHT FRONT)
19B	ORIFICE (RIGHT REAR)
19A	ORIFICE (LEFT REAR)
20B	ELECTRODE, BURNER (RIGHT FRONT)
20A	ELECTRODE, BURNER (LEFT REAR)
20	ELECTRODE, BURNER (LEFT FRONT)
20C	ELECTRODE, BURNER (RIGHT REAR)
21	SPRING, ELECTRODE
