AGS6603SFS0 05 – DOOR PARTS

AGS6603SFS0 05 – DOOR PARTS

Written by

in

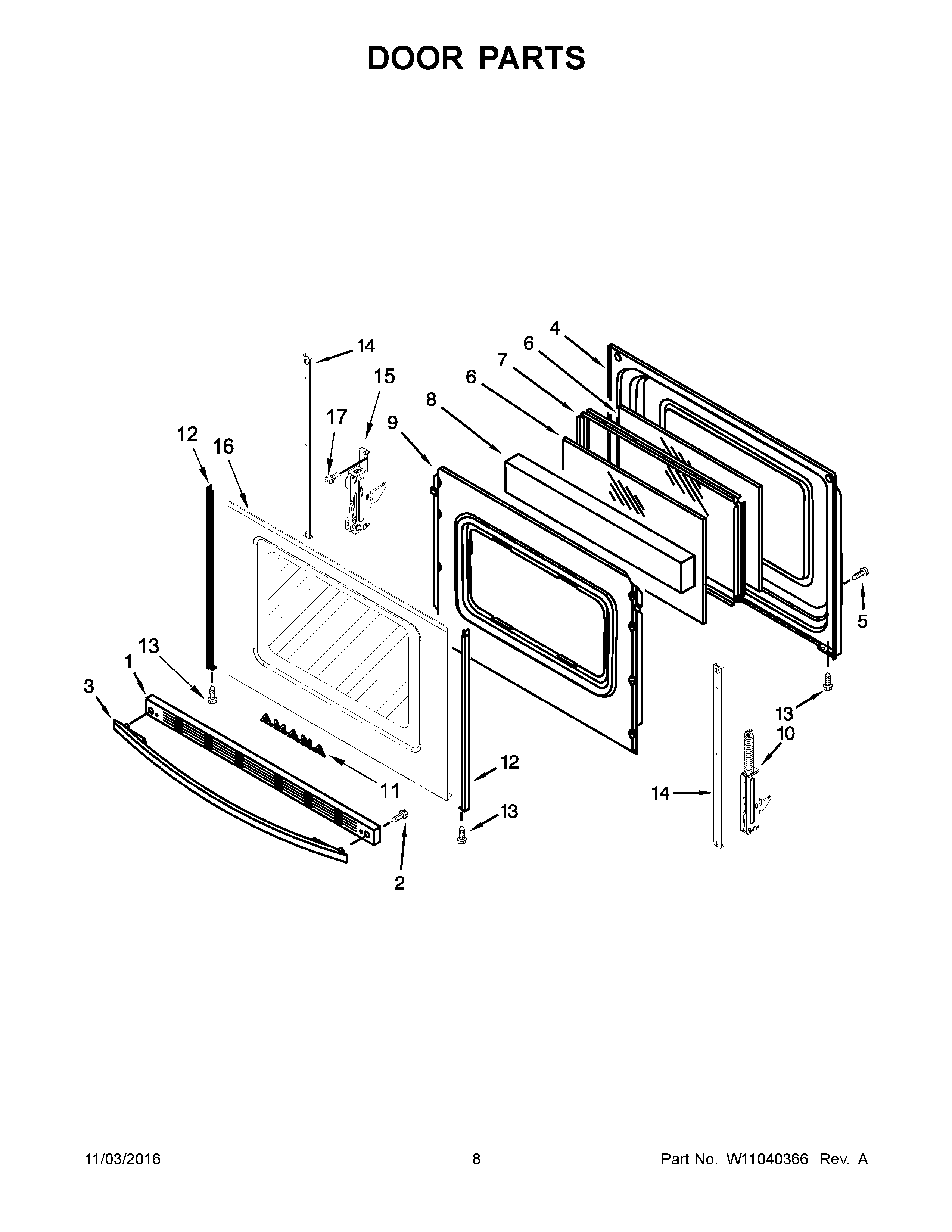

AGS6603SFS0 05 – DOOR PARTS

Products

PositionProduct
1TRIM, TOP (BLACK)
2SCREW
3HANDLE, DOOR (STAINLESS)
4LINER, DOOR
5SCREW
6GLASS, INNER
7FRAME, GLASS
8INSULATION, DOOR STRIP
9RETAINER, INSULATION
10HINGE, DOOR (ACTIVE)
11BADGE (STAINLESS)
12TRIM, SIDE (BLACK (LEFT))
12ATRIM, SIDE (BLACK (RIGHT))
13SCREW
14STRAP, DOOR
15MAY W10440013
16GLASS ASSEMBLY, OUTER DOOR (STAINLESS)
17SCREW
