AGV12ABG1 ROOM AIR CONDITIONER – Aparts

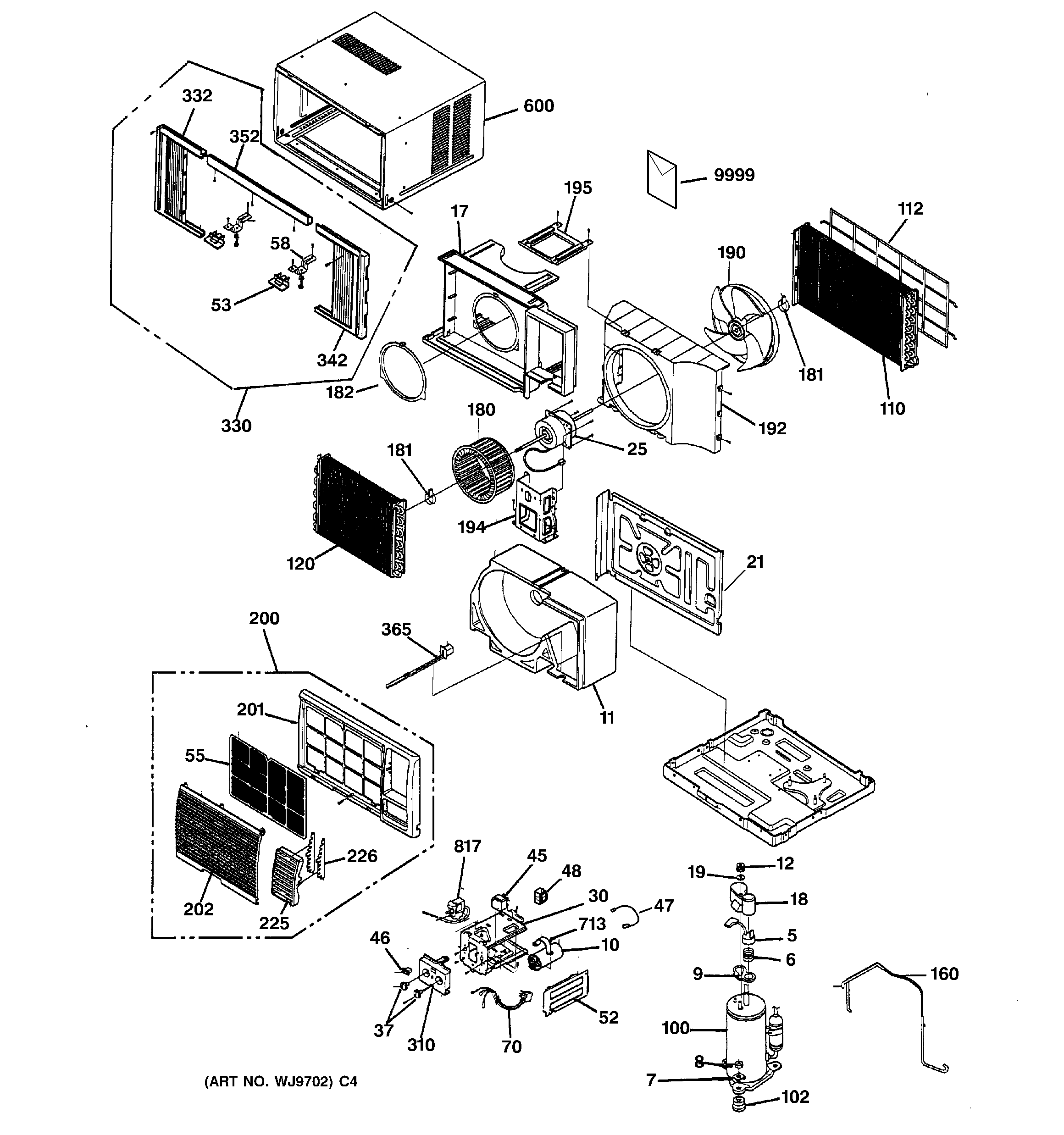

AGV12ABG1 ROOM AIR CONDITIONER

Products

Position	Product
5	OVERLOAD, COMPRESSOR
6	GEN WJ02X10017
7	GEN WJ01X10076
8	GEN WJ01X10066
9	GEN WJ43X10011
10	DUAL CAPACITOR
11	I/D FAN FRAME
12	GEN WJ01X10068
17	GEN WJ70X10013
18	GEN 3550UL002D
19	GEN WJ01X10128
21	BARRIER
25	GEN WJ94X10087
37	GEN WJ12X10041
45	GEN WJ26X10007
46	GEN WJ26X10015
47	BRACKET P.T.C
48	GEN WJ27X10032
52	COVER ASM CONTROL
53	GEN WJ05X10024
55	AIR FILTER
58	GEN WJ01X10074
70	POWER CORD ASSY
100	GEN WJ98X10063
102	COMPRESSOR BUSHING
110	GEN WJ88X10024
112	GEN WJ71X10075
120	GEN WJ87X10053
160	GEN WJ53X10023
180	I/D BLOWER WHEEL
181	GEN WJ03X10016
182	ORIFICE COVER
190	FAN ASM AXIAL
192	GEN WJ76X10028
194	GEN WJ65X10023
195	GEN WJ65X10010
200	GEN WJ71X10193
201	GRILLE FRONT
202	GEN WJ71X10194
225	GEN WJ71X10077
226	GEN WJ71X10078
310	GEN WJ07X10047
330	GEN WJ86X10009
332	GEN WJ86X10002
342	GEN WJ86X10003
352	GEN WJ66X10018
365	GEN WJ14X10010
600	OUTER CASE
713	CLAMP, CAPACITOR
817	GEN WJ28X10013
9999	GEN 49-7390
9999	GEN 31-60627
