AGW08AHG1 ROOM AIR CONDITIONER – Aparts

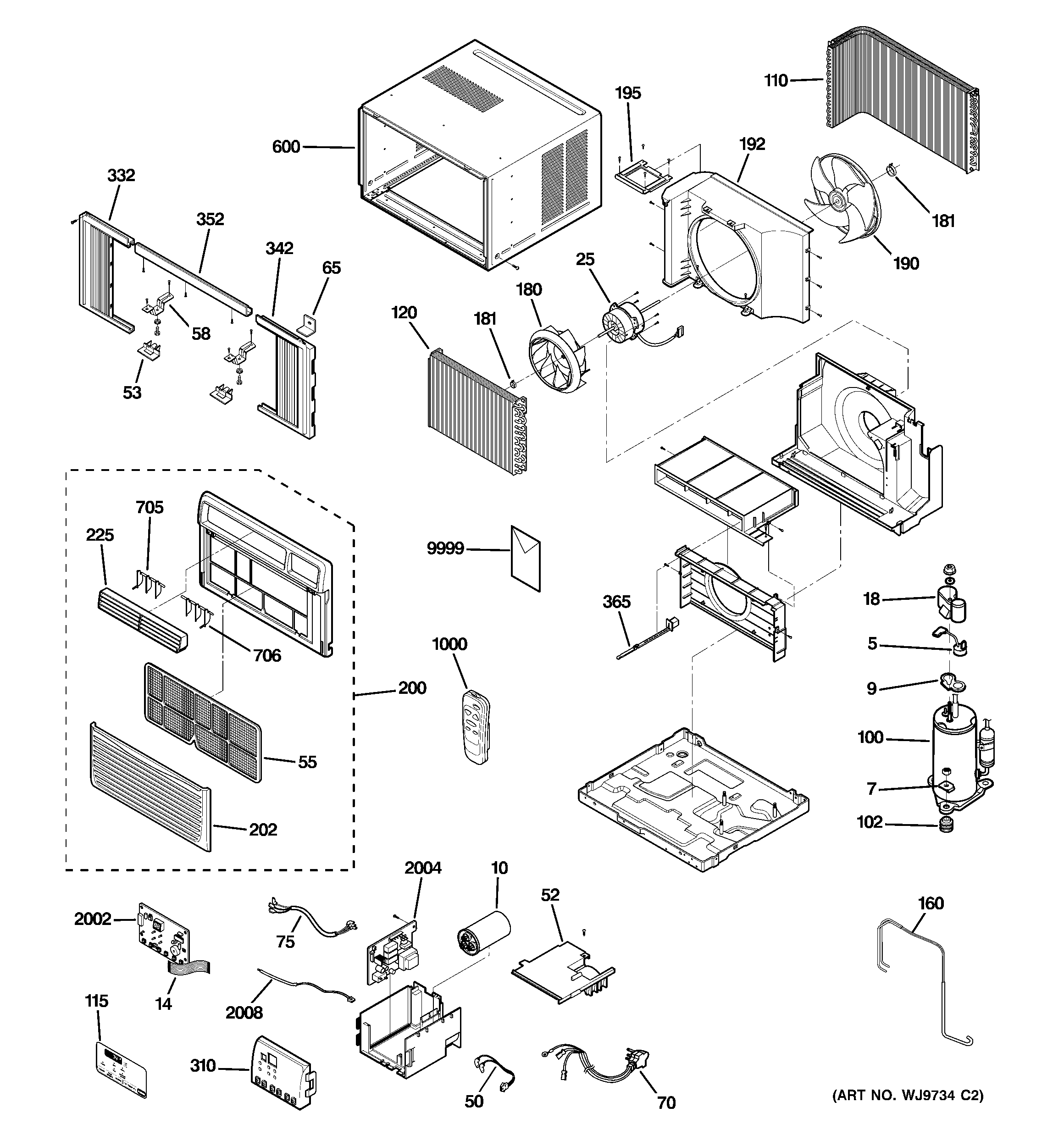

AGW08AHG1 ROOM AIR CONDITIONER

Products

Position	Product
5	GEN WJ23X10083
7	BRACKET,COMP
9	GEN WJ43X10051
10	GEN WJ20X10087
14	GEN WJ37X10051
18	GEN WJ79X10140
25	GEN WJ94X10154
50	GEN WJ37X10041
52	GEN WJ79X10088
53	GEN WJ05X10024
55	GEN WJ85X10065
58	GEN WJ01X10074
65	GEN WJ01X10145
70	GEN WJ35X10100
75	CONNECTOR ASSEMBLY
100	GEN WJ98X10188
102	GEN WJ01X10141
110	GEN WJ88X10101
115	GEN WJ07X10141
120	GEN WJ87X10168
160	GEN WJ53X10125
180	GEN WJ73X10138
181	GEN WJ03X10016
190	GEN WJ73X10024
192	GEN WJ76X10206
195	GEN WJ65X10086
200	GEN WJ71X10375
202	GEN WJ71X10317
225	GEN WJ85X10075
310	PANEL ASSEMBLY,CONTROL
332	GEN WJ86X10004
342	GEN WJ86X10005
352	GEN WJ66X10019
365	GEN WJ14X10039
600	CABINET ASSEMBLY,SINGLE
705	GEN WJ71X10408
706	GEN WJ71X10409
1000	REMOTE CONTROLLER ASSY
2002	PWB(PCB) ASSEMBLY,DISPLA
2004	PWB(PCB) ASSEMBLY,MAIN
2008	THERMISTOR ASSEMBLY
9999	GEN 49-7493
9999	GEN 31-61151
