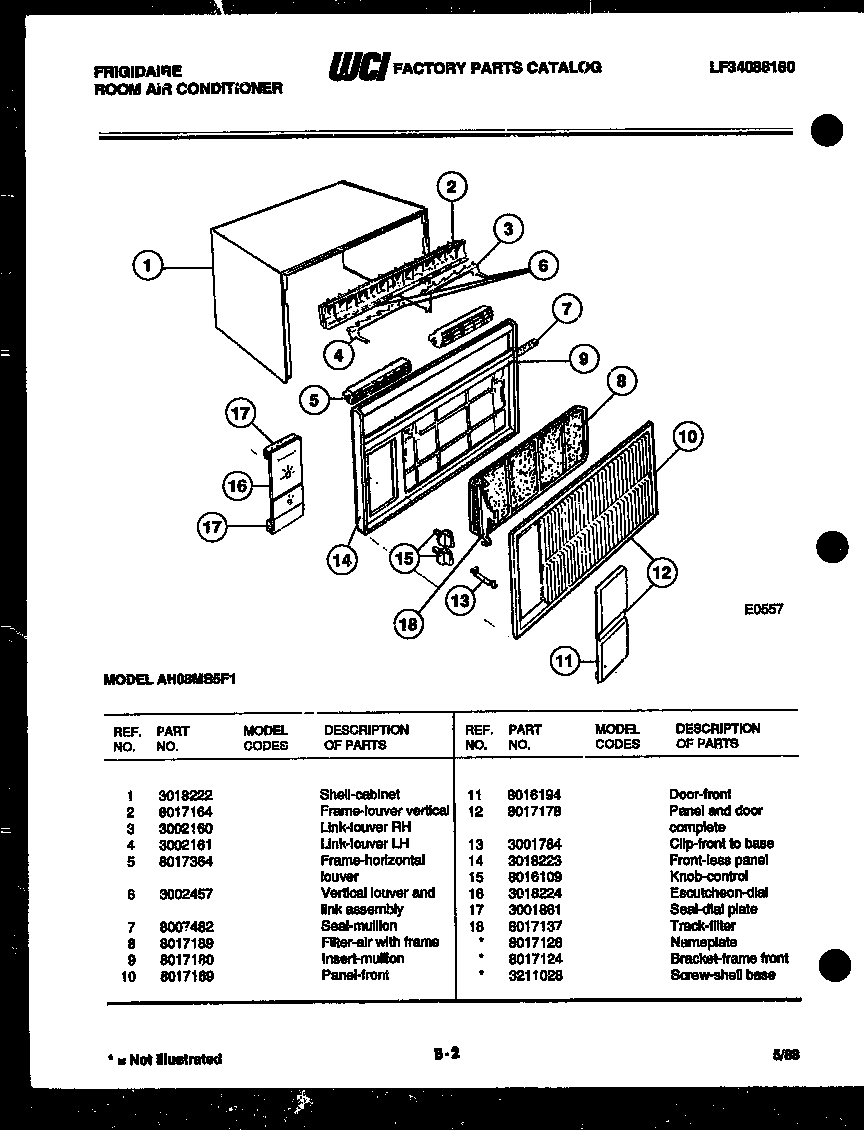

AH08MS5F1 02 – CABINET PARTS

Products

PositionProduct
*23825SCREW-STRAP FAN
*23825BRACKET-FRONT (NON-ILLUSTRATED)
*23825PLATE-NAME
1SHELL-CABINET
2FRAME-LOUVER VERTICAL
3LINK-VERT LOUVER RH
4LINK-VERT LOUVER LH
5FRAME-HORIZONTAL LOUVER
6VERTICAL LOUVER & LINK ASSY
7SEAL
8FILTER-AIR WITH FRAME
9WCI 8017180
10WCI 8017169
11DOOR, CONTROL
12WCI 8017178
13CLIP-FRONT TO BASE
14WCI 3018223
15WCI 8016109
16WCI 3018224
17WCI 3001861
18TRACK-FILTER
