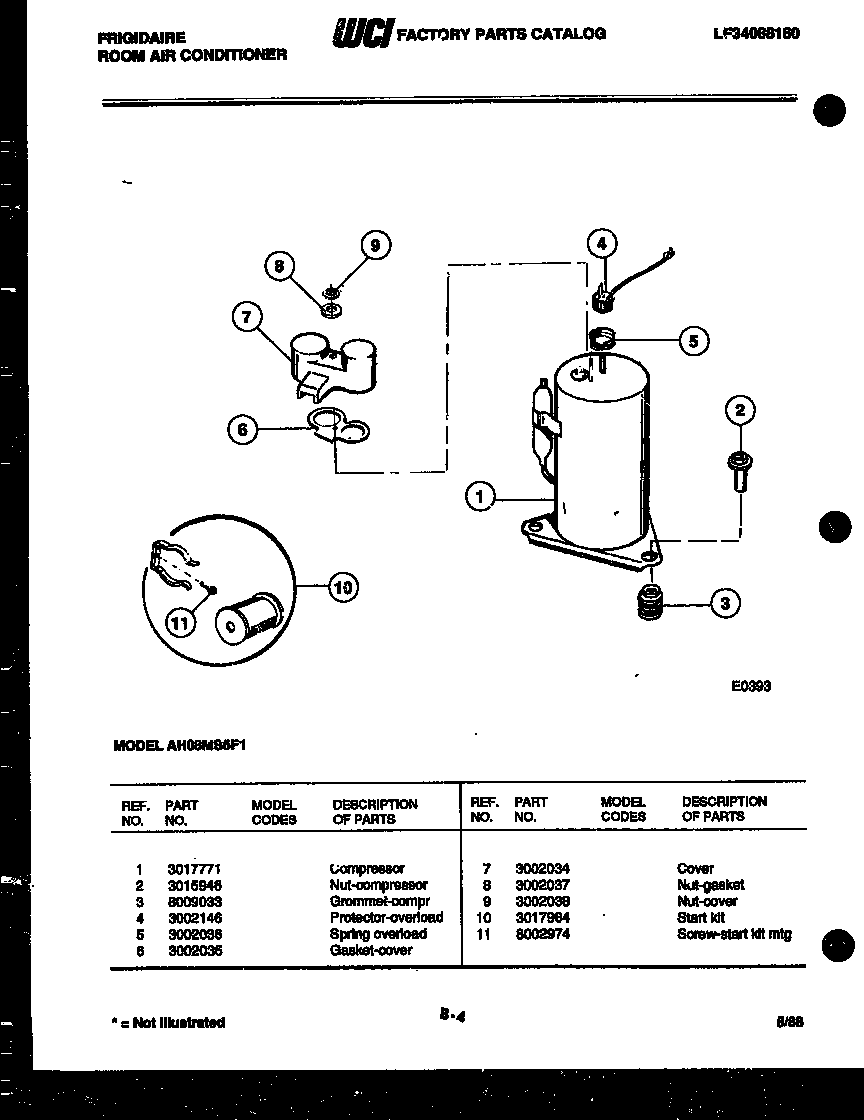

AH08MS5F1 04 – COMPRESSOR PARTS
Products
| Position | Product |
|---|---|
| 1 | WCI 3017771 |
| 2 | NUT |
| 3 | GROMMET (3) |
| 4 | WCI 3002146 |
| 5 | WCI 3002036 |
| 6 | GASKET |
| 7 | COVER-TERMINAL |
| 8 | GASKET-NUT |
| 9 | WCI 3002038 |
| 10 | START KIT |
| 11 | SCREW |
