AH095J2T2 04 – CONTROLS

AH095J2T2 04 – CONTROLS

Written by

in

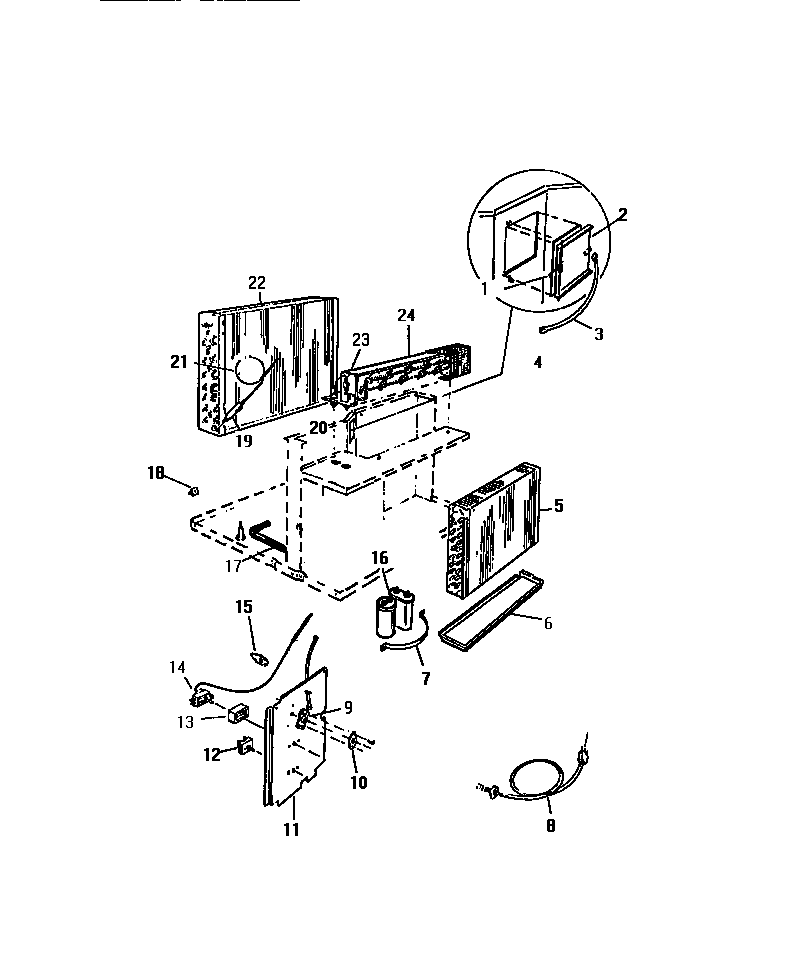

AH095J2T2 04 – CONTROLS

Products

Position	Product
1	SPRING, VENT DOOR
2	WCI 2627D77H02
3	CABLE, VENT
4	WCI A305901
5	WCI A409707
6	TRAY EVAP.
7	WCI A116301
8	WCI A435021
9	WCI A333708
10	SPRING, DETENT
11	WCI A424022
12	WCI A262110
13	WCI A250405
14	CONTROL
15	WCI A310003
16	CAPACITORS COMP.
17	HOSE, DRAIN
18	WCI C313218
19	WCI A265301
20	WCI A122502
21	TUBE CAPILLARY CUT TO 35“
22	WCI A406701
23	WCI A286120
24	WCI A430610
