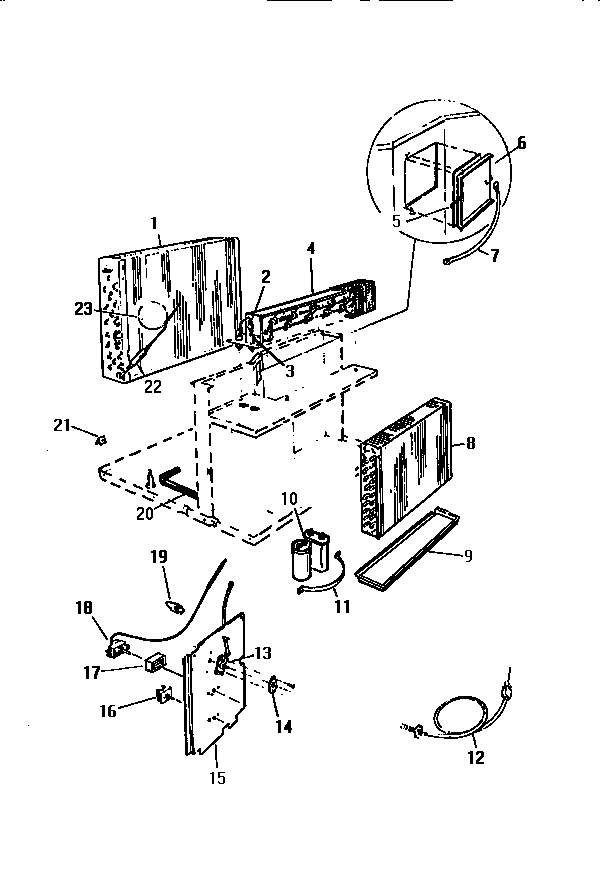

AH09EH2T2 04 – CONTROLS

Products

Position	Product
1	WCI 2627D49A10
2	WCI A286126
3	WCI A122502
4	WCI A430608
5	SPRING, VENT DOOR
6	WCI 2627D77H01
7	CABLE, VENT
8	WCI A409702
9	WCI A428901
10A	WCI 187C527H04
10	CAPACITOR, COMPRESSOR
11	WCI A116301
12	WCI A435021
13	DETENT, BASE
14	SPRING, DETENT
15	WCI A424010
16	SWITCH, SELECTOR
18	CONTROL
19	WCI A310003
20	HOSE, DRAIN
21	WCI C313218
22	WCI A265301
23	TUBE CAPILLARY CUT TO 35“
