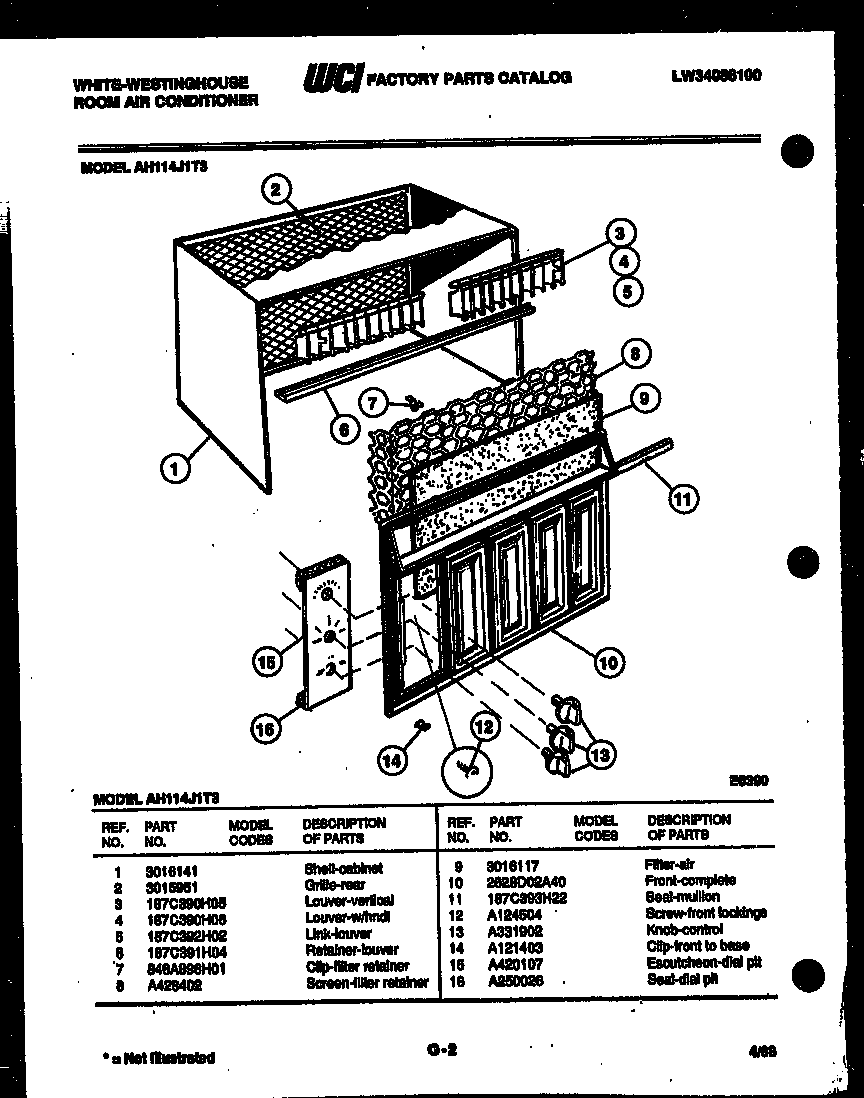

AH114J1T3 02 – CABINET PARTS

Written by

Products

Position	Product
1	WCI 3016141
2	GRILL-REAR
3	LOUVER VERT
4	LOUVR.-VERT. W/ HANDLE
5	WCI 187C392H02
6	WCI 187C391H04
7	CLIP, FILTER
8	SCREEN-FILTER (NON-ILLUSTRATED)
9	WCI 3016117
10	WCI 2628D02A40
11	WCI 187C393H22
12	SCREW-FRNT LOCKING (NON-ILLUSTRATED)
13	KNOB
14	WCI A121403
15	WCI A420107
16	SEAL
