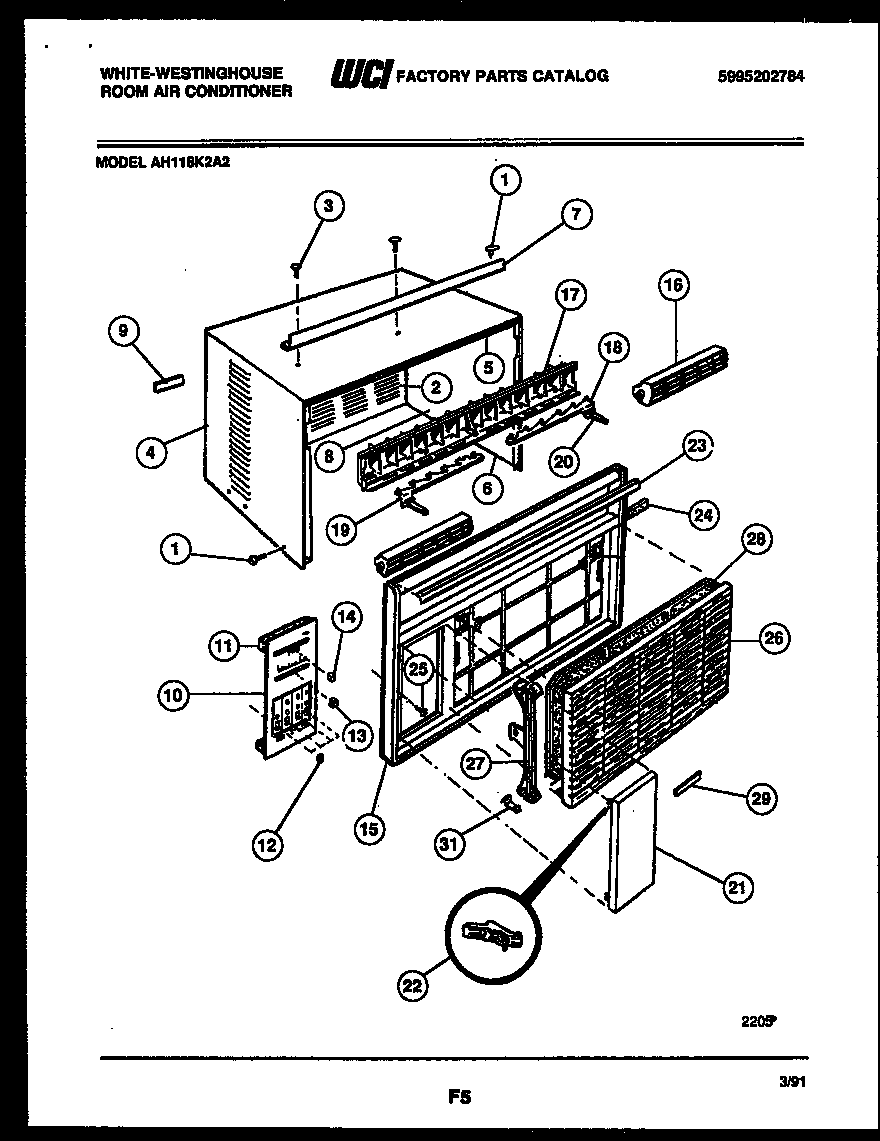

AH118K2A2 02 – CABINET PARTS

Products

Position	Product
1	SCREW-STRAP FAN
2	WCI 5308006428
3	WCI 08016237
4	WCI 3017288
5	SEAL WRAPPER FRONT
6A	WCI 08009359
6	WCI 08009358
7	SUPPORT-TOP
8	WCI 5303206876
9	NAMEPLATE-GRILLE (NON-ILLUSTRATED)
10	ESCUTCHEON-PLATE DIAL
11	SEAL-DIAL PLATE
12	WCI 5308016116
13	WCI 5303002189
14A	WCI 5300462706
14	WCI 5308017143
15	WCI 5303271449
16	FRAME-HORIZONTAL LOUVER
17	VERT. LOUVER & LINK ASSY.
18	LINK - VERT LOUVER RH
19	LINK VERTICAL LOUVER LH
20	WCI 5303001844
21	WCI 5303201645
22	HINGE - DOOR
23	TRIM-FRONT
24	WCI 5300301157
25	SCREW-FRONT
26	WCI 5300454703
27	TRACK-FILTER (NON-ILLUSTRATED)
28	FILTER-AIR
29	WCI 5300138101
29A	BRACKET-FRONT (NON-ILLUSTRATED)
31	CLIP-FRONT TO BASE
