AH11E12D3BK1 ROOM AIR CONDITIONER

Products

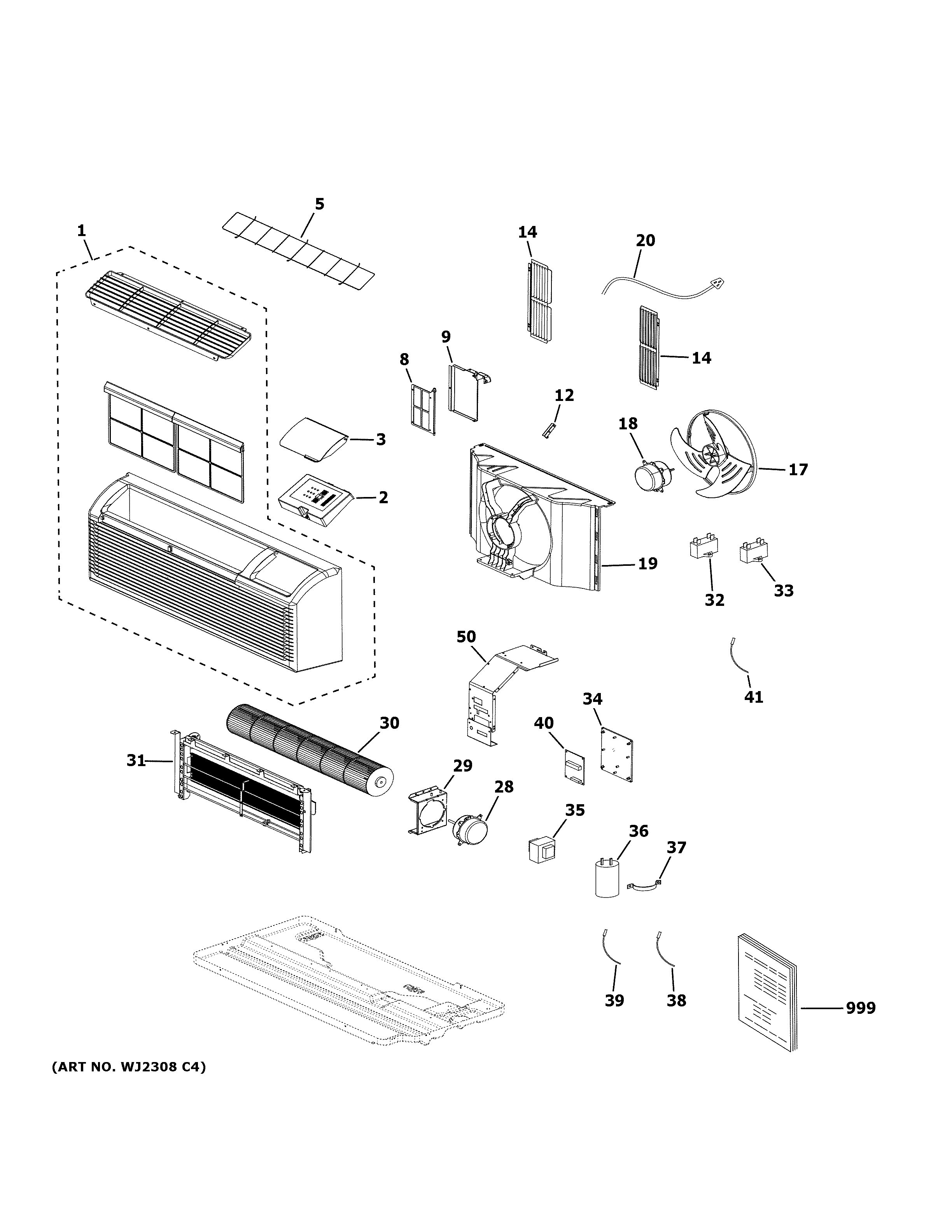

Position	Product
1	WP71X24798 GE Room Front Assembly
2	WP76X24862 GE User Interface Housing Assembly
3	WP76X24861 GE Housing Cover Unit
5	WP71X24879 GE Wire Grid
8	WP85X24872 GE Vent Door Filter
9	WP76X24875 GE Vent Door Assembly
12	WP65X24876 GE Vent Door Rod
14	WP71X24878 GE Horizontal Louver
17	WP73X24870 GE Outdoor Fan
18	WP94X24888 GE Outdoor Fan Motor
19	WP76X24871 GE Outdoor Fan Shroud
20	POWER CORD ASSEMBLY
28	WP94X24863 GE Indoor Fan Motor
29	WP65X24877 GE Indoor Fan Motor Bracket
30	WP73X24869 GE Indoor Fan
31	WP27X24885 GE Heater
32	WP20X24882 GE Fan Motor Capacitor 3µF/450V
33	WP20X24881 GE Fan Motor Capacitor 1 µF 450V
34	MAIN CONTROL BOARD FRAME
35	WP27X24868 GE Transformer Linear
36	COMPRESSOR CAPACITOR
37	CAPACITOR CLAMP
38	WP26X24865 GE Indoor Thermistor
39	WP26X24866 GE Thermistor
40	WP26X24887 GE Main Control Board
41	WP26X24867 GE Outdoor Thermistor Assembly
50	WP26X26613 GE Thermostat Board
999	PM MINI MANUAL
999	PM OWNERS MANUAL
