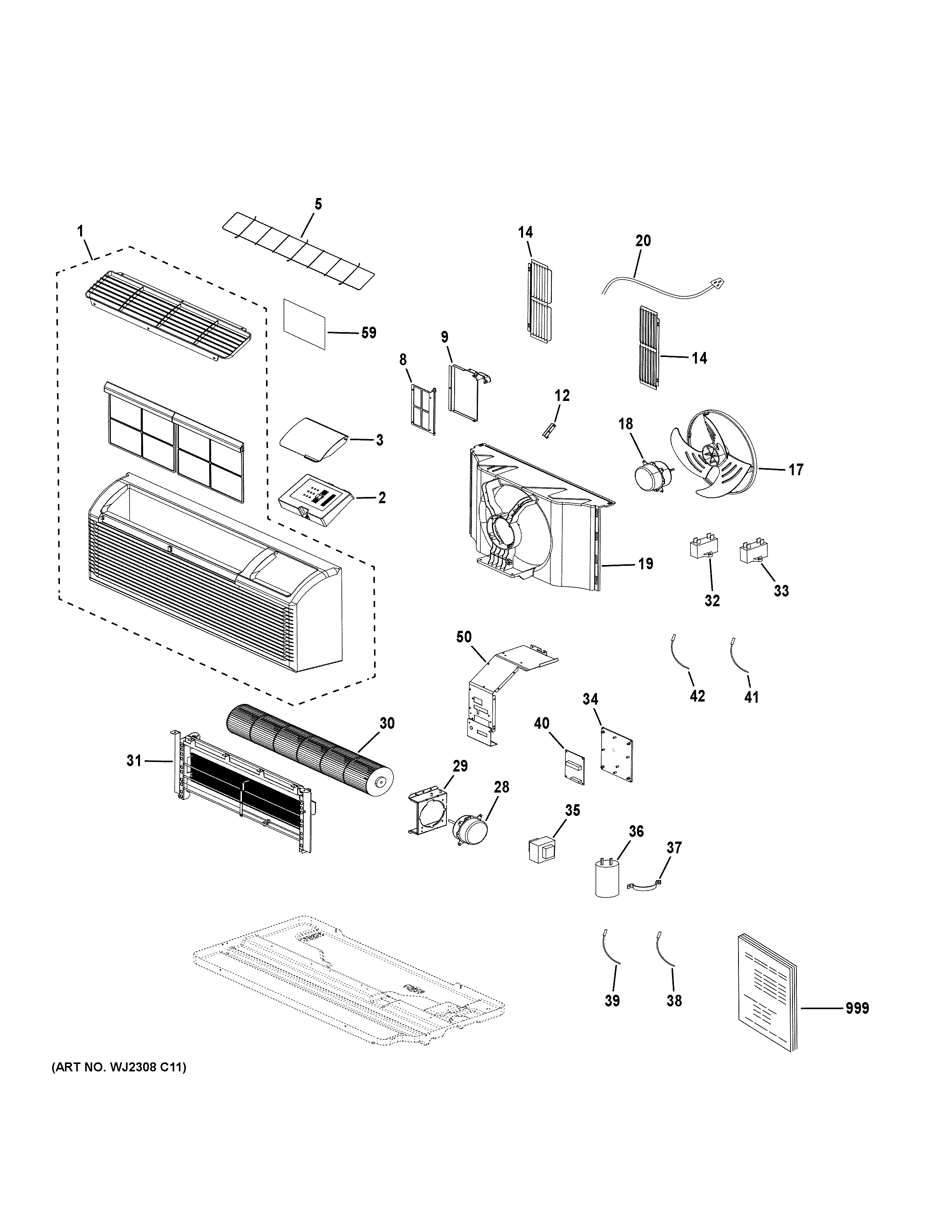

AH11E12D3BK2 ROOM AIR CONDITIONER

Products

Position	Product
1	WP71X24798 GE Room Front Assembly
2	WP76X28021 GE User Interface Housing Assembly
3	UI HOUSING COVER
5	WP71X24879 GE Wire Grid
8	WP85X24872 GE Vent Door Filter
9	WP76X24875 GE Vent Door Assembly
12	WP65X24876 GE Vent Door Rod
14	WP71X24878 GE Horizontal Louver
17	WP73X24870 GE Outdoor Fan
18	WP94X27474 GE Outdoor Fan Motor
19	WP76X24871 GE Outdoor Fan Shroud
20	WP35X27492 GE Power Cord Assembly
28	WP94X27475 GE Indoor Fan Motor
29	WP65X24877 GE Indoor Fan Motor Bracket
30	WP73X24869 GE Indoor Fan
31	WP27X24885 GE Heater
32	WP20X24882 GE Fan Motor Capacitor 3µF/450V
33	WP20X24881 GE Fan Motor Capacitor 1 µF 450V
34	WP26X27485 GE Main Control Board
35	WP27X24868 GE Transformer Linear
36	COMPRESSOR CAPACITOR
37	CAPACITOR CLAMP
38	WP26X27478 GE Thermistor
39	PIPE THERMISTOR
40	WP26X27487 GE Thermostat Board
41	WP26X27479 GE Thermistor
42	DISCHARGE THERMISTOR
50	MAIN CONTROL BOARD FRAME
59	WP71X29273 GE Wall Thermostat for Hotpoint Use
999	PM MINI MANUAL AND WIRING
999	PM OWNERS MANUAL
