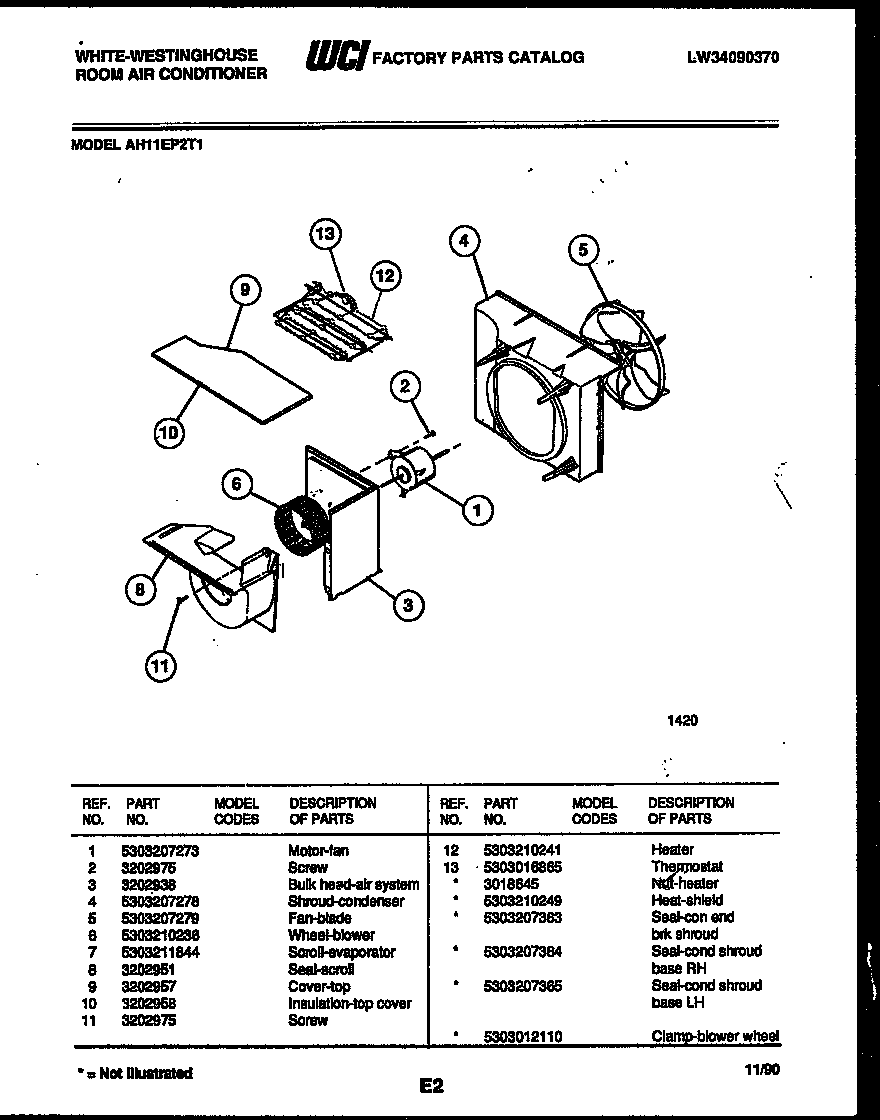

AH11EP2T1 04 – AIR HANDLING PARTS

AH11EP2T1 04 – AIR HANDLING PARTS

Written by

in

AH11EP2T1 04 – AIR HANDLING PARTS

Products

PositionProduct
*39693HEAT SHIELD EVAP TRAY (NON-ILLUSTRATED)
*39694SEAL-COND SHROUD BASE (LH)
*39693SEAL-COND SHROUD BASE (RH)
*39693SEAL-CON END BRK SHROUD
*396935303212918 Frigidaire Refrigerator Cont
*39694WCI 5303012110
1WCI 5303207273
3BULKHEAD-AIR SYSTEM
4WCI 5303207278
5FAN-BLADE-W/ CLAMP
6WCI 5303210236
7WCI 5303211844
8SEAL-CONDENSER BASE (NON-ILLUSTRATED)
9WCI 3202957
10PAD – COVER
11131202300 Frigidaire Screw
12WCI 5303210241
13THERMOSTAT-HEATER
