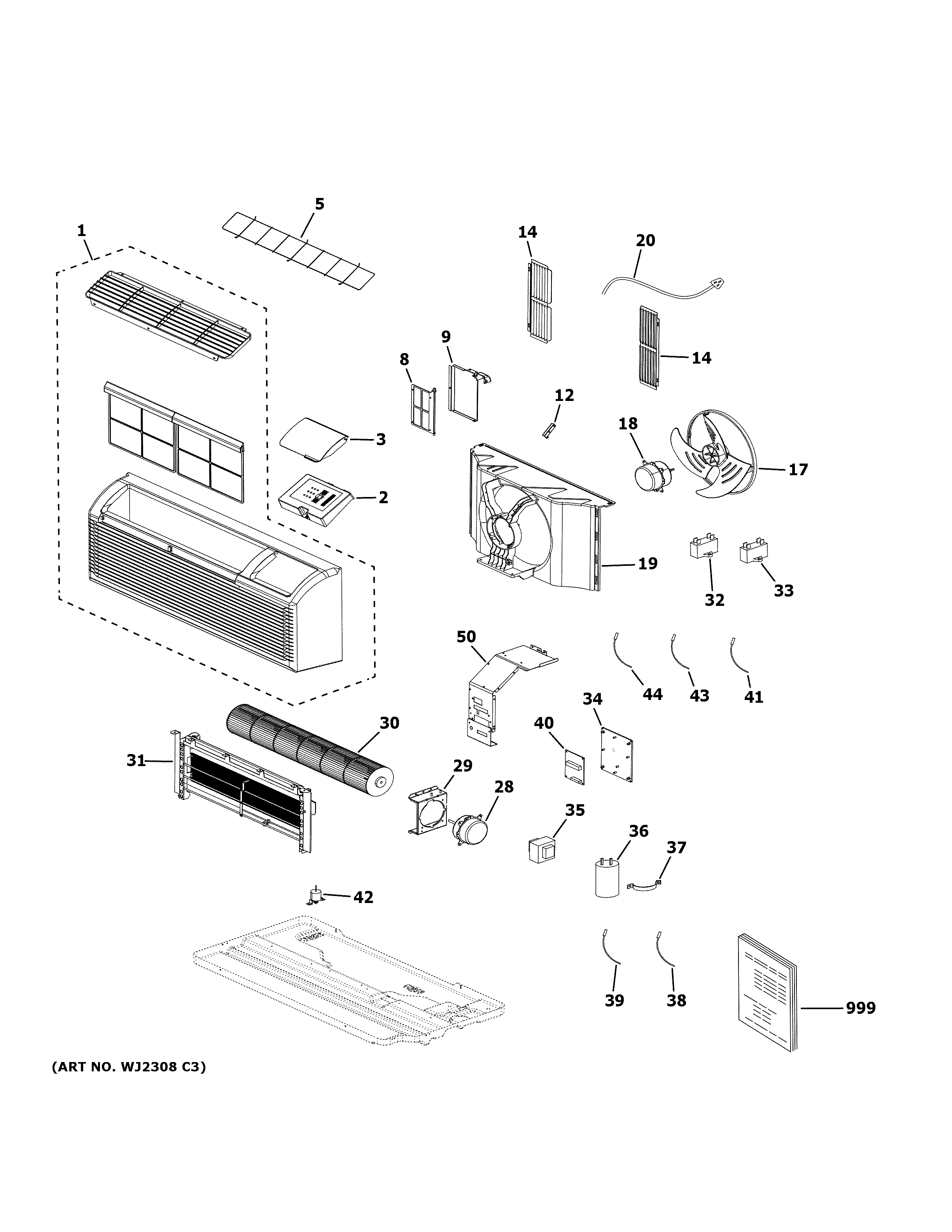

AH11H09D3BK1 ROOM AIR CONDITIONERadmin2025-04-26T08:38:09+00:00AH11H09D3BK1 ROOM AIR CONDITIONER ProductsPositionProduct1WP71X24798 GE Room Front Assembly2WP76X24862 GE User Interface Housing Assembly3WP76X24861 GE Housing Cover Unit5WP71X24879 GE Wire Grid8WP85X24872 GE Vent Door Filter9WP76X24875 GE Vent Door Assembly12WP65X24876 GE Vent Door Rod14WP71X24878 GE Horizontal Louver17WP73X24870 GE Outdoor Fan18WP94X24864 GE Outdoor Fan Motor19WP76X24871 GE Outdoor Fan Shroud20POWER CORD ASSEMBLY28WP94X24863 GE Indoor Fan Motor29WP65X24877 GE Indoor Fan Motor Bracket30WP73X24869 GE Indoor Fan31WP27X24885 GE Heater32WP20X24882 GE Fan Motor Capacitor 3µF/450V33WP20X24881 GE Fan Motor Capacitor 1 µF 450V34MAIN CONTROL BOARD FRAME35WP27X24868 GE Transformer Linear36WP20X24883 GE Compressor Capacitor37CAPACITOR CLAMP38WP26X24865 GE Indoor Thermistor39WP26X24866 GE Thermistor40WJ26X24901 GE Main Control Board41WP26X24867 GE Outdoor Thermistor Assembly42WP26X24900 GE Drain Valve43WP26X24898 GE Indoor Thermistor44WP26X24899 GE Thermistor50WP26X26614 GE Thermostat Board999PM MINI MANUAL999PM OWNERS MANUAL
