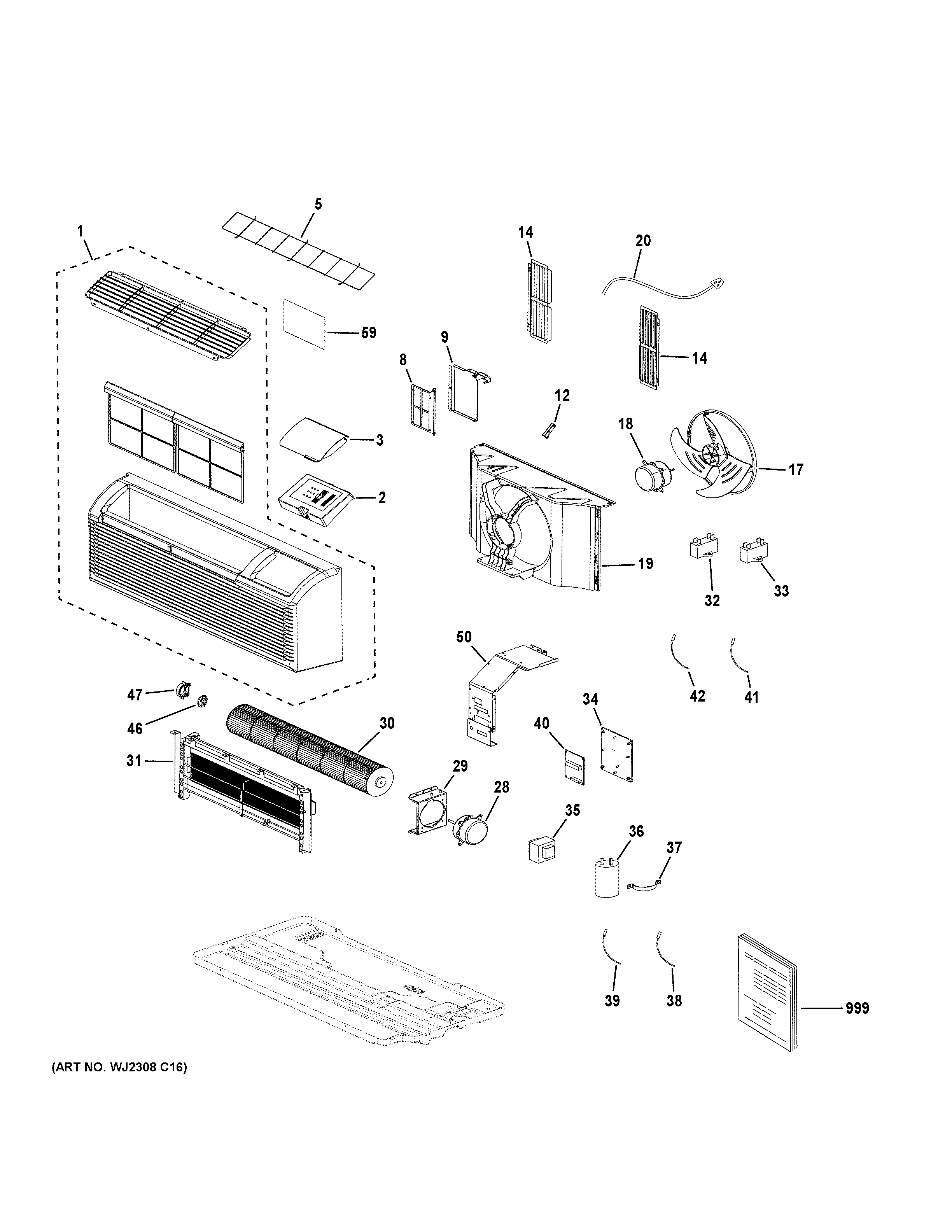

AH12E09D3BK1 ROOM AIR CONDITIONERadmin2025-04-26T08:38:22+00:00AH12E09D3BK1 ROOM AIR CONDITIONER ProductsPositionProduct1WP71X24798 GE Room Front Assembly2UI HOUSING ASSEMBLY3UI HOUSING COVER5WP71X24879 GE Wire Grid8WP85X24872 GE Vent Door Filter9WP76X24875 GE Vent Door Assembly12WP65X24876 GE Vent Door Rod14WP71X24878 GE Horizontal Louver17WP73X24870 GE Outdoor Fan18WP94X27474 GE Outdoor Fan Motor19WP76X24871 GE Outdoor Fan Shroud20WP35X27492 GE Power Cord Assembly28INDOOR FAN MOTOR29WP65X33477 GE Indoor Fan Motor Bracket30WP73X24869 GE Indoor Fan31WP70X33473 GE Heater 3500W32WP20X24882 GE Fan Motor Capacitor 3µF/450V33WP20X24881 GE Fan Motor Capacitor 1 µF 450V34MAIN CONTROL BOARD35WP27X24868 GE Transformer Linear36WP20X24883 GE Compressor Capacitor37WP01X27484 GE Clamp Capacitor38WP26X27479 GE Thermistor39DISCHARGE THERMISTOR40WP26X27487 GE Thermostat Board41WP26X27478 GE Thermistor42PIPE THERMISTOR46FAN BEARING47BEARING BRACKET50MAIN CONTROL BOARD FRAME59WP71X29273 GE Wall Thermostat for Hotpoint Use999PM MINI MANUAL AND WIRING999PM OWNERS MANUAL
